MAIN FEATURES

  • Available with module 4 or 6 pinion.
  • Ready for installation of magnetic limit switches.
  • Control board with terminal blocks, display and storage for up to 250 users.
  • The safety inputs can be configured to directly control the 8k2Ω resistive sensitive-safety edges.
  • Self-diagnosing safety devices.
  • 230 - 400 V AC three-phase version for 2200 Kg model.
  • Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.
  • Seven versions: for 800 kg and 20 meters, up to 220 kg and 23 meters.
  • The movement speed is 10.5 m/minute.
  • The operator can be managed from a remote location via app through the CAME GATEWAY.
  • Available with module 4 and 6 pinion to ensure sturdiness and better quality of movement.
  • Built-in ZBKN control board with display and memory roll, for easier programming and start-up.
  • It handles up to 25 Rolling Code users.
  • Designed to fit magnetic limit-switches.
  • Self-diagnosing safety devices.
  • It is set up to connect to the wireless Rio safety system.
  • Compatible with CAME KEY.

Solution for large sliding gates

  • Max. length of leaf (m)20
  • Max. weight of leaf (kg)800
  • Pinion module4
  • Max. length of leaf (m)20
  • Max. weight of leaf (kg)1200
  • Pinion module4
  • Max. length of leaf (m)20
  • Max. weight of leaf (kg)1800
  • Pinion module4
  • Max. length of leaf (m)20
  • Max. weight of leaf (kg)2200
  • Pinion module6
  • Max. length of leaf (m)20
  • Max. weight of leaf (kg)2200
  • Pinion module4
  • Max. length of leaf (m)23
  • Max. weight of leaf (kg)2200
  • Pinion module6
MODELS 801MS-0071 801MS-0081 801MS-0091 801MS-0101 801MS-0121 801MS-0131
Protection rating (IP) 44 44 44 44 44 44
Power supply (V - 50/60 Hz) 230 AC 230 AC 230 AC 230 AC 230 AC 230/ 400 V AC THREE PHASE
Power supply to motor (V) 230 AC 230 AC 230 AC 230 AC 230 AC 230/ 400 V AC THREE PHASE
Absorption (A) 4,5 3,3 4,2 5,1 5,1 1,5
Power (W) 580 540 660 660 580 520
Manouvering speed (m/min) 10,5 10,5 10,5 10,5 10,5 10,5
Cycles/Hour 14 14 14 14 22 14
Thrust (N) 800 850 1150 1500 1500 1650
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55
Motor’s heat protection (°C) 150 150 150 150 150 150

OUR RANGE

Complete operators with 230 V C gearmotor

801MS-0071

BKS08ALS - Automazione completa di scheda elettronica con display di programmazione, decodifica radio incorporata e finecorsa meccanici per cancelli scorrevoli fino a 800 kg e 20 m di lunghezza.

Download FASCICOLO BKS08ALS/BKS12ALS/BKS18ALS/BKS22ALS MULTI4 A4 (IT, EN, FR, RU)
Download BK conformity declaration (CE)
Download BK conformity declaration (CE ROHS)

801MS-0081

BKS12ALS - Automazione completa di scheda elettronica con display di programmazione, decodifica radio incorporata e finecorsa meccanici per cancelli scorrevoli fino a 1200 kg e 20 m di lunghezza.

Download FASCICOLO BKS08ALS/BKS12ALS/BKS18ALS/BKS22ALS MULTI4 A4 (IT, EN, FR, RU)
Download BK conformity declaration (CE ROHS)

801MS-0091

BKS18ALS - Automazione completa di scheda elettronica elettronica con display di programmazione, decodifica radio incorporata e finecorsa meccanici per cancelli scorrevoli fino a 1800 kg e 20 m di lunghezza.

Download FASCICOLO BKS08ALS/BKS12ALS/BKS18ALS/BKS22ALS MULTI4 A4 (IT, EN, FR, RU)
Download BK conformity declaration (CE ROHS)

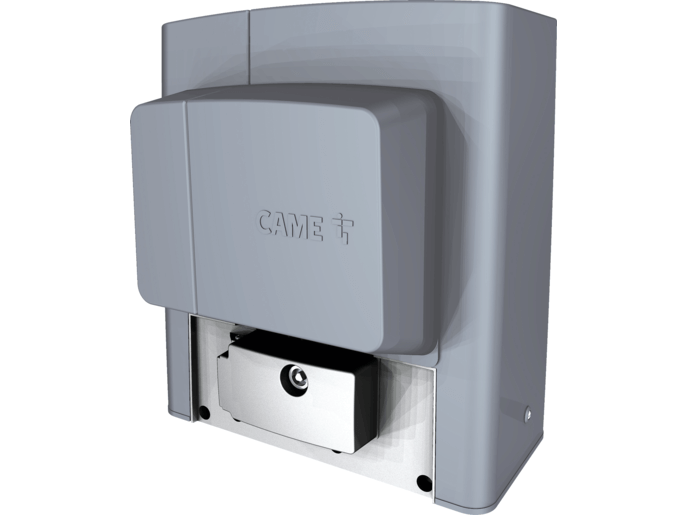

801MS-0101

BKS22ALS - Automazione completa di scheda elettronica con display di programmazione, decodifica radio incorporata e finecorsa meccanici per cancelli scorrevoli fino a 2200 kg e 20 m di lunghezza.

Download FASCICOLO BKS08ALS/BKS12ALS/BKS18ALS/BKS22ALS MULTI4 A4 (IT, EN, FR, RU)
Download BK conformity declaration (CE ROHS)

801MS-0121

BKS22ALE - Automazione completa di scheda elettronica con display grafico per la programmazione delle funzioni, dispositivo per il controllo del movimento e rilevazione dell’ostacolo per cancelli scorrevoli fino a 2200 kg e 20 m di lunghezza.

Download BK conformity declaration (CE)

230 - 400 V AC three-phase gearmotors

801MS-0131

BKS22TLS - Motoriduttore per cancelli scorrevoli fino a 2200 kg e 23 m di lunghezza.

Download BK conformity declaration (CE)

230 - 400 V AC three-phase control panels

002ZT6

Control panel with self-diagnosing safety-devices.

Download FASCICOLO ZT6 MULTI (IT, EN, FR, RU)

002ZT6C

Control panel with safety stop and buttons, plus self-diagnosing safety-devices.

Download FASCICOLO ZT6 MULTI (IT, EN, FR, RU)

Accessories for: 801MS-0070 - 801MS-0080 - 801MS-0090 - 801MS-0100 - 801MS-0110 - 801MS-0120

001RSDN002

Magnetic limit-switch system for operators working in critical climatic conditions.

    Accessories

    001R001

    Lock cylinder with DIN key.

    Download FASCICOLO R001 MULTI (IT, EN, FR, DE, ES, NL)

      001B4353

      Chain drive device.

      Download FASCICOLO B4337 - B4353 MULTI (IT, EN, FR, DE, ES, NL)

        009CCT

        Simple 1/2” chain.

          009CGIU

          Joint for 1/2” chain.

            001RGP1

            Green Power module to disconnect the transformer for energy saving while the operator is not in use.

            Download MULTI4A A3 RGP1 FOLDER (IT, EN, FR, RU)
            Download RGP1 conformity declaration (CE)

              001R700

              Control board for decoding and access-control management via transponder selector.

                001R800

                Control board for decoding and access-control management via keypad selectors.

                Download R800 conformity declaration (CE)

                  002RSE

                  Interface card for controlling two operators or for enabling the Came Remote Protocol.

                  Download FASCICOLO RSE MULTI (IT, EN, FR, DE, ES, NL)
                  Download RSE conformity declaration (CE)

                    Racks

                    009CGZ

                    Module 4 rack made of 22 x 22 mm galvanized steel.

                      009CGZS

                      Module 4 rack made of 30 x 8 mm galvanized steel with fastening holes and distancers.

                        009CGZ6

                        Galvanized rack module 6 in 30 x 30 laminated steel.
