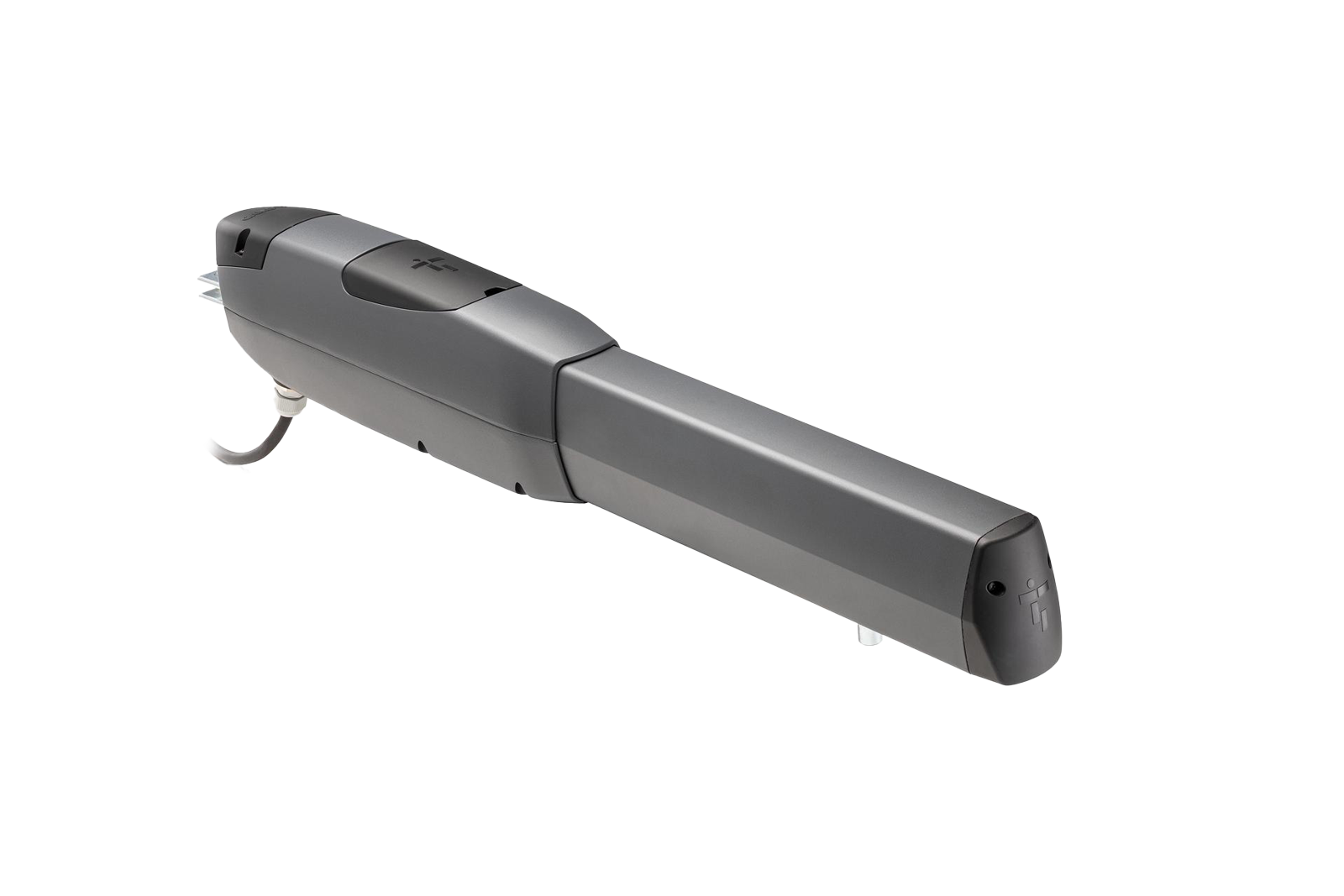

230 V and 24 V motor for swing gates for residential and industrial installations with C-Max up to 155 mm and gates up to 5 m or 1000 kg. The new ATI motors are designed to open a gate in up to 13 seconds per 90°, featuring a modern and robust design, thanks to their die-cast aluminium body and a worm gear transmission system with planetary gear reducer, which guarantees excellent performance with a thrust of up to 4000 N.
ATI is the ideal solution for any residential or industrial setting, thanks to the version for gates with up to 5 meters leaves. Thanks to its design, it can be installed on posts of various shapes and C-MAX up to 155 millimeters.
The robust mechanical limit switches are quick and easy to adjust. The metal elements placed directly on the worm screw allow you to precisely adjust the maximum opening or closing point, ensuring maximum reliability. The operation is extremely simple and quick, as you simply remove the aluminum casing and fix the limit switches in the desired position.
The new ATI range is rigorously tested to meet the European standard EN 12453, which ensures compliance with the safety and performance requirements for automatic closing systems that interact with people. This standard ensures robust user protection by regulating impact forces.
This automation is compatible with CAME CONNECT, allowing connection to the Cloud via a gateway such as Ethernet, Wi-Fi, or GSM. CAME CONNECT offers significant advantages to both installers and end users. Installers can use the CAME SetUp Pro app to configure and monitor systems locally or remotely, for real-time maintenance and troubleshooting, allowing for quick intervention when necessary. End users can enjoy control and convenience through the CAME Automation app, accessing their automation from anywhere.
FIND OUT MORE ABOUT CAME CONNECT

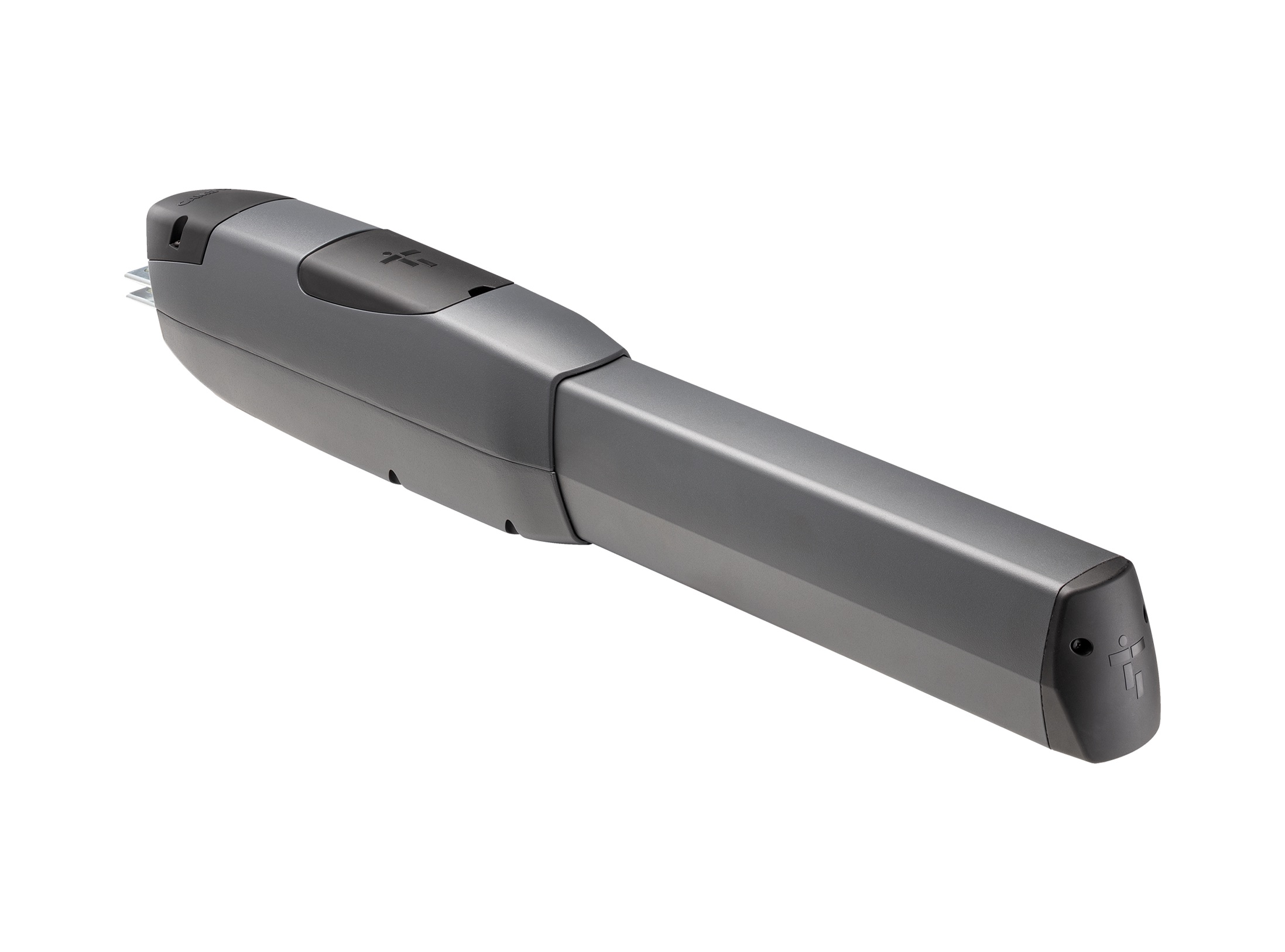

230V ATI - 3m
Max. leaf length: 3 m
Max. leaf weight: 400 kg
Opening speed: 13 s/90°

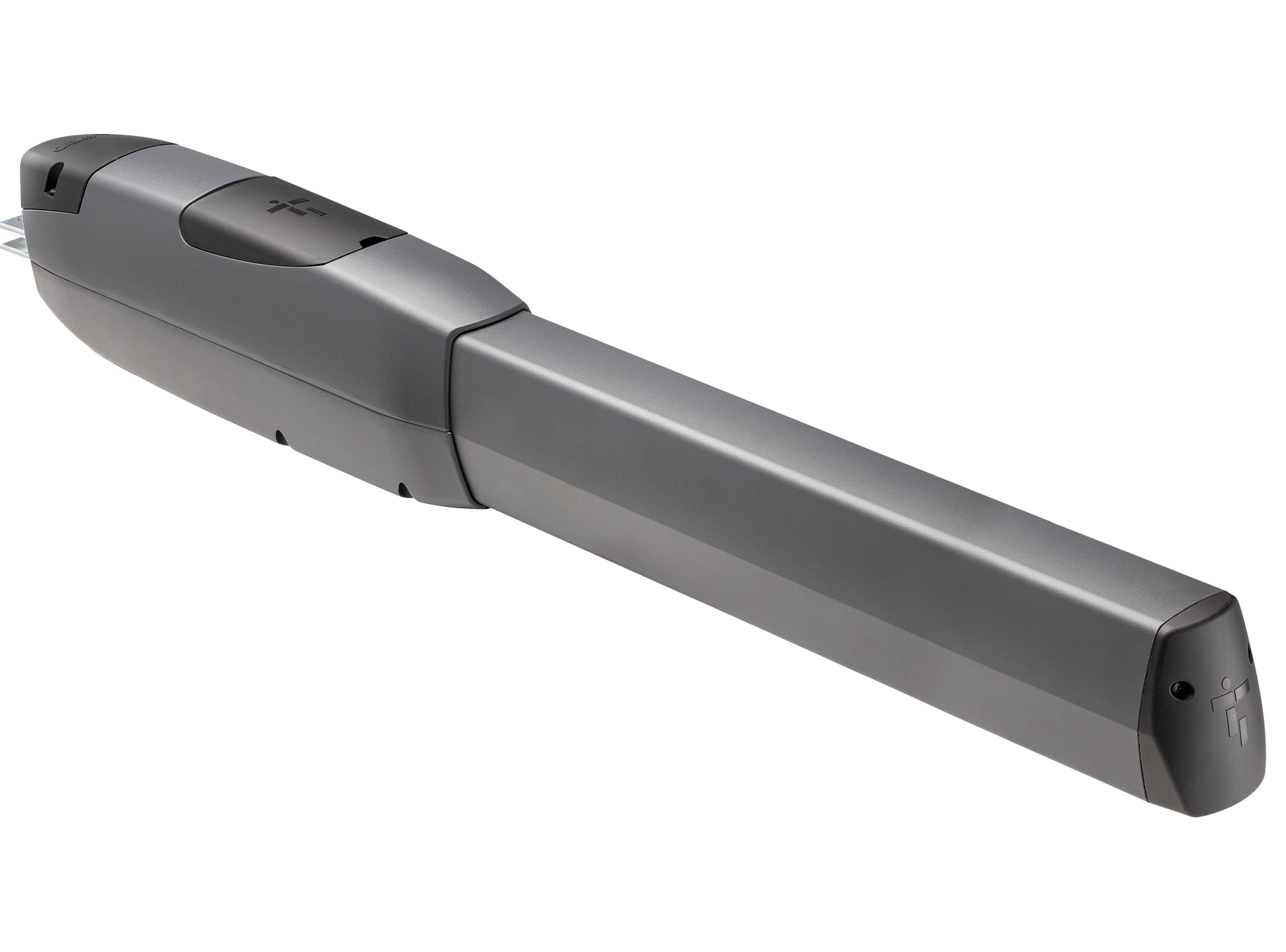

230V ATI - 5m
Max. leaf length: 5 m
Max. leaf weight: 1000 kg
Opening speed: 19 s/90°
24v ATI - 3m
Max. leaf length: 3 m
Max. leaf weight: 400 kg
Opening speed: 13 s/90°
24v ATI - 5m
Max. leaf length: 5 m
Max. leaf weight: 1000 kg
Opening speed: 19 s/90°
| Models | 801MP-0190 | 801MP-0200 | 801MP-0210 | 801MP-0220 |
|---|---|---|---|---|
| Max. length of leaf (m) | 3 | 5 | 3 | 5 |
| Max. weight of leaf (kg) | 800 | 1000 | 800 | 1000 |
| Max. door length / weight | 2 m / 800 kg | 2 m / 1000 kg | 2 m / 800 kg | 2 m / 1000 kg |
| 2.5 m / 600 kg | 2.5 m / 800 kg | 2.5 m / 600 kg | 2.5 m / 800 kg | |
| 3 m / 400 kg | 3 m / 600 kg | 3 m / 400 kg | 3 m / 600 kg | |
| - | 4 m / 500 kg | - | 4 m / 500 kg | |
| - | 5 m / 400 kg | - | 5 m / 400 kg |
| Models | 801MP-0190 | 801MP-0200 | 801MP-0210 | 801MP-0220 |
|---|---|---|---|---|
| Power supply to motor (V) | 230 AC 50/60 Hz | 230 AC 50/60 Hz | 24 DC | 24 DC |
| Power (W) | 220 | 220 | 100 | 100 |
| Current consumption (A) | 1.1 | 1.1 | 8 | 8 |
| Force (N) | 400 ÷ 4000 | 400 ÷ 4000 | 400 ÷ 4000 | 400 ÷ 4000 |
| Manoeuvring time at 90° (s) | 13 | 19 | 13 | 19 |
| IP Protection rating | 54 | 54 | 54 | 54 |
| Operating temperature (°C) | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 |
| Motor’s heat protection (°C) | 150 | 150 | - | - |
| Length (mm) | 775 | 975 | 775 | 975 |
| Weight (kg) | 8.5 | 8.5 | 8.5 | 8.5 |
