Brushless Motor

The DC motor with brushless technology ensures reduced noise and low maintenance costs. It also allows precise control of movements and torque at different speeds.

High reliability for at least 10 million cycles

Tested for continuous use, suitable for intensive duty contexts, it's the perfect solution for parking systems

LED Lighting

On the crown and on the boom there is a coloured LED lighting system (red and green) with traffic light function, which can also be integrated with parking systems.

ADDITIONAL FUNCTIONS

Advanced Electronics

The electronic board is placed on the upper crown to allow convenient and easy intervention.

It is equipped with a graphic display with configuration wizard, 3 safety inputs that can also be configured as resistive and a USB port for updating and saving the settings.

FIND OUT MORE

Articulated Arm

The special accessory for installations in rooms with low ceiling, where there is not enough space for the boom in a completely open position.

CAME Connect

The connection to the CAME Cloud enables remote control of the operators and complete customer management. Thanks to CAME Connect it is possible to offer an efficient and continuous maintenance service, a remote assistance support and a rapid intervention in case of malfunction.

FIND OUT MORE ABOUT CAME CONNECT

MAIN FEATURES

  • Brushless motor for high performance and silent operation.
  • Continuous use tested for 10 million cycles (MCBF - mean cycle between failures).
  • Modern design with galvanized steel cabinet with rough finish.
  • Extended range power supply 120 - 230 V AC for energy saving in stand-by mode.
  • Boom casing for protection against shearing in opening and closing.
  • Available with high visibility red/green LEDs on the crown and on both sides of the boom.
  • Available accessory for boom safety release in case of impact for high traffic applications.
  • Control board with display.
  • Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.

Specific solution for parking facilities and intensive duty cycles

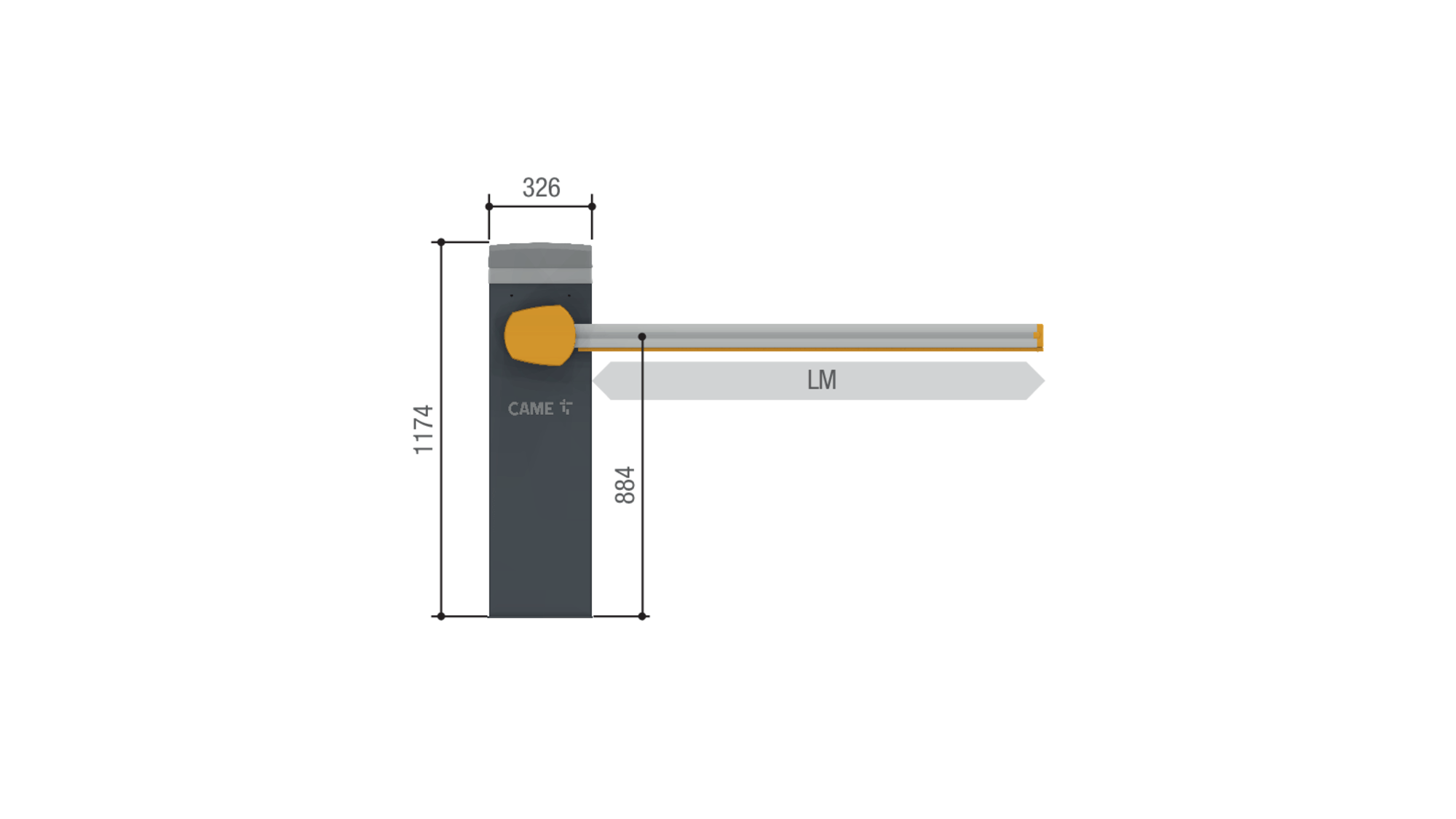

  • Max. net clearance width (m)3,8
MODELS 803BB-0120
Protection rating (IP) 54
Power supply (V - 50/60 Hz) 100 AC ÷ 240 AC
Power supply to motor (V) 36 DC
Power (W) 270
Opening time at 90° (s) 1 ÷ 2
Duty/cycle (%) CONTINUOUS SERVICE
Operating temperature (°C) -20 ÷ +55 (-40 with item 001PSRT)

OUR RANGE

Barriers with Brushless motor and built-in control panel

803BB-0120

GPX40MGS - Barriera automatica con motoriduttore brushless irreversibile; armadio in acciaio zincato e verniciato.

Download FASCICOLO GPX40MGS - GPX40MGP MULTI4A A4 (IT, EN, FR, RU)
Download GARD PX conformity declaration (CE)

Accessories for: 803BB-0120

002RSE

Interface board for the management of two systems or for enabling the CRP protocol.

Download FASCICOLO RSE MULTI (IT, EN, FR, DE, ES, NL)
Download RSE conformity declaration (CE)

    001R700

    Control board for decoding and access-control management via transponder selector.

      001R800

      Control board for decoding and access-control management via keypad selectors.

      Download R800 conformity declaration (CE)

        Balancing springs

        001G02040

        Balancing spring Ø 40 mm.

          001G04060

          Balancing spring Ø 50 mm.

            001G06080

            Balancing spring Ø 55 mm.

              Accessories for: 803XA-0050 - 803XA-0051

              803XA-0020

              Red/green LED strips for booms up to 4-m long.
