VR

Modular entry panel with UK made Vandal Resistant facias

All MTM's functional modules can be mounted behind flat customised plaques, by simply adding a plastic adapter to ensure IP54 level protection and vandalism protection. You can also use customised buttons via special expansion electronics.

The VR range

A key feature of VR is the durability and strength of the materials. It uses the same electronic modules and easy to fit functionality as the standard MTM however, it uses an IK09 rated vandal resistant marine grade stainless steel manufactured in the UK.

Vandal resistant entry panels are available in a number of finishes such as Stainless Steel, Highly Polished Steel, Brass and can be custom powder coated in any RAL colour of your choice.

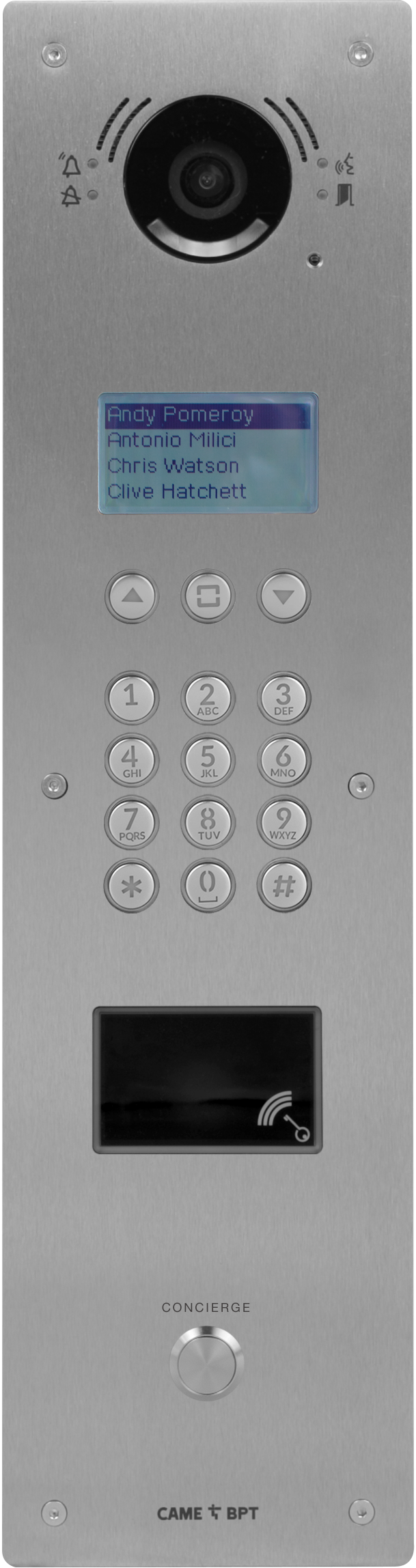

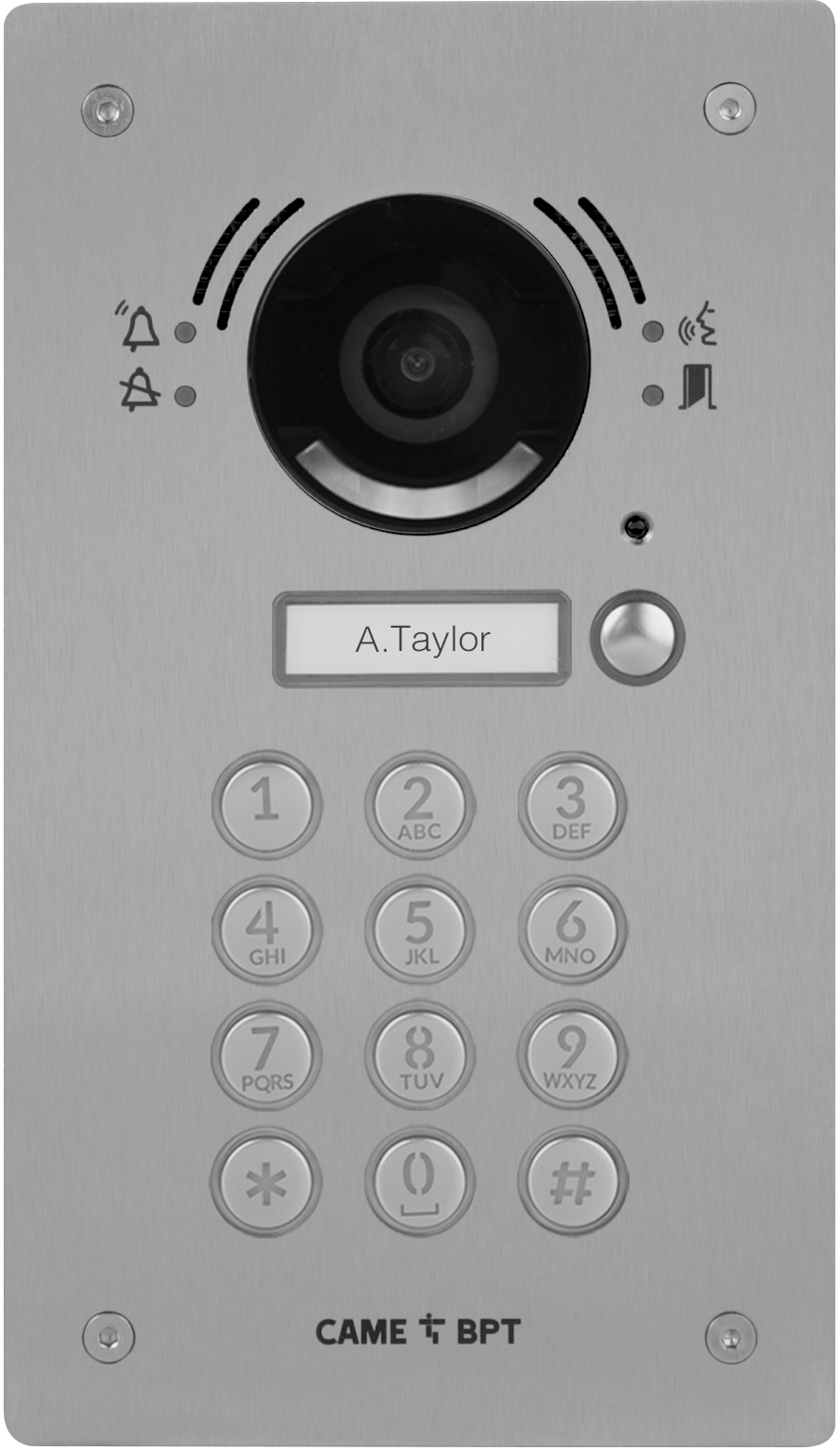

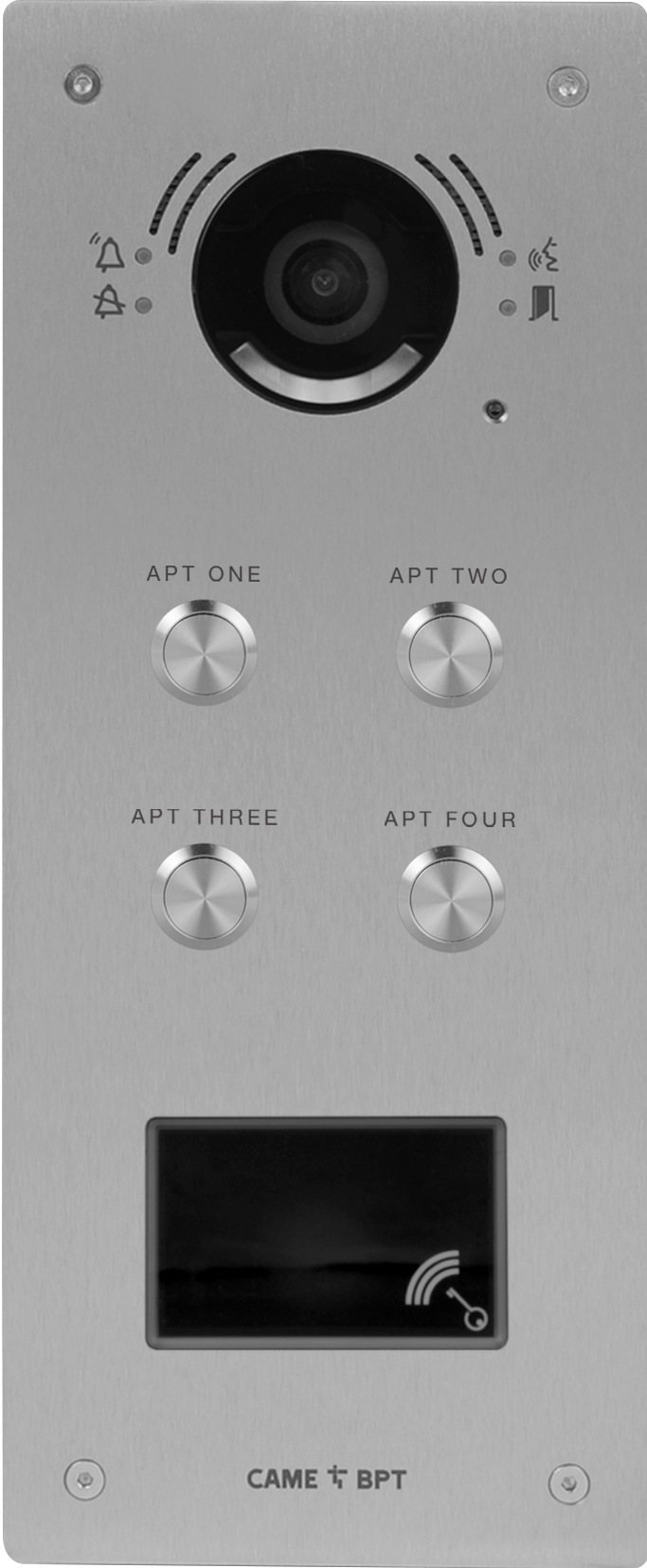

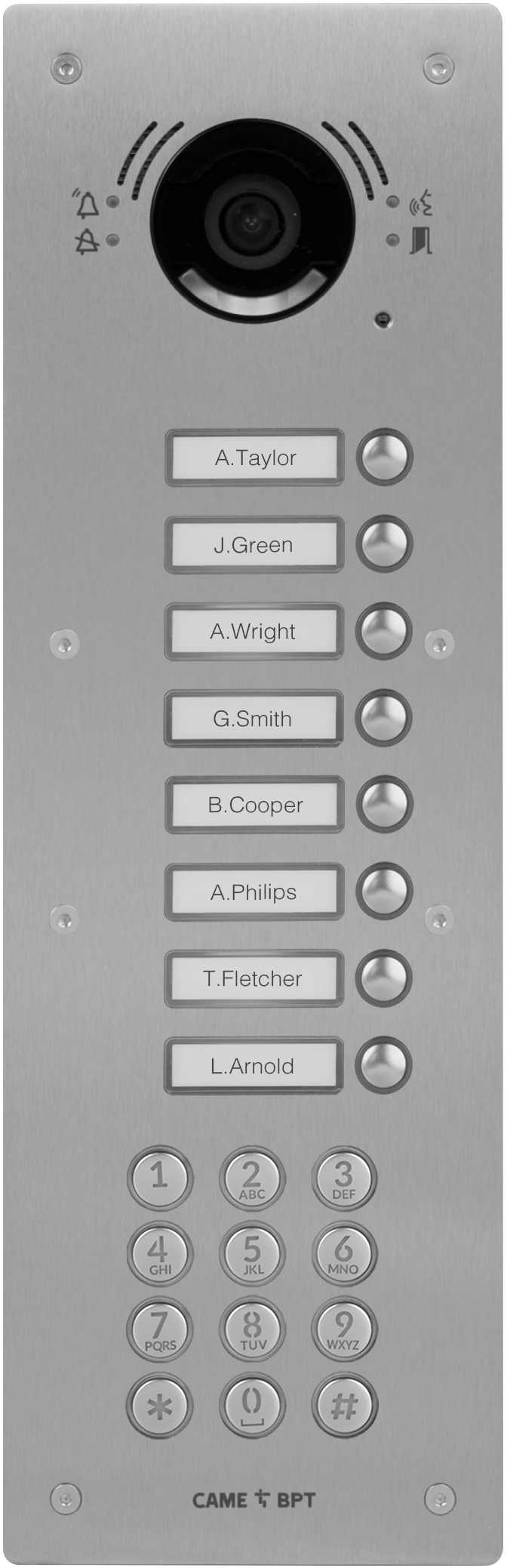

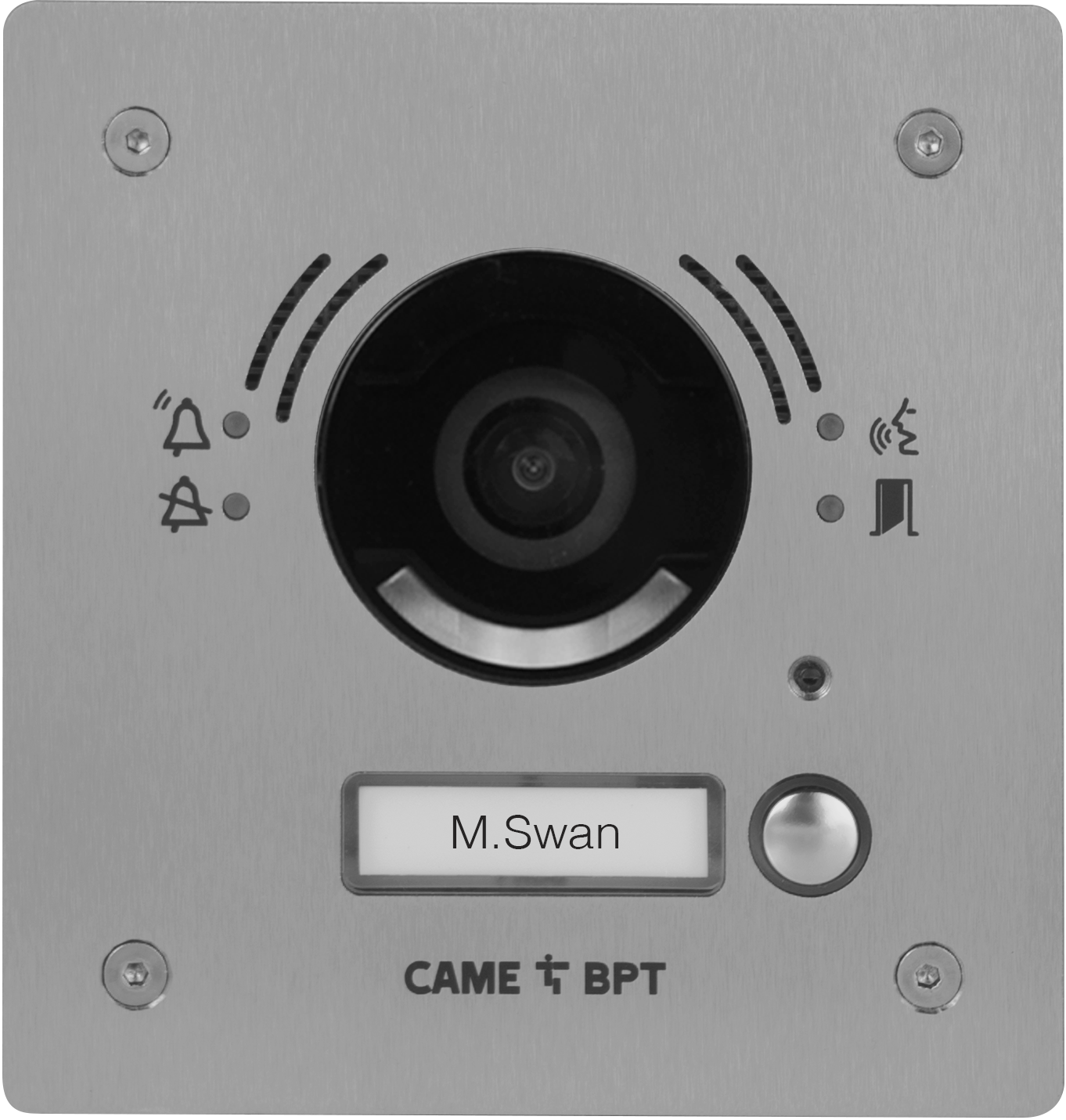

Standard sizes

A choice of 5 vandal resistant sized panels available in 3 standard finishes

The vandal resistant entry panel is constructed from marine grade 316 brushed stainless steel and manufactured in the UK to the highest standards. The IP65 rated crush proof buttons can be used in either video or audio panel styles with coded keypads, proximity reader cut outs or smash and scratch resistant windows which are constructed from Makralon. Surface or flush mounted, they are the last word in hard wearing, durable entry panel design. As well as the standard range, custom sizes can also be manufactured to suit any application.


Size	SIZE 1	SIZE 2	SIZE 3	SIZE 4	SIZE 5
Width	130mm	130mm	130mm	130mm	130mm
Height	136mm	226mm	316mm	406mm	496mm
Depth	52mm	52mm	52mm	52mm	52mm
Depth (Surface Housing)	74mm	74mm	74mm	74mm	74mm
Code (Surface Housing )	VRMSH1	VRMSH2	VRMSH3	VRMSH4	VRMSH5

Vandal resistant

The vandal resistant entry panel is constructed from marine grade 316 brushed stainless steel and manufactured in the UK to the highest standards. The IP65 rated crush proof buttons can be used in either video or audio panel styles with coded keypads, proximity reader cut outs or smash and scratch resistant windows which are constructed from Makralon.

Surface or flush mounted, they are the last word in hard wearing, durable entry panel design. As well as the standard range, custom sizes can also be manufactured to suit any application.

Standard panel finishes

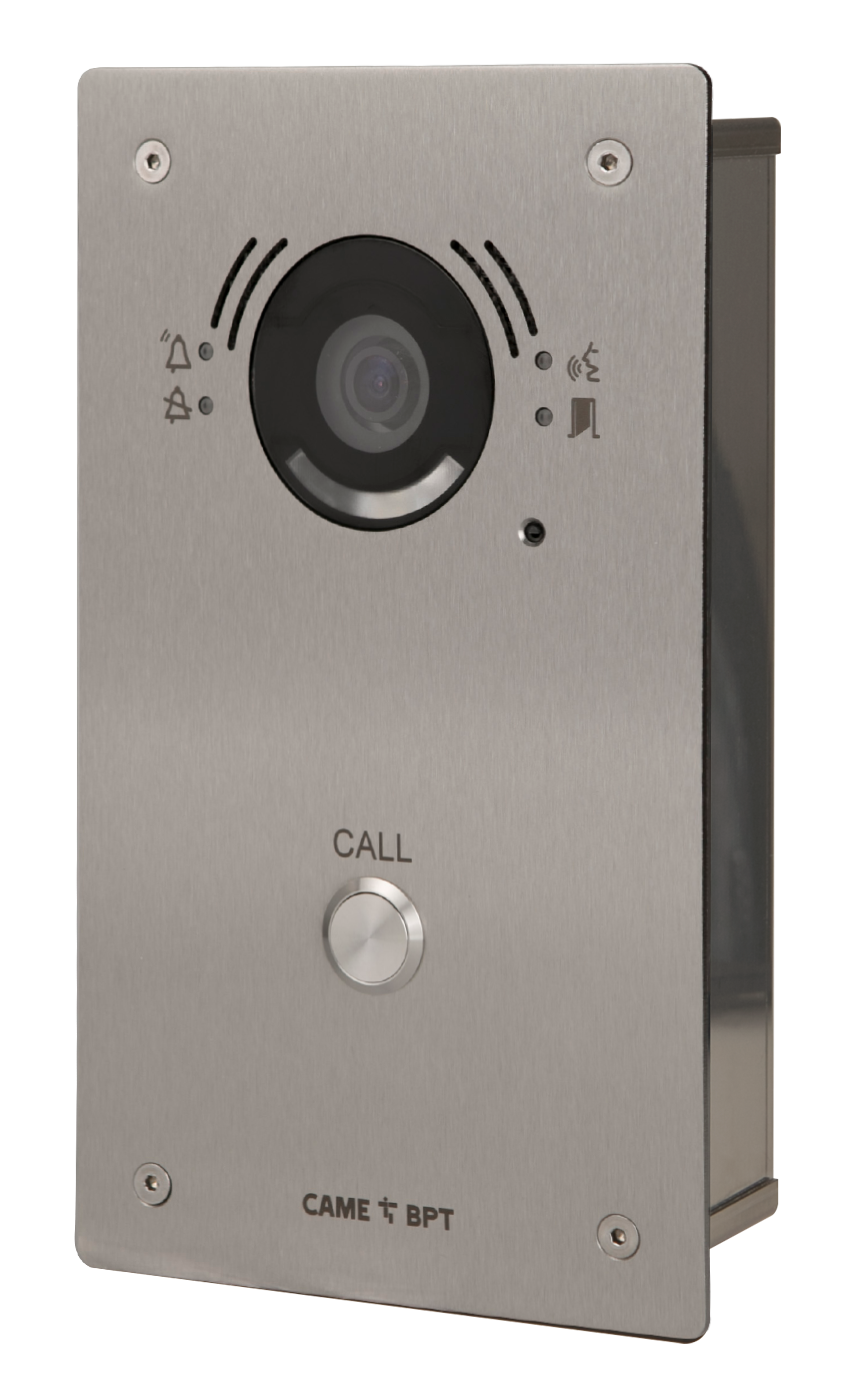

VRM/VRW

Brushed Stainless Steel Finish

Produced from 316 grade stainless steel and engineered to the highest standards. Brushed stainless steel has proven to be durable and versatile to complement any surrounding. Panels are finished with high precision black laser engraving.

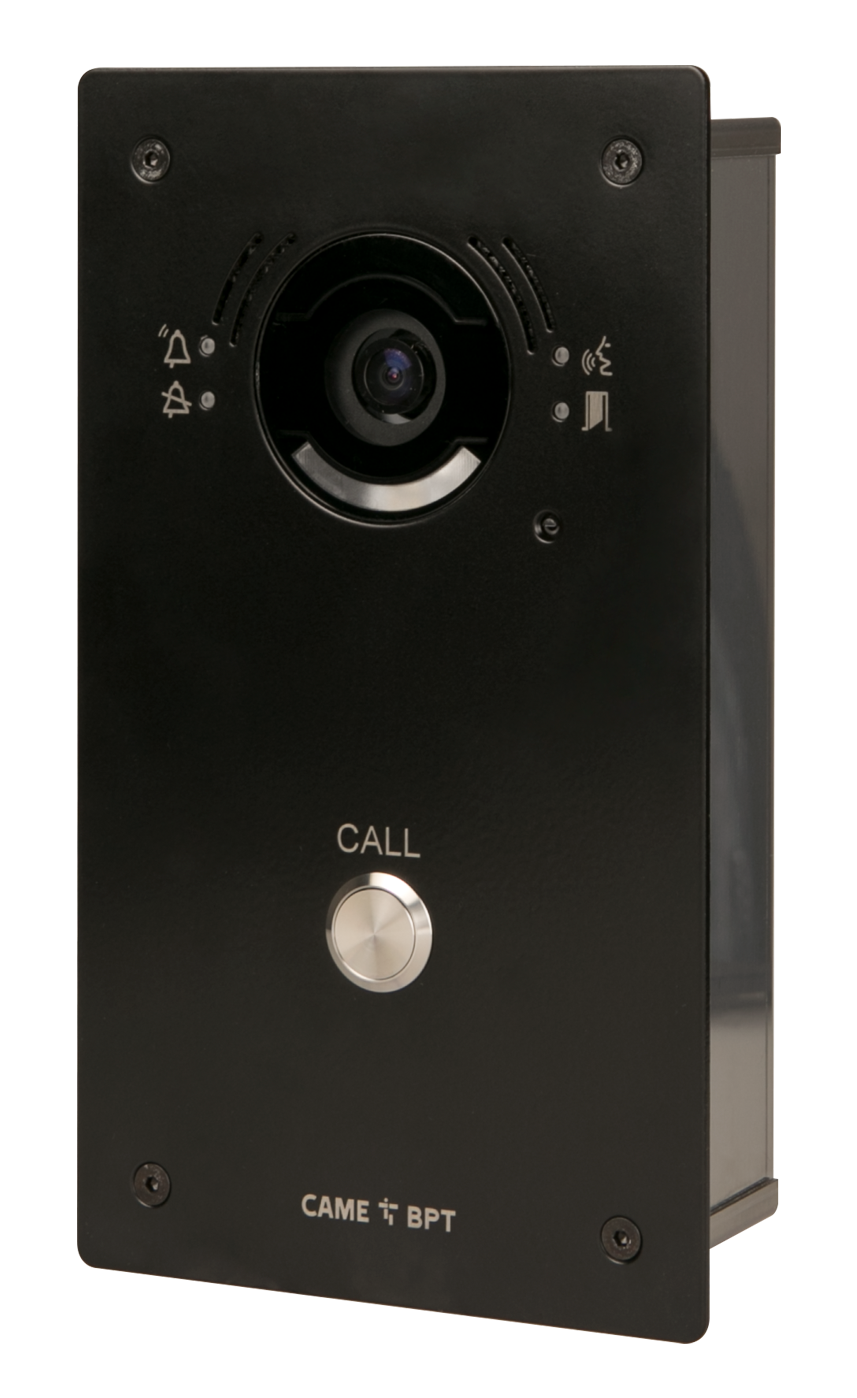

BLM/BLW

A Sleek Satin Black Semi Gloss Finish

Manufactured from 316 grade stainless steel and powder coated with a hard wearing, semi gloss black powder coat. The BL range of panels are the last word in understated elegance. High precision laser engraving in silver provides contrast and impact.

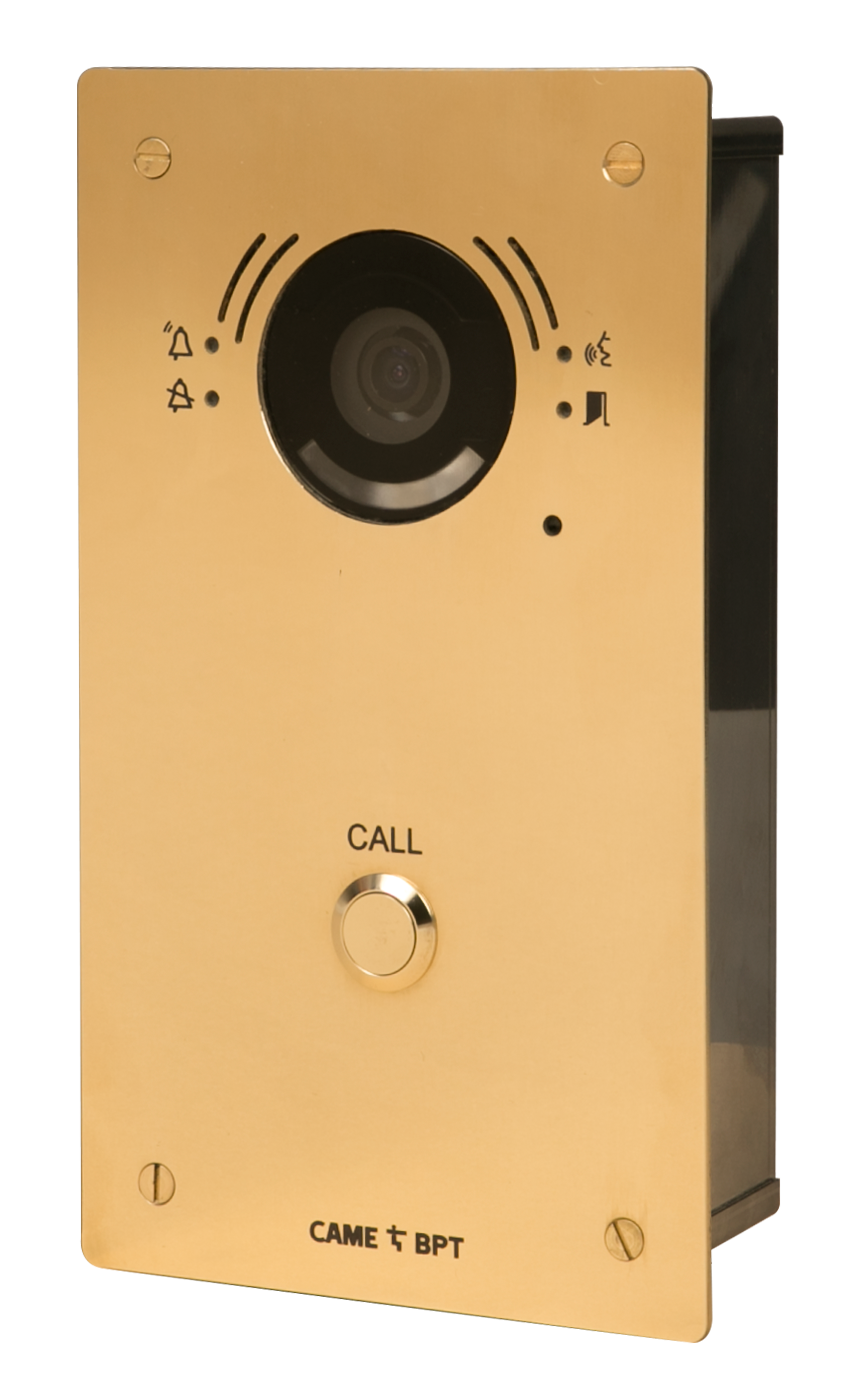

BRM/BRW

A Traditional Classic Brass Finish

Produced from CZ108 unlaquered solid brass to achieve a timeless appearance. BR panels offer an alternative to the vandal resistant range to complement many heritage applications. Panels are finished with high precision black laser engraving.

Proximity bracket

Standard proximity bracket

Multiple readers, one solution. The unique design of the
proximity multi window fits the most common panel
mount readers as standard.

Proximity bracket

Universal reader bracket

VRM & VRW panels can house the innovative Universal Bracket,
designed to fit any reader. A simple, versatile component utilising
precision engineering to deliver a product with a wealth of options.
Manufactured to exacting standards, our Universal Bracket allows
you to use almost any proximity reader in the market.

Bespoke

What can we offer?

Our VRC bespoke range combines the durability, strength and modularity found in our standard VRM range, but with complete versatility and customisation options available. Whatever the desire of your customer, we can provide a panel solution that meets their requirements. VRC allows you to create an entry panel that is custom built to your specifications whatever the size, shape, colour or finish you desire.

Bespoke

Finishes

All of the standard MTM modules can be mounted behind flat customised plaques, by simply adding a plastic adapter to ensure IP54 level protection and vandalism protection. You can also use customised buttons via special expansion electronics.

Bespoke

Etching & Engraving

Panels are finished with high precision laser engraving. This can be tailored to any requirement including the addition of company or client logos or any specific font styles and sizes. Laser engraving provides hard wearing, high contrast text and graphics to an exceptional level of detail. For a more traditional finish, etched engraving can also be provided. Whilst not achieving the level of detail provided by laser engraving, for clients requiring a more classic look, or a particular colour of text, this option can be used.

Bespoke

Buttons

To complement your entry panel there are a vast array of push button styles. Various colours as well as brass, black, bronze and polished finishes are all available to suit any requirement. In addition, a range of DDA buttons with braille and tactile markings can also be included in any panel design.

With the use of LED’s we can offer a whole host of lighting colour options for the illumination of your buttons.

Bespoke

Panels

Create a truly unique solution with Hydro-graphic wrapping.

Our unique hydro-graphic finishing enables us to offer our customers exclusive finishes unavailable anywhere else in the industry. With over 500 different finishing options, we are
confident that whatever the taste, whatever the requirement, we can meet the demand for the panel of your choice.

Bespoke

Shapes

We can create almost any shape that you require and configure the modules to your desired layout.

Improvements to our VR Entry Panels

Relay outputs

2 programmable input/output functions on the terminal board allows you to open doors and other entrances.

Construction

The vandal resistant entry panel is constructed from marine grade 316 brushed stainless steel and manufactured in the UK to the highest standards.

Modular

Modular Vandal Resistant Door Entry Panel that
allows you to create the solution to fit your scenario. Or (Multiple modules available that allow you to build your own bespoke door entry panel.)

User Friendly

Quick and easy installation – easy to swap over and connect up modules. Easy to upgrade and change modules to create your own bespoke door entry panel.

Universal prox

Universal proximity reader bracket is available as an optional extra, allowing you to install any 3rd party brand reader into our modular entry panel.

HDV

High definition video quality – enhanced wide lens allowing up to 130° horizontal viewing and up to 95° vertical viewing angles with no image distortion.

RELAY OUTPUTS
CONSTRUCTION
MODULAR
USER FRIENDLY
UNIVERSAL PROX
HDV

Exceptionally short lead times

For over 20 years, CAME BPT have produced more made to order audio and video door entry panels than any manufacturer in the UK. Our in house manufacturing unit is able to accommodate everything from a uniquely engraved address to a fully bespoke entry panel in a vast number of finishes and designs that can be produced within very short lead times.

5 Days for standard sized panels
10 Days for custom bespoke panels

DOCUMENT DOWNLOADS

VANDAL RESISTANT DOOR ENTRY PANELS: PRODUCT GUIDE

MTM: THE NEW RANGE OF MODULAR VIDEO ENTRY

VRMVP1 - BIM OBJECT

VRMVPDYDIGI-P - BIM OBJECT
