Modular and safe installation for quick passages

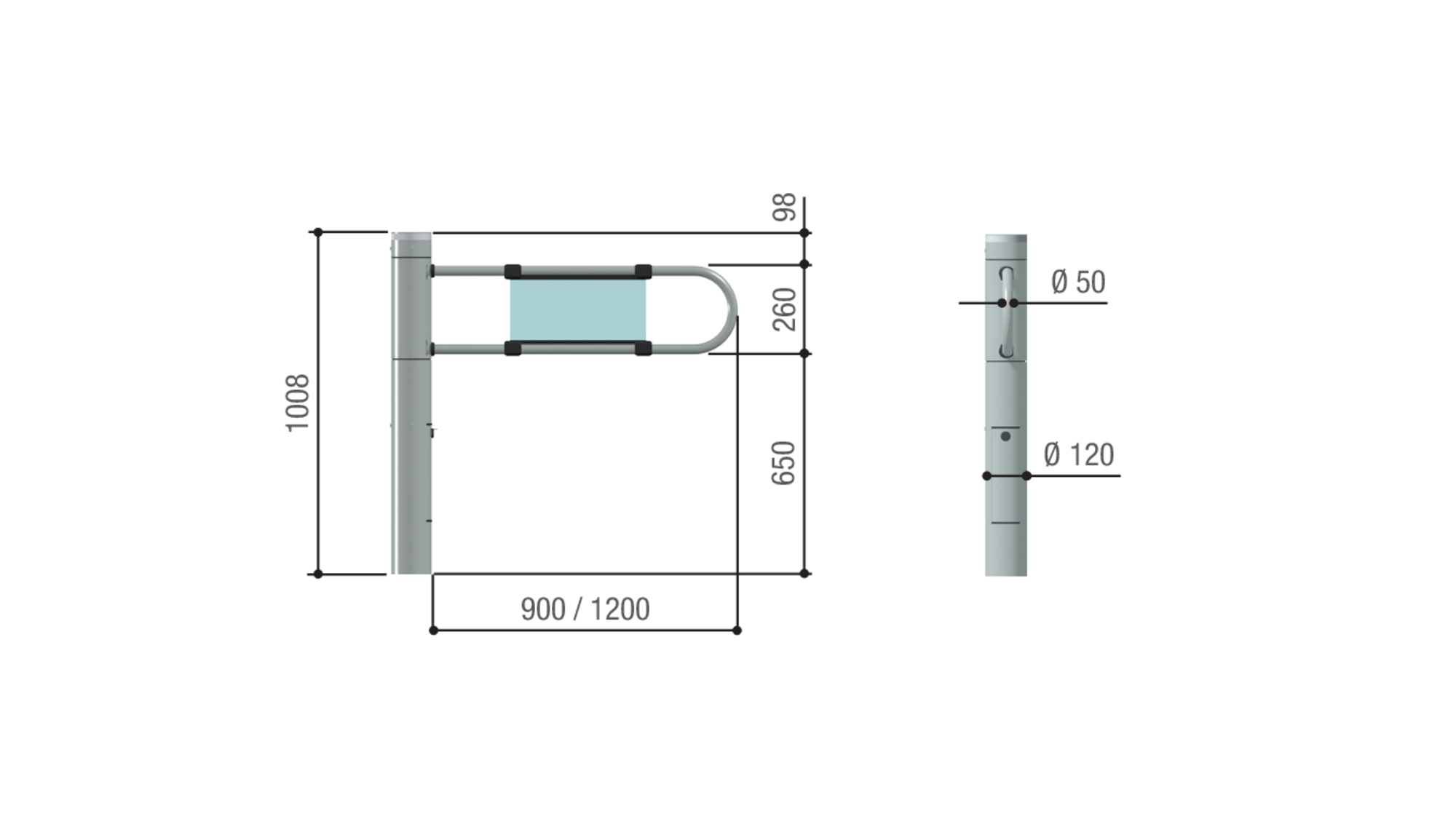

  • Min. leaf length (mm)900 (PSSL90)
  • Max. leaf length (mm)1200 (PSSL120)
  • Min. clearance width (mm)1850
  • Max. clearance width (mm)2450
  • Max. leaf opening (°)90
MODELS PSSLN40
Protection rating (IP) 40
Power supply (V - 50/60 Hz) 120 - 230 AC
Power (W) 120
Max number of passages/min.* 12
Opening speed at 90° (s) 1
Operating temperature (°C) -20 ÷ +55

OUR RANGE

24 V DC motor-powered swing-leaf turnstile

001PSSLN40

Bidirectional motor-powered swing-leaf turnstile made of aluminum, complete with control board and LED indicators.

Download FASCICOLO PSSLN40 MULTI4 A5 (IT, EN, FR, RU)
Download SALOON conformity declaration (CE)
Download SALOON 40 conformity declaration (CE ROHS)

Accessories

001PSSL90

Aluminium gate leaf L = 900 mm.

    001PSSL120

    Aluminium gate leaf L = 1200 mm.

      001PSSLC

      Customized aluminum leaf.(L = from 600 to 1,200 mm, notify us of the dimensions you want, when ordering).

        001PSSA01

        Automatic-opening activation microwave radar.

        Download FASCICOLO PSSA01 MULTI (IT, EN, FR, DE, ES, NL, PT, PL, RU)

          001PSSA03

          Kit containing two chrome-finish plastic couplers for fitting the crowd barriers.

          Download FASCICOLO PSSA03 / PSSA04

            001PSSA04

            Kit containing two AISI 304 steel couplers for fitting the crowd barriers.

            Download FASCICOLO PSSA03 / PSSA04
