MAIN FEATURES

  • Encoder-based movement control.
  • Control board with terminal blocks, dip switches and storage for up to 25 users.
  • Set up for operation in case of power outage.
  • Self-diagnosing safety devices.
  • User-friendly release lever for manually opening the gate.
  • One version, with encoder-based control, for gates with leaves measuring up to 2 meters.
  • Smooth movement and opening time to 90° of 19-25 seconds.
  • Safety is ensured by the encoder's movement control function.
  • It works even during power outages by fitting emergency batteries in the specific housing.
  • Built-in ZL60 control board with separate terminals and dip-switches make for easier programming and start-up.
  • Directly settable functions, such as closing times, speed and sensitivity.
  • Self-diagnosing, hardwired safety devices.
  • Plug-in connectors for the R800 control board and AF receiver.

Solution for applying in private homes and apartment buildings, on small and medium-sized gate posts

  • Max. length of leaf (m)2
    1,7
    1
  • Max. weight of leaf (kg)200
    225
    250
  • Max. length of leaf (m)








  • Max. weight of leaf (kg)








ARTICULATED ARM 801MB-0081 801MB-0051
LEAF OPENING (°) A B D E C Max. A B D E C Max.
90 140 420 (490 con 801XC-0070) Min. 150 310 (410 con 801XC-0070) 150 (300 con 801XC-0070) 140 420 (490 con 801XC-0070) Min. 150 310 (410 con 801XC-0070) 150 (300 con 801XC-0070)
90 160 ÷ 180 380 (460 con 801XC-0070) Min. 150 310 (410 con 801XC-0070) 150 (300 con 801XC-0070) 160 ÷ 180 380 (460 con 801XC-0070) Min. 150 310 (410 con 801XC-0070) 150 (300 con 801XC-0070)
110 200 ÷ 220 400 (470 con 801XC-0070) Min. 150 310 (410 con 801XC-0070) 50 (300 con 801XC-0070) 200 ÷ 220 400 (470 con 801XC-0070) Min. 150 310 (410 con 801XC-0070) 50 (300 con 801XC-0070)
MODELS 801MB-0081 801MB-0051
Protection rating (IP) 44 44
Power supply (V - 50/60 Hz) 230 AC -
Power supply to motor (V) 24 DC 24 DC
Absorption (A) 4 Max. 4 Max.
Power (W) 140 140
Maneuvering time at 90° (s) from 19 to 25 from 20 to 30
Cycles/Hour 40 40
Thrust (N) 180 180
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55

OUR RANGE

Complete operators with 24 V DC gearmotors, tested in compliance with regulatory standards EN 12453 - EN 12445

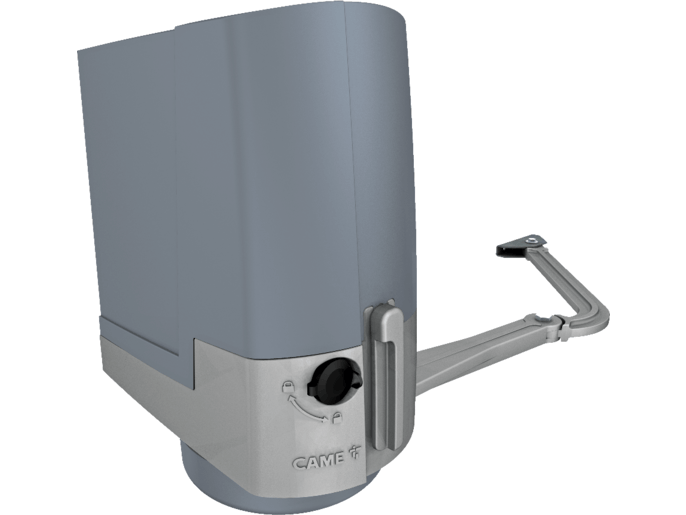

801MB-0081

FTL20DLC - Irreversible operator featuring a control board with dip-switch settings, on-board radio decoding and hinged transmission arm for swing gates with leaves each up to 2 m long. RAL7040-grey cover.

Download Dichiarazione di Conformità - FTL20DLC ()

24 V DC gearmotors, tested in compliance with regulatory standards EN 12453 - EN 12445

801MB-0051

FTX20DLS - Irreversible gearmotor with hinged transmission-arm for swing gates with leaves each up to 2 m long and maximum C-distance of 150 mm. RAL7040-grey cover.

Download Dichiarazione di Conformità - FTX20DES ()

Accessories

001STYLO-BD

Straight drive arm and track with mechanical opening limit-switch.

Download FASCICOLO STYLO-BD MULTI4A A3 (IT, EN, FR, RU)

    801XC-0070

    Hinged arm for increasing the maximum C-distance.

    Download FASCICOLO 801XC-0070 MULTI00 A4 ( )

      Accessories for: 801MB-0080

      002RLB

      Circuit board for emergency operation and battery charging.

      Download MULTI4A A3 RLD FOLDER (IT, EN, FR, RU)
      Download Dichiarazione di Conformità - RLB ( )

      Accessories for: 801MB-0080

      001RGP1

      Green Power module.

      Download MULTI4A A3 RGP1 FOLDER (IT, EN, FR, RU)
      Download Dichiarazione di Conformità - RGP1 ( )

        001R800

        Control board for decoding and access-control management via keypad selectors.

        Download Dichiarazione di Conformità - R800 ()

          DOWNLOAD DOCUMENTS

          Register for full access to technical documentation and installer services

          REGISTER
