OUR RANGE

INFRARED BARRIERS FOR DOORS AND WINDOWS

846EC-0010

Infrared beam barrier for doors and windows. Height of 0.5 m with two detection beams each composed of two rays operating in AND logic (to interrupt the beam, interrupt both rays). It is also possible to set the AND function between two beams in order to prevent false alarms. Wired synchronism connection between the two bars. Range: indoor 30 m; outdoor 15 m. Minimum distance between the bars 40 cm. Absorption 50 mA. Operating temperature -10 ÷ +65 °C. Protection rating IP54. Width 25 mm, depth 22 mm. Black.

Download FASCICOLO BI EN A4 (EN)
Download FASCICOLO BI FR A4 (FR)
Download FASCICOLO BI IT A4 (IT)

    846EC-0020

    Infrared beam barrier for doors and windows. Height of 1 m with 4 detection beams composed of two rays operating in AND logic (to interrupt the beam, interrupt both rays). It is also possible to set the AND function between two beams in order to prevent false alarms. Wired synchronism connection between the two bars. Range: indoor 30 m; outdoor 15 m. Minimum distance between the bars 40 cm. Absorption 50 mA. Operating temperature -10 ÷ +65 °C. Protection rating IP54. Width 25 mm, depth 22 mm. Black.

    Download FASCICOLO BI EN A4 (EN)
    Download FASCICOLO BI FR A4 (FR)
    Download FASCICOLO BI IT A4 (IT)

      846EC-0030

      Infrared beam barrier for doors and windows. Height of 1.5 m with 6 detection beams composed of two rays operating in AND logic (to interrupt the beam, interrupt both rays). It is also possible to set the AND function between two beams in order to prevent false alarms. Wired synchronism connection between the two bars. Range: indoor 30 m; outdoor 15 m. Minimum distance between the bars 40 cm. Absorption 50 mA. Operating temperature -10 ÷ +65 °C. Protection rating IP54. Width 25 mm, depth 22 mm. Black.

      Download FASCICOLO BI EN A4 (EN)
      Download FASCICOLO BI FR A4 (FR)
      Download FASCICOLO BI IT A4 (IT)

        846EC-0040

        Infrared beam barrier for doors and windows. Height of 2 m with 8 detection beams composed of two rays operating in AND logic (to interrupt the beam, interrupt both rays). It is also possible to set the AND function between two beams in order to prevent false alarms. Wired synchronism connection between the two bars. Range: indoor 30 m; outdoor 15 m. Minimum distance between the bars 40 cm. Absorption 80 mA. Operating temperature -10 ÷ +65 °C. Protection rating IP54. Width 25 mm, depth 22 mm. Black.

        Download FASCICOLO BI EN A4 (EN)
        Download FASCICOLO BI FR A4 (FR)
        Download FASCICOLO BI IT A4 (IT)

          846EC-0050

          Infrared beam barrier for doors and windows. Height of 2.5 m with 8 detection beams composed of two rays operating in AND logic (to interrupt the beam, interrupt both rays). It is also possible to set the AND function between two beams in order to prevent false alarms. Wired synchronism connection between the two bars. Range: indoor 30 m; outdoor 15 m. Minimum distance between the bars 40 cm. Absorption 80 mA. Operating temperature -10 ÷ +65 °C. Protection rating IP54. Width 25 mm, depth 22 mm. Black.

          Download FASCICOLO BI EN A4 (EN)
          Download FASCICOLO BI FR A4 (FR)
          Download FASCICOLO BI IT A4 (IT)

            846EC-0060

            Infrared beam barrier for doors and windows. Height of 0.5 m with two detection beams each composed of two rays operating in AND logic (to interrupt the beam, interrupt both rays). It is also possible to set the AND function between two beams in order to prevent false alarms. Wired synchronism connection between the two bars. Range: indoor 5 m; outdoor 5 m. Minimum distance between the bars 40 cm. Absorption 50 mA. Operating temperature -10 ÷ +65 °C. Protection rating IP54. Width 25 mm, depth 22 mm. White.

            Download FASCICOLO BI EN A4 (EN)
            Download FASCICOLO BI FR A4 (FR)
            Download FASCICOLO BI IT A4 (IT)

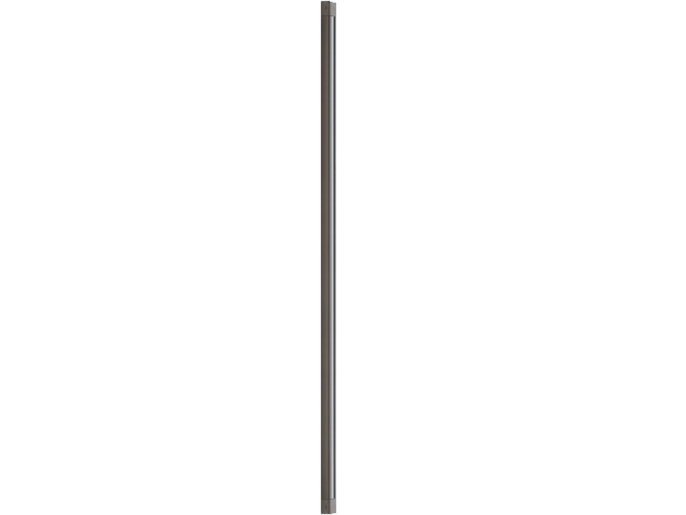

              846EC-0070

              Infrared beam barrier for doors and windows. Height of 1 m with 4 detection beams composed of two rays operating in AND logic (to interrupt the beam, interrupt both rays). It is also possible to set the AND function between two beams in order to prevent false alarms. Wired synchronism connection between the two bars. Range: indoor 5 m; outdoor 5 m. Minimum distance between the bars 40 cm. Absorption 50 mA. Operating temperature -10 ÷ +65 °C. Protection rating IP54. Width 25 mm, depth 22 mm. White.

              Download FASCICOLO BI EN A4 (EN)
              Download FASCICOLO BI FR A4 (FR)
              Download FASCICOLO BI IT A4 (IT)

                846EC-0080

                Infrared beam barrier for doors and windows. Height of 1.5 m with 6 detection beams composed of two rays operating in AND logic (to interrupt the beam, interrupt both rays). It is also possible to set the AND function between two beams in order to prevent false alarms. Wired synchronism connection between the two bars. Range: indoor 5 m; outdoor 5 m. Minimum distance between the bars 40 cm. Absorption 50 mA. Operating temperature -10 ÷ +65 °C. Protection rating IP54. Width 25 mm, depth 22 mm. White.

                Download FASCICOLO BI EN A4 (EN)
                Download FASCICOLO BI FR A4 (FR)
                Download FASCICOLO BI IT A4 (IT)

                  846EC-0090

                  Infrared beam barrier for doors and windows. Height of 2 m with 8 detection beams composed of two rays operating in AND logic (to interrupt the beam, interrupt both rays). It is also possible to set the AND function between two beams in order to prevent false alarms. Wired synchronism connection between the two bars. Range: indoor 5 m; outdoor 5 m. Minimum distance between the bars 40 cm. Absorption 80 mA. Operating temperature -10 ÷ +65 °C. Protection rating IP54. Width 25 mm, depth 22 mm. White.

                  Download FASCICOLO BI EN A4 (EN)
                  Download FASCICOLO BI FR A4 (FR)
                  Download FASCICOLO BI IT A4 (IT)

                    846EC-0100

                    Infrared beam barrier for doors and windows. Height of 2.5 m with 8 detection beams composed of two rays operating in AND logic (to interrupt the beam, interrupt both rays). It is also possible to set the AND function between two beams in order to prevent false alarms. Wired synchronism connection between the two bars. Range: indoor 5 m; outdoor 5 m. Minimum distance between the bars 40 cm. Absorption 80 mA. Operating temperature -10 ÷ +65 °C. Protection rating IP54. Width 25 mm, depth 22 mm. White.

                    Download FASCICOLO BI EN A4 (EN)
                    Download FASCICOLO BI FR A4 (FR)
                    Download FASCICOLO BI IT A4 (IT)

                      846XC-0060

                      Pack of 4 brackets for infrared barriers for doors and windows. It allows the rotation of the bars on their vertical axis, in order to achieve proper positioning (use a pack of 4 brackets for each barrier).

                      Download FASCICOLO BI4SD IT A4 (IT)

                        INFRARED BARRIERS FOR DOORS AND WINDOWS CONFIGURED FOR WIRELESS TRANSMITTERS

                        846EC-0110

                        Infrared beam barrier for doors and windows. Supplied with external housing for housing batteries and the PXWCO01 perimeter sensor to be used as a transmitter (this enables radio-frequency communication with the ProxinetW2 radio-frequency control unit and with the Proxinet36, Proxinet76 and Proxinet192 control units fitted with the PXWRX receiver. Height of 0.5 m with two detection beams each composed of two rays operating in AND logic (to interrupt the beam, interrupt both rays). It is also possible to set the AND function between two beams in order to prevent false alarms. Optical synchronism between the two bars with simplified alignment system. Range: indoor 15 m; outdoor 5 m. Minimum distance between the bars 40 cm. Alarm output with NC contact. Powered by no. 2 standard supplied 3.6 V 19Ah lithium batteries (one per bar). Flat battery buzzer. Battery life of 1 to 3 years. Operating temperature -10 ÷ +65 / -40 ÷ +70 °C. Protection rating IP54. Width 25 mm, depth 22 mm. External container dimensions 40 x 40 x 220 mm (-12 mm to obtain the total height). Black.

                        Download FASCICOLO BIWB205AS-410AS-615AS-820AS EN A4 (EN)
                        Download FASCICOLO BIWB205AS-410AS-615AS-820AS FR A4 (FR)
                        Download FASCICOLO BIWB205AS-410AS-615AS-820AS IT A4 (IT)

                          846EC-0120

                          Infrared beam barrier for doors and windows. Supplied with external housing for fitting batteries and the PXWCO perimeter sensor to be used as a transmitter (this enables radio-frequency communication with the ProxinetW2 radio-frequency control unit and with the Proxinet36, Proxinet76 and Proxinet192 control units fitted with the PXWRX receiver. Height of 1 m with 4 detection beams composed of two rays operating in AND logic (to interrupt the beam, interrupt both rays). It is also possible to set the AND function between two beams in order to prevent false alarms. Optical synchronism between the two bars with simplified alignment system. Range: indoor 15 m; outdoor 5 m. Minimum distance between the bars 40 cm. Alarm output with NC contact. Powered by no. 2 standard supplied 3.6 V 19Ah lithium batteries (one per bar). Flat battery buzzer. Battery life of 1 to 3 years. Operating temperature ÷ +65 °C. Protection rating IP54. Width 25 mm, depth 22 mm. External container dimensions 40 x 40 x 220 mm (-12 mm to obtain the total height). Black.

                          Download FASCICOLO BIWB205AS-410AS-615AS-820AS EN A4 (EN)
                          Download FASCICOLO BIWB205AS-410AS-615AS-820AS FR A4 (FR)
                          Download FASCICOLO BIWB205AS-410AS-615AS-820AS IT A4 (IT)

                            846EC-0130

                            Infrared beam barrier for doors and windows. Supplied with external housing for fitting batteries and the PXWCO perimeter sensor to be used as a transmitter (this enables radio-frequency communication with the ProxinetW2 radio-frequency control unit and with the Proxinet36, Proxinet76 and Proxinet192 control units fitted with the PXWRX receiver. Height of 1.5 m with 6 detection beams composed of two rays operating in AND logic (to interrupt the beam, interrupt both rays). It is also possible to set the AND function between two beams in order to prevent false alarms. Optical synchronism between the two bars with simplified alignment system. Range: indoor 15 m; outdoor 5 m. Minimum distance between the bars 40 cm. Alarm output with NC contact. Powered by no. 2 standard supplied 3.6 V 19Ah lithium batteries (one per bar). Flat battery buzzer. Battery life of 1 to 3 years. Operating temperature ÷ +65 °C. Protection rating IP54. Width 25 mm, depth 22 mm. External container dimensions 40 x 40 x 220 mm (-12 mm to obtain the total height). Black.

                            Download FASCICOLO BIWB205AS-410AS-615AS-820AS EN A4 (EN)
                            Download FASCICOLO BIWB205AS-410AS-615AS-820AS FR A4 (FR)
                            Download FASCICOLO BIWB205AS-410AS-615AS-820AS IT A4 (IT)

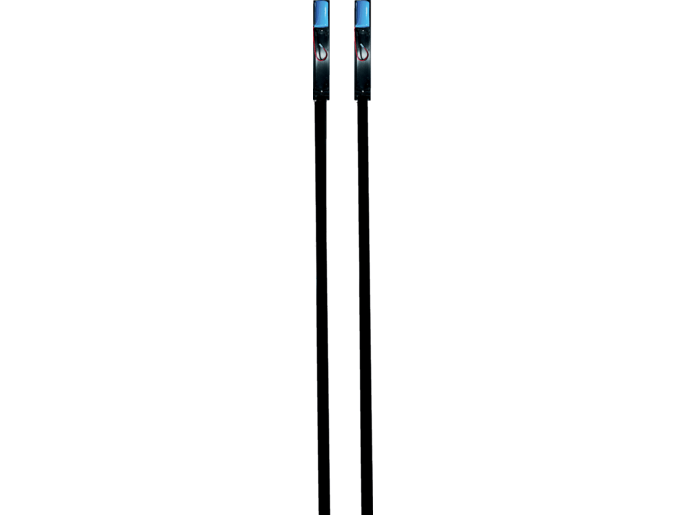

                              846EC-0140

                              Barriera a raggi infrarossi per porte e finestre. Fornita con contenitori esterni per alloggiamento batterie e del rivelatore perimetrale PXWCO da utilizzare come trasmettitore (questo permette il dialogo radio della barriera con la centrale radio ProxinetW2 e con le centrali Proxinet36, Proxinet76 e Proxinet192 provviste di ricevitore PXWRX). Altezza 2 m con 8 fasci di rivelazione composti ognuno da due raggi funzionanti in logica AND (per interrompere il fascio è necessario interrompere entrambi i raggi). Possibilità di impostare la funzione AND anche tra due fasci al fine di evitare falsi allarmi. Sincronismo tra le due barre di tipo ottico con sistema di allineamento semplificato. Portata: in interno 15 m; in esterno 5 m. Distanza minima tra le barre 40 cm. Uscita con contatto di allarme NC. Alimentazione n. 2 pile al litio 3,6 V 19 Ah (una per barra), fornite di serie. Segnalazione acustica di pila scarica. Durata pila da 1 a 3 anni. Temperatura di funzionamento -10 ÷ +65 °C. Grado di protezione IP54. Larghezza 25 mm, profondità 22 mm. Dimensioni contenitore esterno 40 x 40 x 220 mm (-12 mm per ottenere l’altezza totale). Colore nero.

                              Download FASCICOLO BIWB205AS-410AS-615AS-820AS EN A4 (EN)
                              Download FASCICOLO BIWB205AS-410AS-615AS-820AS FR A4 (FR)
                              Download FASCICOLO BIWB205AS-410AS-615AS-820AS IT A4 (IT)

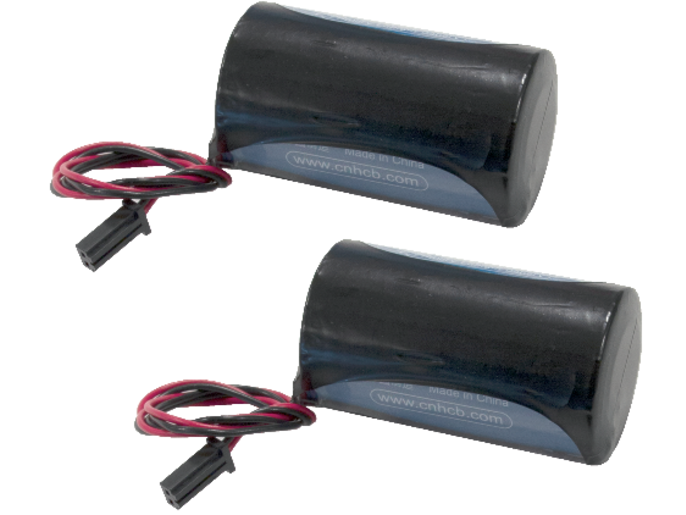

                                846XC-0070

                                Package with 2, 3.6 V 19 Ah batteries for BIWB205AS, BIWB410AS, BIWB615AS, BIWB820AS barriers.

                                  846XC-0080

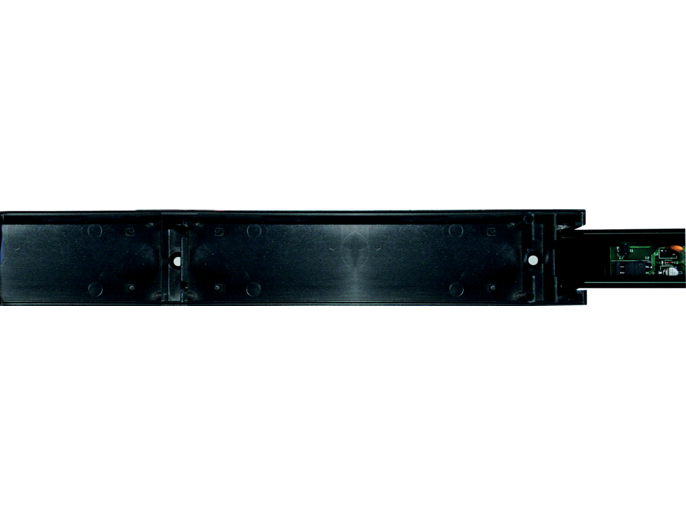

                                  Pack of 2 spare outer containers for housing batteries and the PXWCO01 perimeter detector.

                                    INFRARED BARRIERS FOR OUTDOOR USE

                                    846EC-0150

                                    Infrared barrier for outdoor use. Height of 18.5 cm with 1 detection beam each consisting of two beams operating with AND logic (to stop the beam, it is necessary to interrupt both the rays). Optical synchronism between the two bars. Wall installation. Range: indoors250 m; outdoors 60 m. Total current draw of columns 90 mA. Operating temperature -25 ÷ +65 °C. IP65 protection rating. Width 78 mm, depth 78 mm. Black.

                                    Download FASCICOLO BE260 EN A4 (EN)
                                    Download FASCICOLO BE260 FR A4 (FR)
                                    Download FASCICOLO BE260 IT A4 (IT)

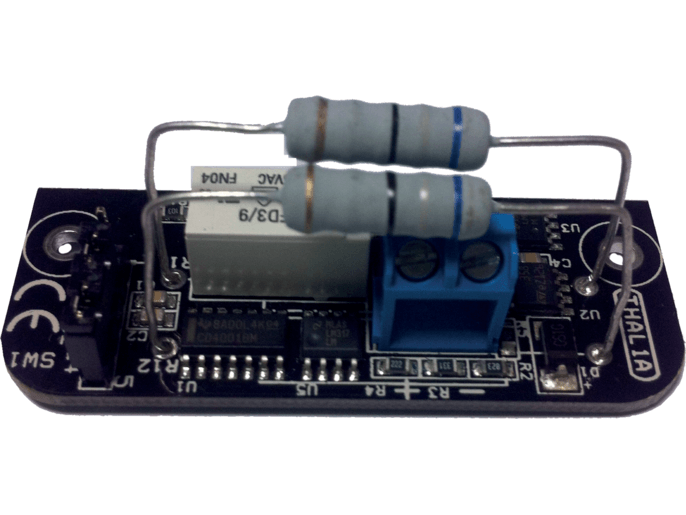

                                      846XC-0090

                                      Internal heater kit for BE260 barriers. Consisting of a heating resistor and a special thermostat, this guarantees a suitable temperature value inside the TX and RX devices, allowing the smooth functioning of the barrier even at low temperatures. To install on both the receiver and the transmitter (1 kit for each barrier). Total current draw of pair of heaters 250 mA.

                                      Download FASCICOLO BE260H IT A4 (IT)

                                        846EC-0160

                                        Infrared barrier for outdoor use. Height of 1 m with 16 crossed detection rays. The AND function can be set up, between two rays (the alarm is generated when two beams, from those envisaged, are interrupted at the same time) or only between the first two rays, in order to prevent false alarms. Optical synchronism between the two bars with simplified alignment system. Can be installed on a wall or on a pole. Range: 200 m indoors; 100 m outdoors. Minimum 4 m distance between the bars. Power supply 10-30 Vcc, current draw 135-210 mA per pair of posts (Tx and Rx). Built-in thermostat heater, separate 10-30 Vca-cc power supply, current draw of 35-85 W per post. Operating temperature -25 ÷ +70 °C. IP65 protection rating. Width 60 mm, depth 60 mm. Black.

                                        Download FASCICOLO BQ-BE EN A4 (EN)
                                        Download FASCICOLO BQ-BE IT A4 (IT)

                                          846EC-0170

                                          Infrared barrier for outdoor use. Height of 1.5 m with 16 crossed detection rays. The AND function can be set up, between two rays (the alarm is generated when two beams, from those envisaged, are interrupted at the same time) or only between the first two rays, in order to prevent false alarms. Optical synchronism between the two bars with simplified alignment system. Can be installed on a wall or a post. Range: 200 m indoors; 100 m outdoors. Minimum 4 m distance between the bars. Power supply of 10-30 Vcc, current draw of 135-210 mA per pair of posts (Tx e RX). Built-in thermostat heater, separate 10-30 Vca-cc power supply, current draw of 35-85 W per post. Operating temperature -25 ÷ +70 °C. IP65 protection rating. Width 60 mm, depth 60 mm. Black.

                                          Download FASCICOLO BQ-BE EN A4 (EN)
                                          Download FASCICOLO BQ-BE IT A4 (IT)

                                            846EC-0180

                                            Infrared barrier for outdoor use. Height of 2 m with 36 crossed detection rays. The AND function can be set up, between two rays (the alarm is generated when two beams, from those envisaged, are interrupted at the same time) or only between the first two rays, in order to prevent false alarms. Optical synchronism between the two bars with simplified alignment system. Can be installed on a wall or a post. Range: 200 m indoors; 100 m outdoors. Minimum 4 m distance between the bars. Power supply of 10-30 Vcc, current draw of 135-210 mA per pair of posts (Tx e RX). Built-in thermostat heater, separate 10-30 Vca-cc power supply, current draw of 35-85 W per post. Operating temperature -25 ÷ +70 °C. IP65 protection rating. Width 60 mm, depth 60 mm. Black.

                                            Download FASCICOLO BQ-BE EN A4 (EN)
                                            Download FASCICOLO BQ-BE IT A4 (IT)

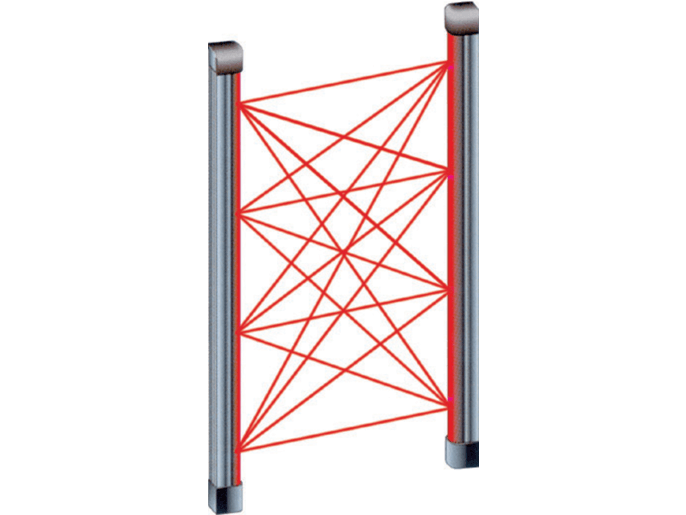

                                              846EC-0190

                                              Infrared barrier for outdoor use. Height of 2.5 m with 36 crossed detection rays. The AND function can be set up, between two rays (the alarm is generated when two beams, from those envisaged, are interrupted at the same time) or only between the first two rays, in order to prevent false alarms. Optical synchronism between the two bars with simplified alignment system. Can be installed on a wall or a post. Range: 200 m indoors; 100 m outdoors. Minimum 4 m distance between the bars. Power supply of 10-30 Vcc, current draw of 135-210 mA per pair of posts (Tx e RX). Built-in thermostat heater, separate 10-30 Vca-cc power supply, current draw of 35-85 W per post. Operating temperature -25 ÷ +70 °C. IP65 protection rating. Width 60 mm, depth 60 mm. Black.

                                              Download FASCICOLO BQ-BE EN A4 (EN)
                                              Download FASCICOLO BQ-BE IT A4 (IT)

                                                846XC-0100

                                                Bracket for post/wall assembly for BQ810AS, BQ815AS, BE820AS, BE825AS barriers for outdoor use (use 2 brackets for TX and 2 brackets for RX for each barrier).

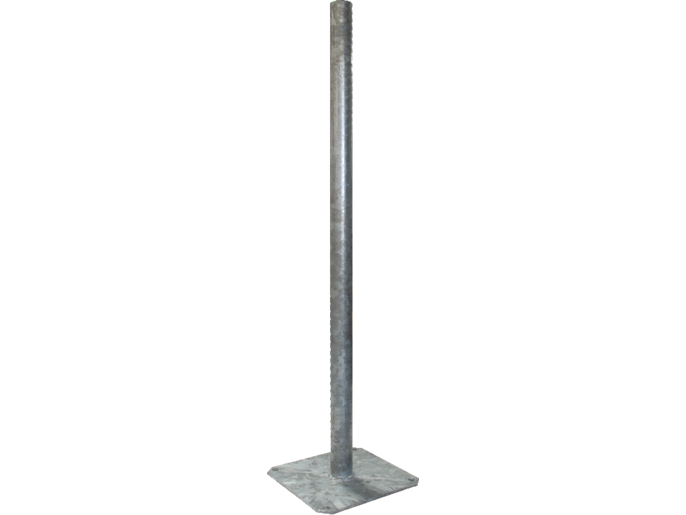

                                                  846XC-0180

                                                  Pole with base for fastening outdoor barrier. BQ810AS, BQ815AS, BE820AS, BE825AS, (use 2 posts for each barrier). Height 1 m.

                                                    846XC-0190

                                                    Pole with base for fastening outdoor barrier. BQ810AS, BQ815AS, BE820AS, BE825AS, (use 2 posts for each barrier). Height 2 m.

                                                      DOWNLOAD DOCUMENTS

                                                      Register for full access to technical documentation and installer services

                                                      REGISTER

                                                      MAYBE YOU ARE INTERESTED IN...

                                                      VOLUMETRIC DETECTORS FOR INDOOR USE

                                                      MAYBE YOU ARE INTERESTED IN...

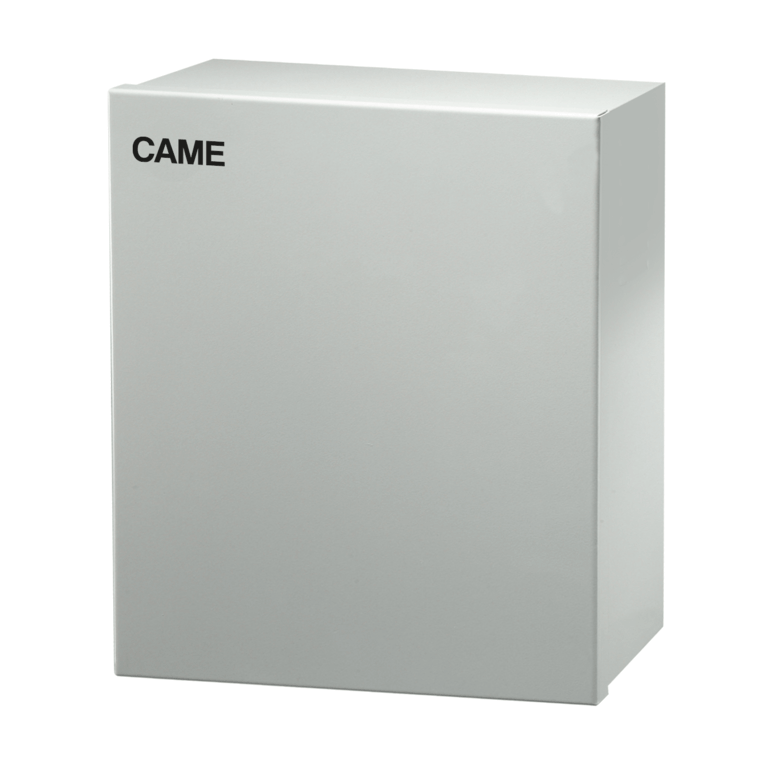

                                                      POWER SUPPLIES AND BATTERIES
