OUR RANGE

VIDEO CAMERAS

848CA-0150

HD video camera, supports HD-SDI technology, Day/Night mechanical filter, Bullet case for external use IP66, CMOS 1/4" sensor, 720p (1280x720 pixels), resolution, 2.8mm lens. Complete with integrated IR LEDs. 12 V DC power supply.

Download FASCICOLO XTHD10BF-XTHD20BF MULTI4A A4 (IT, EN, FR, DE)

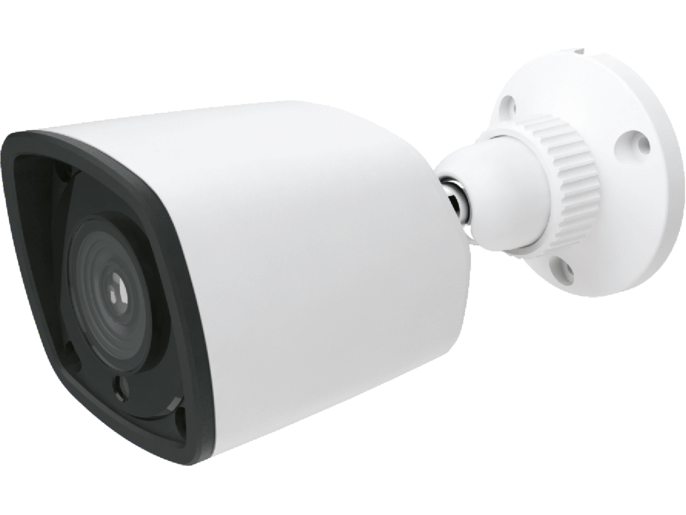

    848CA-0170

    Hybrid HD video camera, supports HD-TVI, AHD, HD-CVI and CVBS technology, mechanical Day/Night filter, IP66 Bullet case for external use, CMOS 1/3" sensor, 1080p resolution (1920x1080 pixels), 2.8mm lens. Complete with integrated IR LEDs. 12V DC power supply.

    Download FASCICOLO XTHD10BF-XTHD20BF MULTI4A A4 (IT, EN, FR, DE)

      848CA-0190

      HD hybrid video camera, HD-TVI technology-friendly, AHD, HD-CVI and CVBS, Day/Night mechanical filter, outdoor Bullet IP66 casing, 1/3" sensor CMOS, 1080p resolution (1920x1080 pixels), 2.8-12mm varifocal lens. Featuring built-in IR LEDs. 12 VDC power supply.

      Download FASCICOLO XTHD20BV-XTHD20BV1 MULTI4A A4 (IT, EN, FR, DE)

        848CA-0200

        HD hybrid video camera, HD-TVI technology-friendly, AHD, HD-CVI and CVBS, Day/Night mechanical filter, outdoor Bullet IP66 casing, 1/3" sensor CMOS, 1080p resolution (1920x1080 pixels), 2.8-12mm varifocal lens. Comes with integrated long-range IR LEDs. 12 VDC power supply.

        Download FASCICOLO XTHD20BV-XTHD20BV1 MULTI4A A4 (IT, EN, FR, DE)

          848CA-0160

          HD camera, with HD-TVI technology, Day/Night mechanical filter, external Minidome IP66 casing, 1/4" CMOS sensor, 720p resolution (1280x720 pixels), 2.8 mm lens. Featuring built-in IR LEDs. 12 VDC power supply.

          Download FASCICOLO XTHD10MF-XTHD20MF MULTI4A A4 (IT, EN, FR, DE)

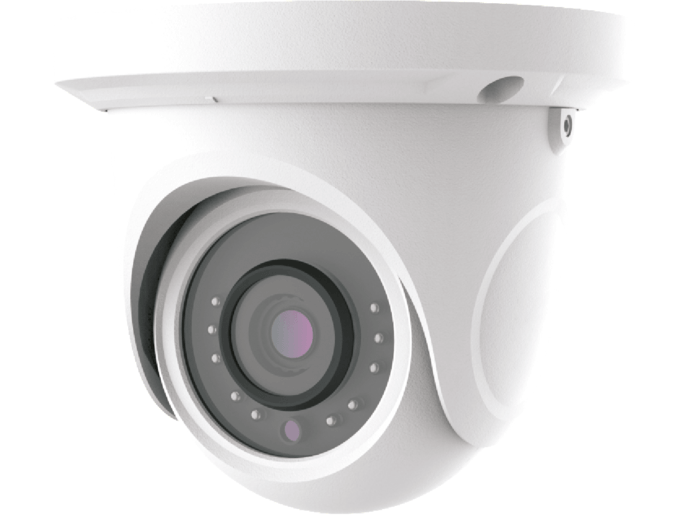

            848CA-0180

            HD Hybrid camera, with HD-TVI, AHD, HD-CVI and CVBS technology, Day/Night mechanical filter, Minidome external IP66 casing, 1/3" CMOS sensor, 1080p (1920x1080 pixel) resolution, 2.8 mm lens. Featuring built-in IR LEDs. 12 VDC power supply.

            Download FASCICOLO XTHD10MF-XTHD20MF MULTI4A A4 (IT, EN, FR, DE)

              848CA-0210

              HD Hybrid Camera, with HD-TVI, AHD, HD-CVI and CVBS technology, Day/Night mechanical filter, outdoor IP66 Minidome casing, 1/3" sensor CMOS, 1080p resolution (1920x1080 pixels), 2.8-12mm varifocal lens. Featuring built-in IR LEDs. 12 VDC power supply.

              Download FASCICOLO XTHD20MV MULTI4A A4 (IT, EN, FR, DE)

                848CA-0220

                HD Hybrid Camera, with HD-TVI, AHD, HD-CVI and CVBS technology, Day/Night mechanical filter, IK10 vandal-proof, external IP66 casing, 1/3" CMOS sensor, 1080p resolution (1920x1080 pixels), 2.8-12 mm varifocal lens. Featuring built-in IR LEDs. 12 VDC power supply.

                Download FASCICOLO XTHD20MV1 MULTI4A A4 (IT, EN, FR, DE)

                  Digital HD video recorders

                  848EA-0070

                  Hybrid HD 4-input digital video recorder, supports HD-TVI, AHD and CVBS technology. Supports 1-channel IP video @1080p. Compression H264, built-in, 1TB Hard Disk (1 SATA interface, maximum). Maximum recording speed of 100fps@720p (50fps@1080p). Video output 1 HDMI, 1 VGA, 1 TV BNC. 4 local inputs and 1 local alarm output, 4 integrated inputs and 1 audio output. 10/100 Mbps network interface , 2 USB ports. Supports Mobile devices. Power driver included.

                  Download FASCICOLO XDHDXXXXH MULTI4 A4 (IT, EN, FR, DE)

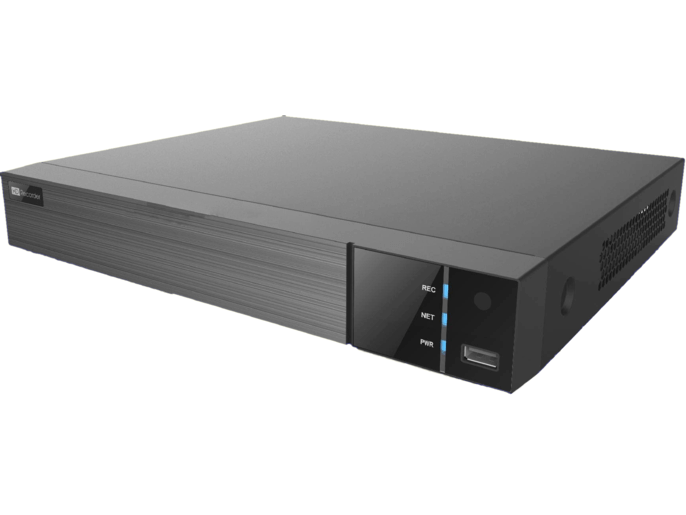

                    848EA-0080

                    Hybrid HD 8-input digital video recorder, supports HD-TVI, AHD and CVBS technology. Supports 1 channel IP video @3MP. Compression H264, built-in, 1TB Hard Disk (1 SATA interface, maximum). Maximum recording speed of 200fps@720p (100fps@1080p). Video output 1 HDMI, 1 VGA, 1 TV BNC. 4 local inputs and 1 local alarm output, 4 integrated inputs and 1 audio output. 10/100 Mbps network interface , 2 USB ports. Supports Mobile devices. Power driver included.

                    Download FASCICOLO XDHDXXXXH MULTI4 A4 (IT, EN, FR, DE)

                      848EA-0090

                      Hybrid HD Digital Video Recorder 16 inputs, supports HD-TVI, AHD and CVBS technology. Supports 4 channels of @3MP IP video. Compression H264, built-in, 1TB Hard Disk (1 SATA interface, maximum). Maximum recording speed of 400fps@720p (200fps@1080p). Video output 1 HDMI, 1 VGA, 1 TV BNC. 4 local inputs and 1 local alarm output, 4 integrated inputs and 1 audio output. 10/100 Mbps network interface , 2 USB ports. Supports Mobile devices. Power driver included.

                      Download FASCICOLO XDHDXXXXH MULTI4 A4 (IT, EN, FR, DE)
