Main Features

  • Two sizes of terminals: Regular and Slim
  • High-capacity multi-denomination hopper
  • Extra banknote-dispenser
  • Prints out promotions, discounts, and so on.
  • Extra advertising-screen
  • Sleek, elegant exterior design
  • Two different technologies, one system
  • Stand alone system, with centralized remote control
  • Redundant printers
  • The system is designed for tool-less technical maintenance jobs.

PKE System

The broad range of peripherals that meet a full spectrum of requirements, plus the latest improvements, have boosted the operational reliability and increased end-user satisfaction.

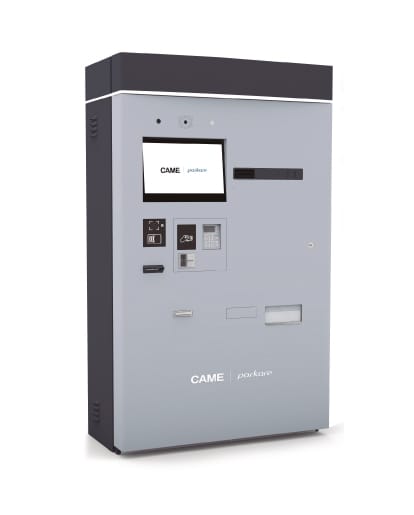

PKE Automatic pay station

Designed to improve the profitability of the car park, it is low maintenance and provides high availability with little intervention required.

FEATURES

  • 15.6" LVDS colour TFT touch screen display.
  • 4 language options (configurable by the client).
  • IP intercom for communication with the control room.
  • Motion sensor to reduce energy consumption.
  • Embedded PC based on architecture x86 and support SSD for data storage.
  • Barcode reader 1D/QR with capacity to read codes on tickets, printed paper and mobile devices.
  • Thermal receipt printer.
  • Electronically regulated internal ventilation system.
  • Coins module with change giving. Accepts up to 16 denominations of different coins and automatic return of 4 different values.
  • 4 self-charging coin hoppers, two with capacity of 1,500 coins and two with capacity of 750 coins.
  • 5.5 litre security coin box.
  • Cabinet constructed from 2mm AP02 steel with antioxidant treatment and oven dried polyester powder paint.
  • Mechanical lock with high security keys.
  • Security lock with 3 locking points.
  • Micro sensors for automatic detection: door opening, coin box removal, hoppers removal and note box removal.
  • Operating display protected by 4mm polycarbonate.
  • Exterior and interior lighting system.
  • Available as standard in signal yellow and white aluminium (RAL 1003 and 9006) or dark grey and white aluminium (RAL 9006).

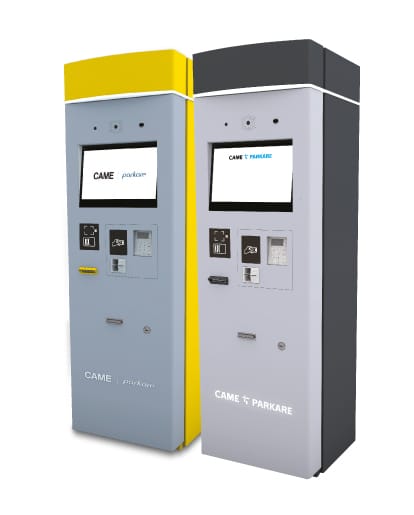

PKE cashless pay station

The PKE cashless pay station accepts fast and secure electronic payments through any method (EMV credit cards, NFC contactless devices, cards/discount vouchers, etc.), avoiding cash handling and reducing the cost of investment.

FEATURES

  • 15.6" LVDS colour TFT touch screen display.
  • 4 language options (configurable by the client).
  • IP intercom for communication with the control room.
  • Motion sensor to reduce energy consumption.
  • Barcode reader with capacity to read barcodes on tickets, printed paper and mobile devices.
  • Thermal receipt printer.
  • Embedded PC based on architecture x86 and support SSD for data storage.
  • Electronically regulated internal ventilation system.
  • EMV reader for credit card with chip and proximity payments (NFC).
  • Cabinet constructed from 1.5mm AP02 steel with 2mm thick front door, with antioxidant treatment and oven dried polyester powder paint.
  • Mechanical lock with high security keys.
  • Operating display protected by 4mm polycarbonate.
  • Micro sensor for automatic detection of door opening.
  • Exterior and interior lighting system.

PKE manual cashier

A complete support point on site, close to the user and with capacity to receive payment, manage season holders or cards of the system, operate with the data of the system and solve any eventuality.

FEATURES

  • Automatic fee calculation.
  • Charge and ticket validation.
  • Recoding and printing the entry ticket once it has been paid, to be used as exit validator.
  • Encoding, writing cards of the system, service, season holders or vouchers.
  • Accepts any payment method (cash, discounts, vouchers, credit).
  • Technical incidents.
  • Admission fee for illegible or lost ticket, time exceeded, etc.
  • Access control.
  • Opening/closing barrier from the keyboard (manual cashier exit mode).

PKE Entry terminal

Simple, straightforward and easy to use – PKE ticket issue machines are designed with users in mind. With an intuitive design and user-friendly LCD display, the machines operate quickly and efficiently to maximise traffic flow through the car park.

FEATURES

  • 7” colour TFT touch screen display.
  • 2 language options (defined by the client).
  • IP intercom for communication with the control room
  • Embedded PC based on x86 architecture with SSD.
  • Cabinet constructed from 1.5mm AISI 430 Stainless Steel with an oven dried polyester powder paint.
  • Sensor to detect open/close position of doors.
  • Exterior and interior lighting system.
  • Ethernet communications (TCP/IP).
  • Barrier controlled by GPIO or Ethernet.
  • Available as standard in signal yellow and white aluminium (RAL 1003 and 9006) or dark grey and white aluminium (RAL 9006).

PKE Exit terminal

As you would expect from Parkare, the technology powering the machines is advanced and robust, and the customer service is exceptional.

FEATURES

  • 7” colour TFT touch screen display.
  • 2 language options (defined by the client).
  • IP intercom for communication with the control room.
  • Embedded PC based on x86 architecture with SSD.
  • Cabinet constructed from 1.5mm AISI 430 Stainless Steel with an oven dried polyester powder paint.
  • Sensor to detect open/close position of doors.
  • Exterior and interior lighting system.
  • Ethernet communications (TCP/IP).
  • Barrier controlled by GPIO or Ethernet.
  • Available as standard in signal yellow and white aluminium (RAL 1003 and 9006) or dark grey and white aluminium (RAL 9006).

PKE Door access system

Parkare's door access system allows pedestrian access for users and season ticket holders with any identification (RFID, TAG, magnetic stripe, barcode, QR) or by inserting the number plate.

FEATURES

  • Barcode reader 1D/QR, with capacity for reading codes in tickets, printed paper and mobile devices.
  • Proximity card reader.
  • PC embedded based on architecture x86 and support SSD for data storage.
  • Electromagnetic security lock (power supply not included).
  • Technical box (interior).
  • Touch screen 6.5", which includes an alphanumeric keyboard.
  • IP intercom for communication with the back office.
  • Green LED on.
  • Red LED operation (unidentified) and green (identified).
  • Presence detector of the user.
  • Stainless steel AISI 430 painted in polyester and
  • oven-dried, suitable for outdoor use.
  • Ethernet net communications.
  • I/O signs: opto isolated.
  • Option ‘On Line’ or ‘Off Line’.
  • Available as standard in signal yellow and white aluminium (RAL 1003 & 9006), blue and white aluminium (RAL 5023 & 9006) or dark grey and white aluminium (5368A0837 & RAL 9006).

PKE Barrier

Innovation and design for all-inclusive safety: these are the most recent additions to the PRK-CA barrier line family

FEATURES

  • An electronic contact automatically interrupts the power supply voltage as soon as the inspection door is opened.
  • Differentiated sensitivity spring for exceptional balancing of the bar.
  • Command electronics. Protected by a die-cast aluminium guard, it is positioned to make any type of intervention extremely practical.
  • The safety photocells are affixed directly to the barrier body without affecting the aesthetics of the product.
  • A specific security firmware connected to our Lince software is available.
  • Polyester powder painted and galvanized steel housing. Available in dark grey or blue (RAL 5023).
