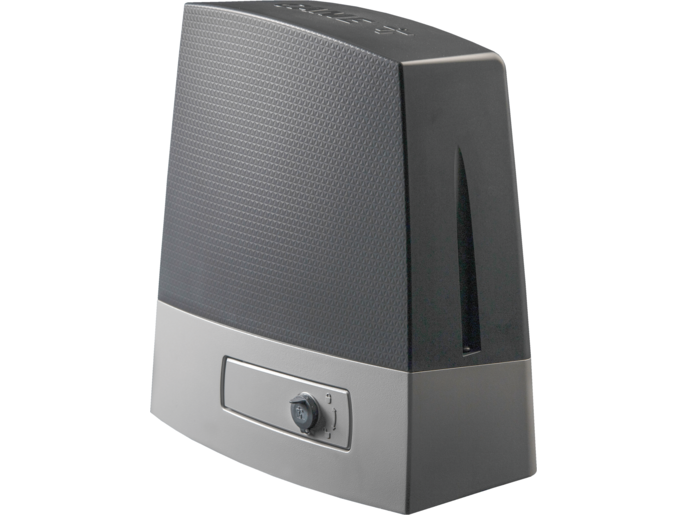

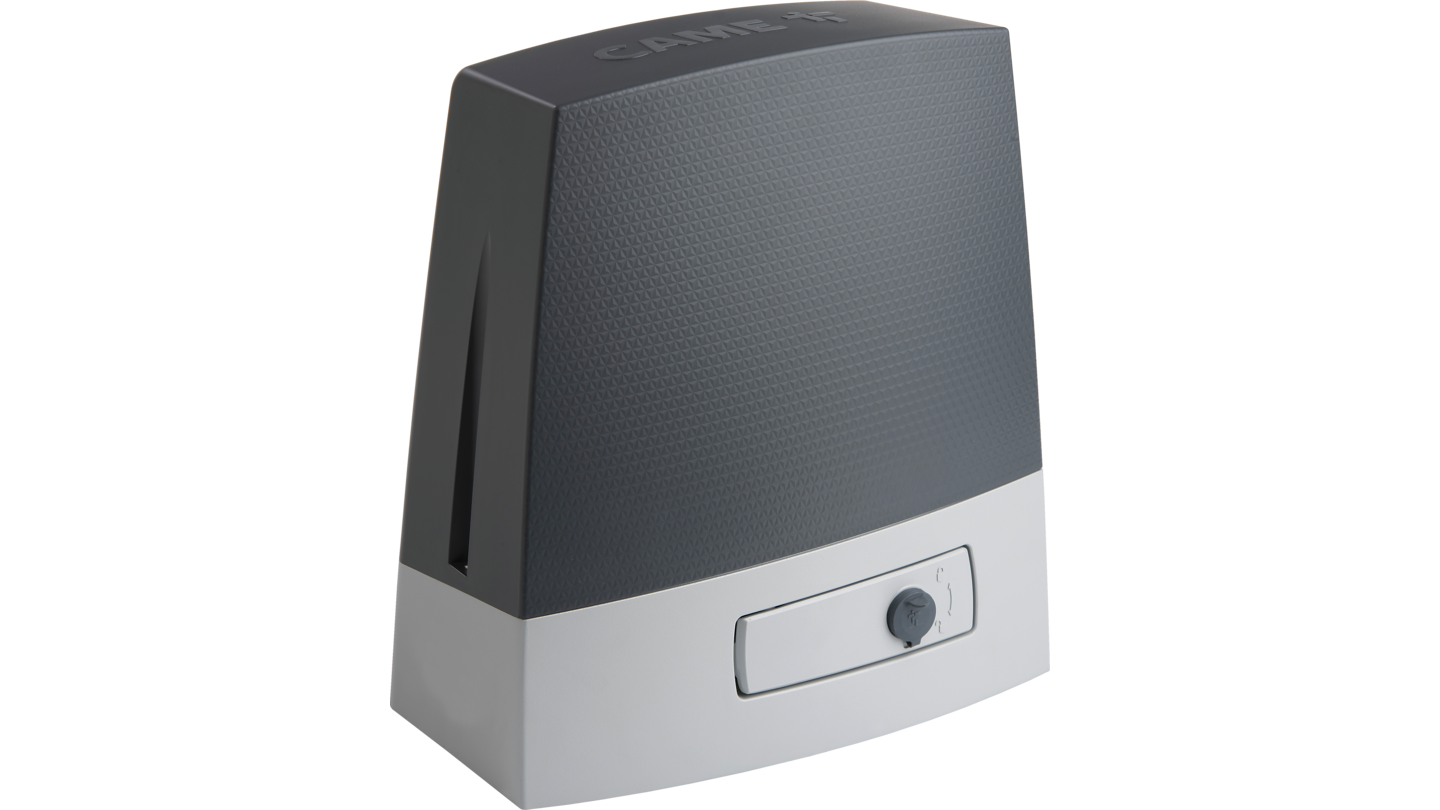

Cutting-edge 24V brushless sliding motor for gates up to 1200 kg. Designed for rapid movements, allowing a speed of 24 m/min. It features a brand-new control board with BUS CXN, a graphic display for quick installation, and includes 4 configurable safety inputs for direct management of resistive safety edges.
| MODELS | 801MS-0690 | 801MS-0700 |
|---|---|---|
| Protection rating (IP) | 54 | 54 |
| Power supply (V - 50/60 Hz) | 230 AC | 230 AC |
| Power supply to motor (V) | 24 | 24 |
| Power (W) | 230 | 270 |
| Manouvering speed (m/min) | 24 | 20 |
| Cycles/Hour | 20 | 17 |
| Thrust (N) | 800 | 800 |
| Operating temperature (°C) | -20 ÷ +55 | -20 ÷ +55 |
| Storage temperature (°C) | -20 ÷ +70 | -20 ÷ +70 |
Automation with 24 V Brushless motor with speed up to 24 m/min, Adaptive Speed & Torque technology, complete with electronic board with graphic display, CAME Key ready, CXN BUS, B1 and B2 output, built-in radio decoding, control movement and obstacle detection for gates up to 800 kg and 20 m in length. RAL7024 gray cover.
Automation with 24 V Brushless motor with speed up to 24 m/min, Adaptive Speed & Torque technology, complete with electronic board with graphic display, CAME Key ready, CXN BUS, B1 and B2 output, built-in radio decoding, control movement and obstacle detection for gates up to 800 kg and 20 m in length. RAL7024 gray cover.
