LHS is our entry panel for small residences.
It is a concentration of technology behind a Zamak finish, with an impact resistance rating of IK09.
Expandable up to 4 calls, its amazing simplicity and elegance enhance its solidity; with an IP54 protection rating.
Ready for wall installation, simply add 2 accessories to make it recess-mounted.
Easy configuration via APP SetUp thanks to the use of CAME KEY, setup has never been faster.
Monolith entry panel with buttons, expandable to 4 calls
| MODELS | LHS A/01 |
|---|---|

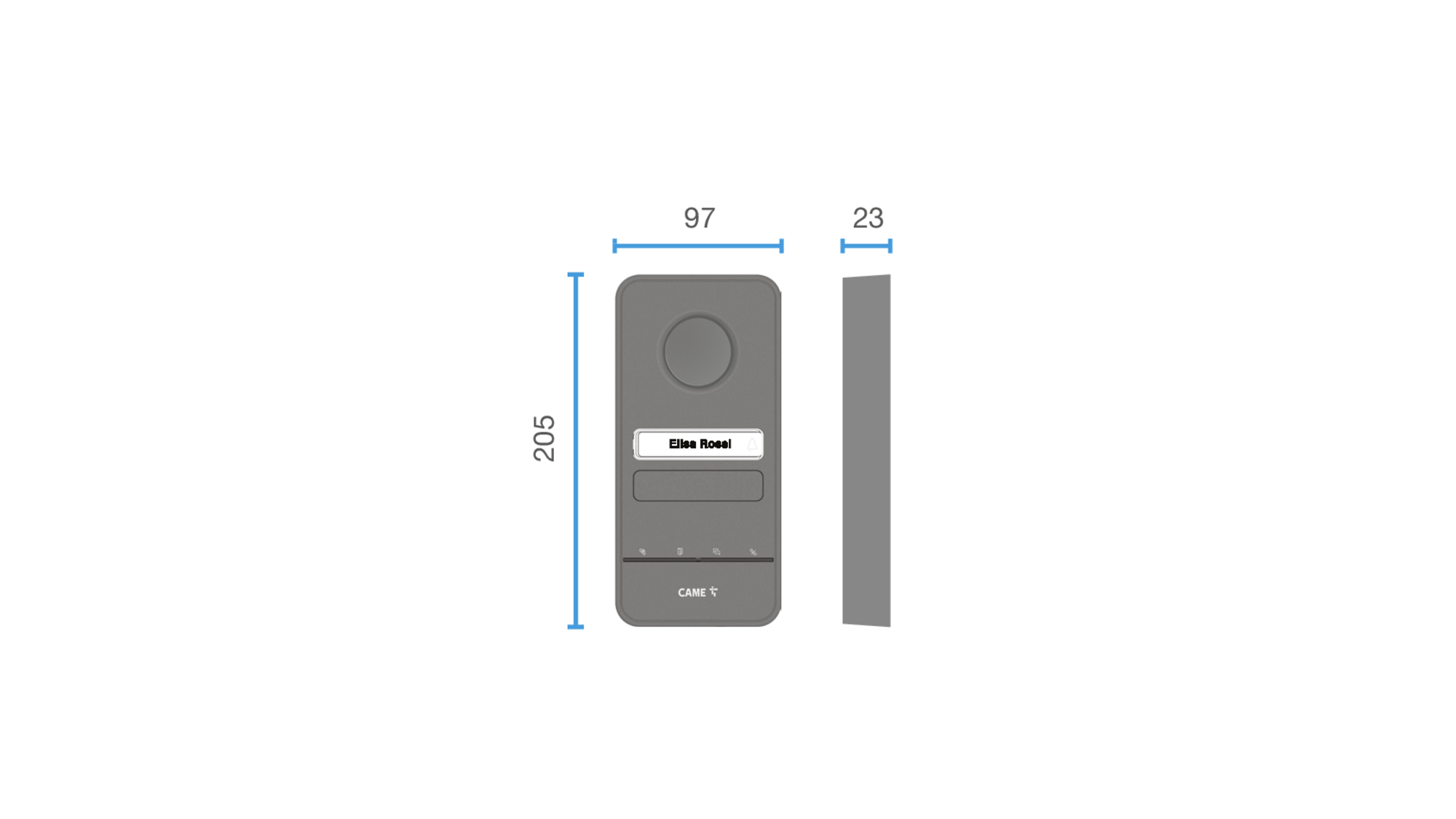

| Dimensions (mm) | 97 x 205 x 23 |
| Power supply (V) | 16 ÷ 18 DC |
| Consumption in stand-by mode (mA) | 80 |
| Max. absorption (mA) | 150 |
| Operating temperature (°C) | -25 ÷ +55 |
| Protection rating (IP) | 54 |
| Protection rating (IK) | 09 |
| Color | Grigio opaco 9023 |
LHS A/01
Monolith intercom entry panel for X1 system; expandable to 4 calls.Zamak finish, impact resistance IK09. Two outputs are available for controlling the electric lock and an additional access. It allows adjustment of the microphone and speaker sound, and the electric lock activation time. Backlit buttons with name tag. Programming can be manual, from App SetUp (via CAME Key device) or via programming software on systems with VA/01. Water and dust protection rating IP54.

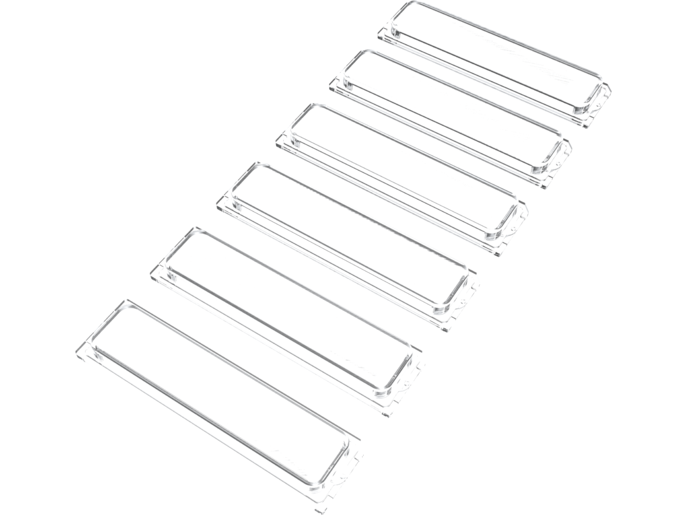

LHS PS
6 Single buttons with name tag.Complete with base and transparent UV-resistant polycarbonate outer protective element. Name tag dimensions 72x14 mm. Package of 6 pieces.

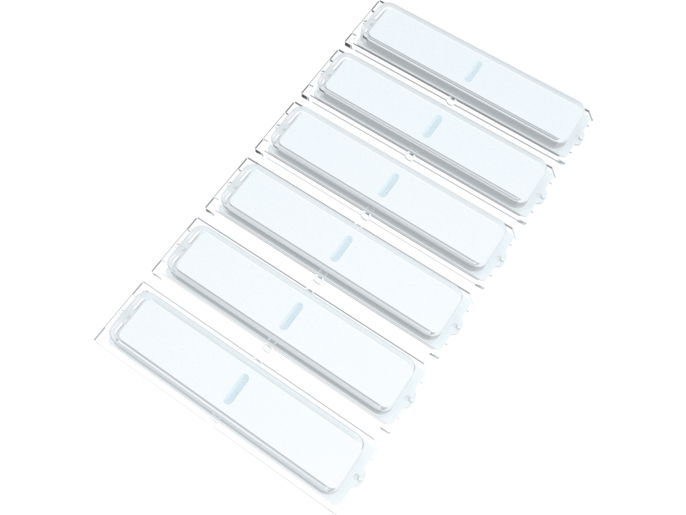

LHS PD
6 Double tilting buttons with name tag.Complete with base and transparent UV-resistant polycarbonate outer protective element. Name tag dimensions 35x14 mm. Package of 6 pieces.

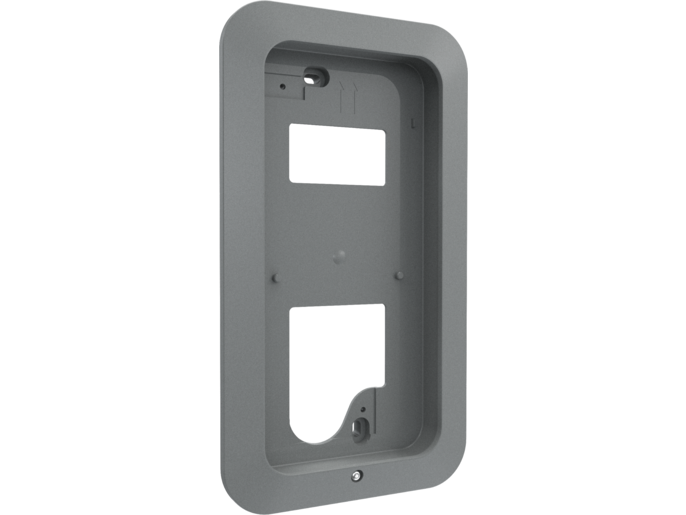

LHS CI
Frame for recess-mounting entry panels of the LHS series.Gray Zamak frame. IK09 shock protection rating. To be used with the LSI recess-mounting box for intercom and video intercom entry panels of the LHS series.

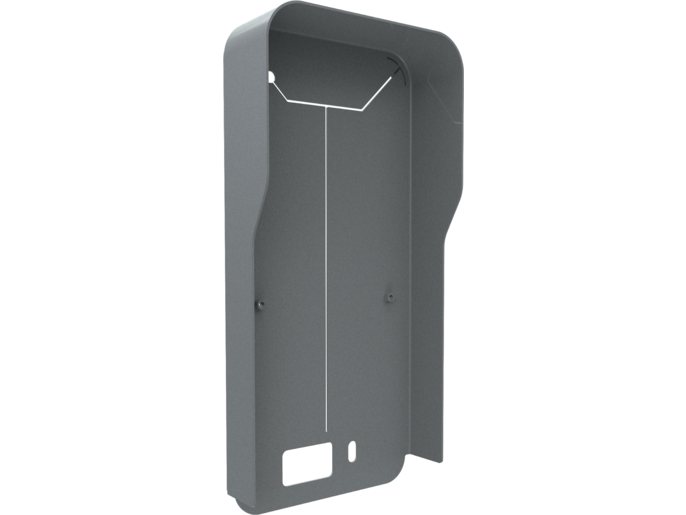

LHS TP
Rain flap for installing on wall onto entry panels of the LHS series.Steel sheet rain cover featured by double-layer painting, holes for passing the cables and other holes for the wall-fastening screws. To be used with intercom and video intercom entry panels of the LHS series.
LSI
Recess-mounting box for fitting entry panels of the Lithos and LHS series.Plastic recess-mounting box with pre-punched holes for passing cables. Fit the LCI or LHS CI frame to finish off the installation.

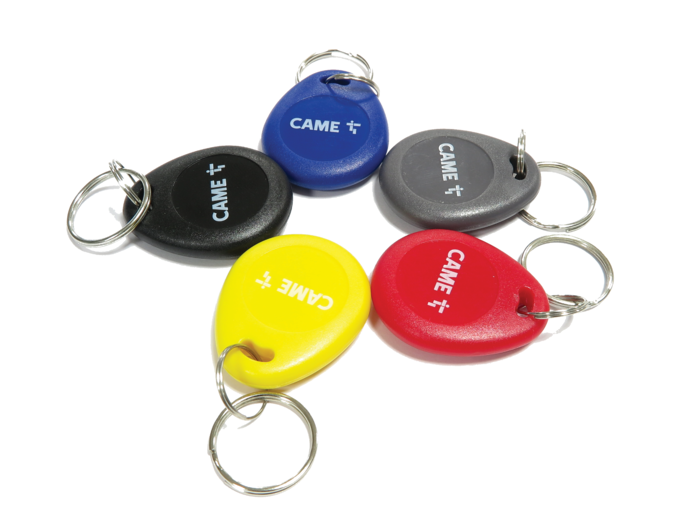

RTAG5
Proximity key in key fob format with 125KHz RFID technology.To be used for interaction with RFID readers. The pack contains 5 differently coloured pieces: black, blue, yellow, red and grey.
