SimpleKey 4 Door Extension Kits

The SimpleKey 4 Door Extension kits allow additional doors to be controlled when connected to a SimpleKey 4 system controller. Available in one or two door versions, in a DIN rail format with simple connections to the free topography KMS Bus.

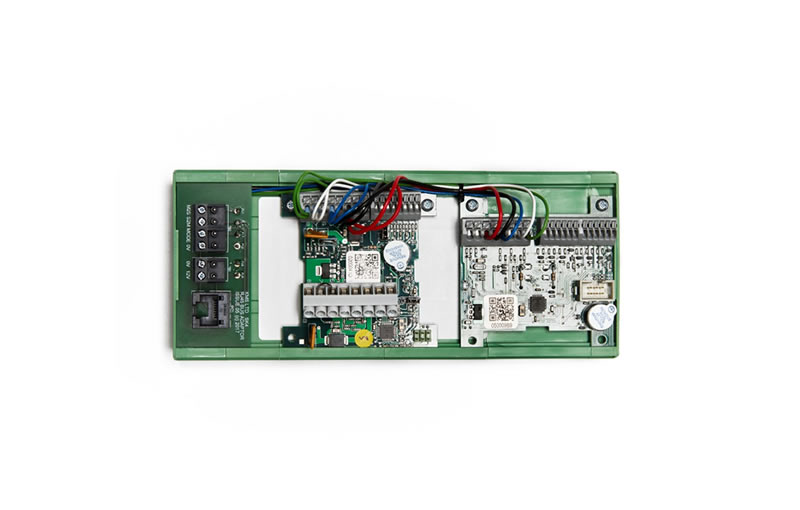

The SimpleKey 4 Door Extension kits, come in 1 or 2 door versions. Each unit has all the connections necessary for; The Lock, The Legacy (or Wiegand) reader(s), RTE, Door Contacts, Emergency Overrides which can also be specifically programmed for different uses as required. KMS BUS connection is either via a plug-in RJ45 socket or standard terminal connectors, whilst power for both the PCBs and lock output is supplied via a separate 12v input. Each kit has the doors it is controlling clearly identified and each pcb has a unique QR code which identifies the component on the BUS and can be used to give more detailed information. Up to 14 additional doors can be added to a single SimpleKey 4 System Controller.

Technical Information

Power Connections

• 12-15v System input 500mA
• 12-24v Auxillary Power input (Wattage dependent on auxiliary connections)
• Lock Outputs
  • 1 or 2 lock outputs
  • N/O or N/C connection
  • Optional on-board power connection
  • Thermal cut-off protection

Reader

• 2 reader connection
• Standard KMS & 26 bit Wiegand


Standard Monitoring and Control

• RTE Connection
• Door monitoring
• Local emergency override
• Global emergency override
• Trades Button
• 1 or 2 relays (follow lock)

N.B: the above can be reprogrammed for other functions

Cabling

• CAME KMS Bus (used to connect to the system) is Cat 5 or above (open topography) 500 max
• Locks – dependent on lock type & specification (Twin 1mm² copper flex up to 1 Amp)
• Reader – 6 or 8 core alarm multi-stranded cable 50m max

Dimensions – (DIN mount)

• 2 door – 300mm × 82mm × 50mm
• 1 door – 245mm × 82mm × 50mm
