Long Range Radio Receiver/Prox Transmitters

LONG RANGE RADIO RECEIVER/PROX TRANSMITTERS

Long Range Radio Receiver and handheld Transmitters (Clickers) allow authorised users to open barriers and gates etc that control access into car parks without having to leave their cars

Radio/Prox Transmitter

Technical Specification

The handheld Transmitters are administered in exactly the same way as the KMS Shark Tooth Fobs via SimpleKey Web, so minimising the impact on the administration resource needed. The hand-held Transmitters can also be integrated to control access through other communal doors that have our conventional readers installed, eliminating the need to carry multiple fobs.

1 up to 4 channel high security RF transmitters
Rolling code technology
Range (in open space): 100 m
Integrated close proximity Shark Tooth fob with same code as RF
26801/PA, 26801/PC variants supplied pre-programmed into SimpleKey Web
Dimensions (L × W × H): 74 × 36 × 9mm
Battery CR2032 Lithium

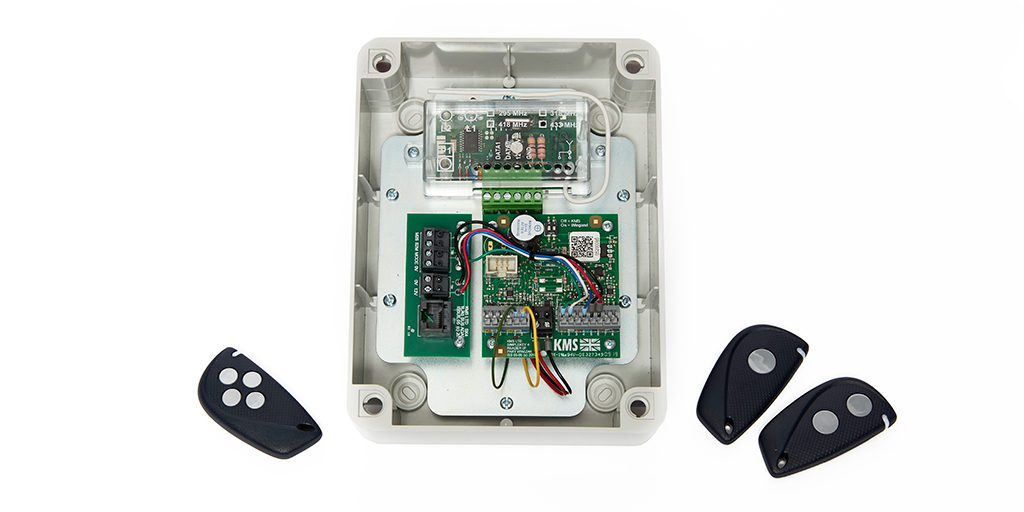

Boxed Long Range Radio Receiver

Technical Specification

The Long Range Radio Receiver and handheld Transmitters (Clickers) allows authorised users to open barriers and gates etc that control access into car parks without having to leave their cars. They are also particular useful for electric buggy users to open buggy stores or other communal doors. The transmitters ease of use can make a major difference to residents lives.

Single or multiple entrance control
Simple bus connections using Cat 5
Spare channel for conventional proximity reader
Up to 100m away from SimpleKey 4 controller or extension kit
IP56 Plastic enclosure. (L × W × H): 190 × 140 × 70mm
