MAIN FEATURES

  • Handset with magnetic hang-up

  • White indication LED

  • AUX2 for auxiliary functions and call to the porter

  • Automatic door-opener function with weekly scheduling

  • Wall mounted.

  • It includes a bracket for wall mounting on horizontal or vertical 503 box, on 506E box and Ø 60 mm round box.

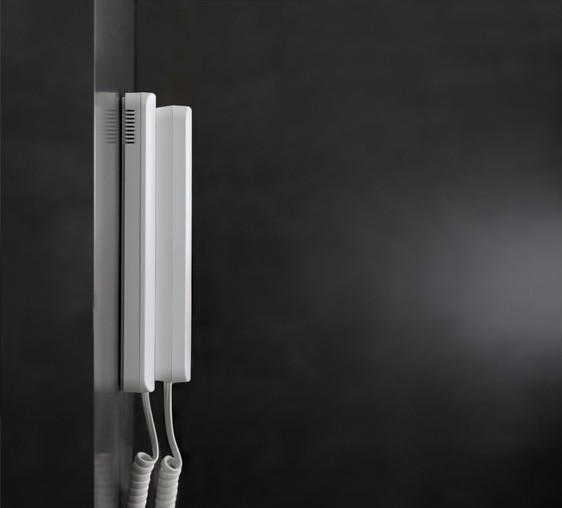

AGT is the handset intercom characterized by the essential lines and ergonomic handset with magnetic hang-up that eliminates the risk of falling or incomplete contact.

MODELS AGT A AGT A EVO AGT A200 AGT A200 EVO AGT A200 K
Dimensions (mm) 116 x 190 x 44,5 116 x 190 x 44,5 116 x 190 x 50 116 x 190 x 50 116 x 190 x 50
Power supply by BUS (V) 15 ÷ 20 DC 15 ÷ 20 DC - - -
Absorption by BUS (mA) 30 30 - - -
Consumption in stand-by mode (mA) <1 <1 - - -
Operating temperature (°C) +5 ÷ +40 +5 ÷ +40 +5 ÷ +40 +5 ÷ +40 +5 ÷ +40
Protection rating (IP) 30 30 30 30 30
Color White White White White White

OUR RANGE

Handset intercoms for X1 systems

840CA-0040

AGT A

Handset intercom with soft-touch buttons, 1 programmable AUX button, white. Equipped with button for ringtone adjustment/exclusion.Wall-mounted intercom with 3 main soft-touch buttons for door opening, programmable auxiliary control and ringtone adjustment/exclusion (with signaling LED when excluded). It allows manging the "gate opener" function and displays the status of the gate controlled by means of a signaling LED. Prearranged for wall installation on horizontal and vertical 503 box and on round Ø 60 mm box. Compatible with the X1 and XIP systems.

840CA-0050

AGT A EVO

Handset intercom with soft-touch buttons, 1 programmable AUX button and 4 buttons for intercom calls, white. Equipped with button for ringtone adjustment/exclusion.Wall-mounted intercom with 3 main soft-touch buttons for door opening, programmable auxiliary control and ringtone adjustment/exclusion (with signaling LED when excluded). Suitable for multi-user systems as it allows up to 6 intercom calls and the sending of the "Panic" signal for the porter to call for help. It allows manging the "gate opener" function and displays the status of the gate controlled by means of a signaling LED. Prearranged for wall installation on horizontal and vertical 503 box and on round Ø 60 mm box. Compatible with the X1 and XIP systems.

Entry phone with handset for 200 systems

840CA-0010

AGT A200

White handset entry phone.Wall-mounted intercom with 1 button for door opening. Prearranged for wall installation on horizontal and vertical 503 box and on round Ø 60 mm box. Compatible with 200 system.

840CA-0020

AGT A200 EVO

Handset intercom with 2 AUX buttons and 4 buttons for intercom calls, white.Wall-mounted intercom with 3 main buttons for door opening and 2 programmable auxiliary controls. Equipped with side lever for ringtone adjustment/exclusion (with indicator LED when excluded). Suitable for multi-user systems as it allows up to 6 intercom calls (4 using the dedicated buttons plus 2 using the AUX buttons, if free from other functions). Configurable by means of a dedicated jumper to manage the conversation privacy. Prearranged for wall installation on horizontal and vertical 503 box and on round Ø 60 mm box. Compatible with 200 system.

840CA-0030

AGT A200 K

Handset intercom with 2 AUX buttons, white.Wall-mounting intercom with 3 main buttons for door opening and two auxiliary controls, one of which is a switch with latch for automation control with gate status indication. Equipped with side lever for ringtone adjustment/exclusion (with indicator LED when excluded). Prearranged for wall installation on horizontal and vertical 503 box and on round Ø 60 mm box. Compatible with 200 system.

Accessories

840XC-0140

AGT KT A

Desktop stand for intercom indoor receivers of the AGT A, Agata Audio and Perla Audio series.Plexiglass 10 mm-thick stand, supplied with white RJ45 cable and terminal board cover with PMMA laminate - metallic gray.
