GARD PT
- The ideal solution for passage ways with heavy transit flows
Passage width clearance |
MCBF |
Use |
Speed |
|---|---|---|---|
Up to 3.8 m |
4 million cycles |
Continuous operation |
From 1.2 to 4 sec |
La nostra gamma
-

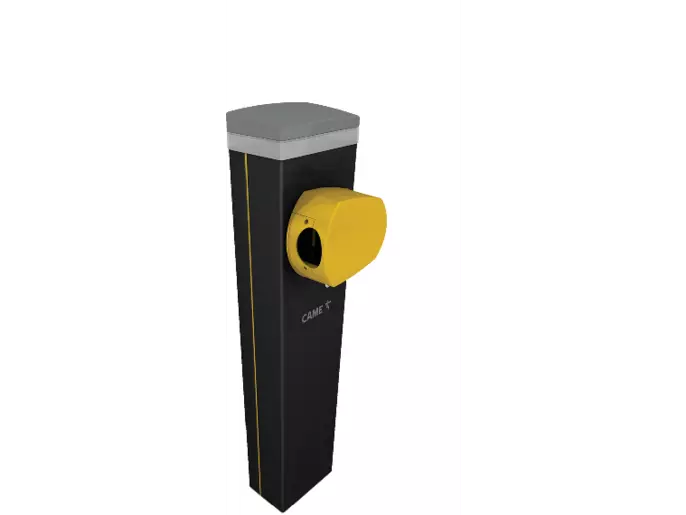

803BB-0070
GPT40AGS
Technology
Acciaio zincato RAL 7024
- 36 V
- CAME Connect
- Encoder
- EN Tested
- Brushless
Main characteristics
- Brushless motor for high performance and silent operation.
- Continuous use tested for 4 million cycles (MCBF – mean cycle between failures).
- Modern design with painted aluminium cabinet with rough finish.
- Available with high visibility red/green LEDs on the crown and on both sides of the boom.
- Boom casing for protection against shearing in opening and closing.
- Available accessory for boom safety release in case of impact for high traffic applications.
- Control board with display.
- Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.
Operational limits
| Models | Max. length of leaf (m) | Max. weight of leaf (kg) | Lunghezza / Peso max anta | Lunghezza / Peso max anta | Lunghezza / Peso max anta | Lunghezza / Peso max anta | Lunghezza / Peso max anta | Lunghezza / Peso max anta | Lunghezza / Peso max anta | Lunghezza / Peso max anta | Lunghezza / Peso max anta | Max. leaf opening (°) | Max. surface of the door (m²) | Max. traction force (N) | H max. anta (m) – presa diretta | H max. anta (m) – trasmissione a catena | H max. anta (m) – portoni scorrevoli | Lunghezza / Peso max. (anta singola) | Lunghezza / Peso max. (anta singola) | Lunghezza / Peso max. (anta battente) | Lunghezza / Peso max. (anta battente) | Max. net clearance width (m) | Max. range of radio (m) | Max range of infrared beam (m) | Max clearance width of parking space (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 803BB-0070 | m / kg | m / kg | m / kg | m / kg | m / kg | m / kg | m / kg | m / kg | m / kg | m / kg | m / kg | m / kg | m / kg | 3,8 |
Dati tecnici
| Models | Power supply (V) | Power supply to motor (V) | Power (W) | Assorbimento di corrente (A) | Assorbimento max. di corrente (A) | Alimentazione max. (V) | Assorbimento di corrente a 24 V (mA) | Crown turns (rpm) | Duty/cycle (%) | Forza (N) | Velocità di manovra max. (m/min) | Maneuvering time at 90° (s) | Cycles/hour | Manouvering speed (m/min) | Pinion module | Reduction ratio (i) | IP Protection rating | Operating temperature (°C) | Temperatura di stoccaggio (°C) | Motor’s heat protection (°C) | Length (mm) | Package dimensions (mm) | Weight (Kg) | Torque (Nm) | Rpm speed (turns/min) | Peso sollevato (kg)* | Duration of operation (min) | Combinations | Radio signal frequency (Mhz) | Batteries | Material | Frequenza radio Bluetooth (GHz) | Maximum speed measured at the end of the leaf (m/min) | Norme di prodotto | Conformità alle direttive | Assorbimento max. di corrente (mA) | Wireless Standard | Container material | Umidità relativa in funzionamento (%) | Temperature reading precision (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 803BB-0070 | 230 AC | 36 DC | 350 | 1,5 | SERVIZIO CONTINUO o INTENSIVO* | 1,2 ÷ 4 | 54 | -20 ÷ +55 (-30 with item 803XA-0610) ÷ | ÷ | 80 (senza molle) 140 (con molle) | x |
- * Continuous service with springs and with rod up to 3.8 m, intensive service without springs and with rod up to 2.5 m
