MAIN FEATURES

  • Satin finish anodized natural aluminum finish

  • A unique design free of the typical holes for the speaker

  • Direct connection to an analogue camera (X1 audio)

  • High efficiency illuminator with anti-glare diffuser

  • Sound and visual alerts

  • HD resolution and High Dynamic Range (HDR) technology

  • Blue or white backlit tag holders with brightness settings

  • MiniUSB front panel for firmware updating and programming

  • Up to 98 button calls and unlimited digital calls

MTM is an extremely extensive modular range: it is furnished with modules that function on 5 different systems and that allow numerous functions to be performed. The basic design makes the external unit attractive on all surfaces and, at the same time, functional in daily use. The aluminium satin finishes ensure brightness and long duration, while the attention to the details enabled small refinements such as the elimination of the speaker holes and the dual colour backlighting of the keys.

MODELS MTMV/01 MTMV/08 MTMV/IP MTMA/Connect MTMA/01 MTMAL/01 MTMA/08 MTMA/IP MTMA/200 MTM8C MTM8C/200 MTMBFVS MTMKB MTMDY MTMRFID MTMMI MTMMC MTMNA
Power supply (V) 16 ÷ 18 DC 14 ÷ 18 DC 12 ÷ 24 DC 12 ÷ 24 AC - DC 16 ÷ 18 DC 14 ÷ 18 DC 14 ÷ 18 DC 12 ÷ 24 DC 12 DC 10.7 - 18 DC 14 - 18 AC 10.7-18 DC 10.7-18 DC 10.7-18 DC 12 ÷ 24 DC 10.7-18 DC - 12 - 24 AC/DC
PoE power supply - - IEEE 802,3af (W) - - - - IEEE 802,3af (W) - - - - - - - - - -
Consumption in stand-by mode (mA) 70 30 70 65 70 65 30 70 4 - 15 20 20 55 35 - - 35
Max. absorption (mA) 220 120 250 180 220 200 70 250 60 25 15 55 55 250 90 25 - 90
Operating temperature (°C) -25 ÷ +55 -25 ÷ +55 -25 ÷ +55 -25 ÷ +55 -25 ÷ +55 -25 ÷ +55 -25 ÷ +55 -25 ÷ +55 -25 ÷ +55 -25 ÷ +55 -25 ÷ +55 -25 ÷ +55 -25 ÷ +55 -25 ÷ +55 -25 ÷ +55 -25 ÷ +55 - -25 ÷ +55
Protection rating (IP) 54 54 54 54 54 54 54 54 54 54 54 54 54 54 54 - 54 54
Video standard PAL/NTSC PAL/NTSC H.264 - - - - - - - - - - - - - - -

OUR RANGE

Electronic audio modules

840AD-0010

MTMA/Connect

The module is capable of making calls in hands-free mode, to mobile and landline telephone numbers by pressing call buttons or typing in codes on MTMKB keypads.From the telephone, via the numeric keypad in communication or via the 'dial to open' function, the door can be opened or the AUX relay activated.Supports remote configuration and management via CONNECT SetUp APP and CAME Connect portal. Requires CAME Key for initial installation.Enables connection and control of up to 2 CAME automations and provides gateway functionality. Supports sending commands to entrance panels and automations via DTMF tones and APP Automation.

Download FASCICOLO MTMA/Connect

60020010

MTMA/01

Intercom module for X1 systems.Electronic module with techno-polymer body and 2 call buttons with double, blue or white, namecard backlighting. Featuring a local control for electric lock, auxiliary contact (1A, 30V max), inputs for door lock release button and for door status indication (programmable I/O), output for activation of outdoor cameras (programmable I/O). With input for outdoor analog video camera. The front is equipped with LEDs for visual indication of the system status. It allows to adjust the audio volume of the microphone and speaker and the activation time of the electric lock. Manual or PC programming via MINI USB connector on the front. To finish off with intercom front panel. When combined with the corresponding front panel, it guarantees IP54 water and dust protection.

Download FASCICOLO RES 75 OHM MULTI00 A5
Download FASCICOLO INST. MTMA01-V01 MULTI4A A3 (IT, EN, FR, RU)
Download FASCICOLO PROGRAMMAZIONE MTMA01-MTMV01 MULTI4 A5 (IT, EN, FR, RU)
Download Dichiarazione di Conformità - MTMA/01 ()

60020020

MTMAL/01

Lite intercom module for X1 systems.Electronic module with techno-polymer body and 2 call buttons with blue name tag backlighting. With local control for electric lock, input for door lock release button, programmable I/O auxiliary output, programmable I/O output for enabling outdoor video cameras. It allows to adjust the audio volume of the microphone and speaker and the activation time of the electric lock. Manual programming. To finish off with lite intercom front panel. Only for creating push button entry panels and can power MTMRFID, MTMNA access control modules, and only if configured in Master mode. When combined with the corresponding front panel, it guarantees IP54 water and dust protection.

Download FASCICOLO PROG. MTMAL01 MULTI4 A5 (IT, EN, FR, RU)
Download FASCICOLO INST. MTMAL01 MULTI4A A4 (IT, EN, FR, RU)
Download FASCICOLO INSTALLAZIONE MTMA/IP-MTMV/IP MULTI4A A3 (IT, EN, FR, RU)
Download Dichiarazione di Conformità - MTMAL/01 ()

60020210

MTMA/200

Intercom modules for 200 systems.Electronic module with techno-polymer body and 2 call buttons with blue name tag backlighting. It allows to adjust the audio volume of the microphone and speaker. Expandable only with the MTM8C/200 call module for 200 systems. To finish off with lite intercom front panel. When combined with the corresponding front panel, it guarantees IP54 water and dust protection.

Download FASCICOLO MTMA200-MTM8C200 MULTI4A A3 (IT, EN, FR, RU)
Download 60020210 DATASHEET
Download Dichiarazione di Conformità - MTMA/200 ()

60020040

MTMA/IP

Intercom modules for IP360 systems.Electronic module with techno-polymer body and 2 call buttons with double, blue or white, namecard backlighting. Featuring a local control for electric lock, auxiliary contact (1A, 30V max), inputs for door lock release button and for door status indication (programmable I/O), output for activation of outdoor cameras (programmable I/O). RJ45 port for network, PoE or local connection. The front is equipped with LEDs for visual indication of the system status. On-board web server for configuring and updating firmware. Can be manually programmed. To be completed with a video intercom front panel. When combined with the corresponding front panel, it guarantees IP54 water and dust protection.

Download FASCICOLO INSTALLAZIONE MTMA/IP-MTMV/IP MULTI4A A3 (IT, EN, FR, RU)
Download FASCICOLO CONFIGURAZIONE MTMA/IP-MTMV/IP MULTI4 A5 (IT, EN, FR, RU)
Download 60020040 DATASHEET
Download Dichiarazione di Conformità - MTMA/IP ()

60020420

MTMA/08

Intercom modules for XIP systems.Electronic module with techno-polymer body and 2 call buttons with double, blue or white, namecard backlighting. Featuring a local control for electric lock, auxiliary contact (1A, 30V max), inputs for door lock release button and for door status indication (programmable I/O), output for activation of outdoor cameras (programmable I/O). Dip-switch for adapting the line impedance. The front is equipped with LEDs for visual indication of the system status. It allows to adjust the audio volume of the microphone and speaker and the activation time of the electric lock. Manual or PC programming via MINI USB connector on the front. To be completed with a video intercom front panel. When combined with the corresponding front panel, it guarantees IP54 water and dust protection.

Download FASCICOLO INST. MTMA08-V08 MULTI4A A3 (IT, EN, FR, RU)
Download FASCICOLO PROGRAMMAZIONE MTMA/08-MTMV/08 MULTI4 A5 (IT, EN, FR, RU)
Download 60020420 DATASHEET
Download Dichiarazione di Conformità - MTMA/08 ()

Electronic video modules

62030010

MTMV/01

Intercom video modules for X1 systems.Electronic module with techno-polymer body and 2 call buttons with double, blue or white, namecard backlighting. PAL/NTSC video camera sensor with 680x512 pixel resolution and built-in microprocessor for digital signal processing. Wide-eye lens with 100° horizontal and 82° vertical opening and digital zoom adjustment. Even illumination of the subject with 2 high-efficiency white LEDs and anti-glare diffuser. Featuring a local control for electric lock, auxiliary contact (1A, 30V max), inputs for door lock release button and for door status indication (programmable I/O), output for activation of outdoor cameras (programmable I/O). The front is equipped with LEDs for visual indication of the system status. It allows to adjust the audio volume of the microphone and speaker and the activation time of the electric lock. Manual or PC programming via MINI USB connector on the front. To be completed with a video intercom front panel. When combined with the corresponding front panel, it guarantees IP54 water and dust protection.

Download FASCICOLO INST. MTMA01-V01 MULTI4A A3 (IT, EN, FR, RU)
Download FASCICOLO PROGRAMMAZIONE MTMA01-MTMV01 MULTI4 A5 (IT, EN, FR, RU)
Download FASCICOLO INST. MTMA01-V01 MULTI4A A3 (IT, EN, FR, RU)
Download FASCICOLO PROGRAMMAZIONE MTMA01-MTMV01 MULTI4 A5 (IT, EN, FR, RU)
Download 62030010 DATASHEET
Download Dichiarazione di Conformità - MTMV/01 ()

62030020

MTMV/IP

Intercom video modules for IP360 systems.Electronic module with techno-polymer body and 2 call buttons with double, blue or white, namecard backlighting. Video camera sensor with HD 1280x720 resolution and HDR technology, plus built-in microprocessor for digital signal processing. Ultra wide-eye grand angle lens with 130° horizontal and 95° vertical opening and digital zoom adjustment. Even illumination of the subject with 2 high-efficiency white LEDs and anti-glare diffuser. Featuring a local control for electric lock, auxiliary contact (1A, 30V max), inputs for door lock release button and for door status indication (programmable I/O), output for activation of outdoor cameras (programmable I/O). RJ45 port for network, PoE or local connection. The front is equipped with LEDs for visual indication of the system status. On-board web server for configuring and updating firmware. Can be manually programmed. To be completed with a video intercom front panel. When combined with the corresponding front panel, it guarantees IP54 water and dust protection.

Download FASCICOLO CONFIGURAZIONE MTMA/IP-MTMV/IP MULTI4 A5 (IT, EN, FR, RU)
Download 62030020 DATASHEET
Download Dichiarazione di Conformità - MTMV/IP ()

62030060

MTMV/08

Intercom video modules for XIP systems.Electronic module with techno-polymer body and 2 call buttons with double, blue or white, namecard backlighting. PAL/NTSC 680x512 resolution video camera sensor with built-in microprocessor for digital signal processing. Wide-eye lens with 100° horizontal and 82° vertical opening and digital zoom adjustment. Even illumination of the subject with 2 high-efficiency white LEDs and anti-glare diffuser. Featuring a local control for electric lock, auxiliary contact (1A, 30V max), inputs for door lock release button and for door status indication (programmable I/O), output for activation of outdoor cameras (programmable I/O). Dip-switch for adapting the line impedance. The front is equipped with LEDs for visual indication of the system status. It allows to adjust the audio volume of the microphone and speaker and the activation time of the electric lock. Manual or PC programming via MINI USB connector on the front. To be completed with a video intercom front panel. When combined with the corresponding front panel, it guarantees IP54 water and dust protection.

Download FASCICOLO INST. MTMA08-V08 MULTI4A A3 (IT, EN, FR, RU)
Download FASCICOLO PROGRAMMAZIONE MTMA/08-MTMV/08 MULTI4 A5 (IT, EN, FR, RU)
Download 62030060 DATASHEET
Download Dichiarazione di Conformità - MTMV/08 ()

Calls module

60020030

MTM8C

8-call module.Electronic module with techno-polymer body, 8 call buttons and 16 LEDs for the double blue or white backlit name tags. Adjustable color and brightness of the LEDs using the main modules. To finish off with button front-plate. When combined with the corresponding front panel, it guarantees IP54 water and dust protection.

Download 60020030 DATASHEET ()
Download Dichiarazione di Conformità - MTM8C ()

60020220

MTM8C/200

8-call module for 200 systems.Electronic module with techno-polymer body, 8 call buttons and 8 LEDs for the double blue or white backlit name tags. Compatible only with the MTM8C/200 call module for 200 systems. To finish off with button front-plate. When combined with the corresponding front panel, it guarantees IP54 water and dust protection.

Download 60020220 DATASHEET ()
Download Dichiarazione di Conformità - MTM8C/200 ()

Electronic expansion modules

60020390

MTMBFVS

Hearing impaired and voice synthesis moduleElectronic module with techno-polymer body, equipped with a loudspeaker used for the playing back system voice messages. It has an audio-frequency induction system for hearing aids, in the "T" position. To finish off with the hearing impaired module. When combined with the corresponding front panel, it guarantees IP54 water and dust protection.

Download FASCICOLO MTMBFVS MULTI4A A4 (IT, EN, FR, RU)
Download 60020390 DATASHEET

60020230

MTMKB

Digital call keypad moduleElectronic module with techno-polymer body, with alphanumeric keypad with 12 buttons and double blue or white backlighting. Adjustable color and brightness of the LEDs using the main modules. Key 0 to 9 for entering the code and 2 other keys for the main functions: activate call and confirm access code. To finish off with digital call module front panel. When combined with the corresponding front panel, it guarantees IP54 water and dust protection.

Download FASCICOLO MTMKB MULTI4 A5 (IT, EN, FR, RU)
Download 60020230 DATASHEET
Download Dichiarazione di Conformità - MTMKB ()

60020240

MTMDY

Display module.Electronic module with techno-polymer body and blue or white backlit LCD display. Color and brightness adjustment from the menu or via the main modules. It allows you to display a phonebook with up to 7200 names and search in scroll mode or alphabetic block mode. It allows direct calling to the extensions through the central button. To finish off with display front module. When combined with the corresponding front panel, it guarantees IP54 water and dust protection.

Download FASCICOLO MTMDY MULTI4 A5 (IT, EN, FR, RU)
Download 60020240 DATASHEET
Download Dichiarazione di Conformità - MTMDY ()

60020250

MTMRFID

RFID access control module.Electronic module with techno-polymer body equipped with RFID reader and 13.56 MHz Mifare technology, with blue or white backlighting. Adjustable color and brightness of the LEDs using the main modules. It allows the addition and removal of badges/tags directly from the reader itself or through a PC tool. It autonomously manages up to 6500 proximity cards. Access allowed/not allowed via buzzer and green/red signal LED. It can be installed either in stand alone mode or with the XIP or IP360 system via CAN bus. It is equipped with 2 relay contacts for door-openings and 2 inputs for directly activating the relays. To finish off with the RFID module front panel. When combined with the corresponding front panel, it guarantees IP54 water and dust protection.

Download FASCICOLO INSTALLAZIONE MTMRFID MULTI4A A3 (IT, EN, FR, RU)
Download FASCICOLO CONFIGURAZIONE MTMRFID MULTI4 A5 (IT, EN, FR, RU)
Download 60020250 DATASHEET
Download Dichiarazione di Conformità Radio - MTMRFID ()

60020290

MTMMI

Information module.Electronic module with techno-polymer body equipped with LED for the double blue or white backlighting of the information tag. It allows to adjust color and brightness by using the main modules. To finish off with information module front-plate. When combined with the corresponding front panel, it guarantees IP54 water and dust protection.

Download 60020290 DATASHEET ()
Download Dichiarazione di Conformità - MTMMI ()

60020310

MTMMC

Hidden module with front panel.Module with techno-polymer body and blind front panel made of natural anodized satin aluminum. Impact protection degree IK07 and water and dust protection degree IP54.

Download 60020310 DATASHEET ()

    60020380

    MTMNA

    Keypad module with access control.Electronic module with techno-polymer body, with alphanumeric keypad with 12 buttons and double blue or white backlighting. Adjustable color and brightness of the LEDs using the main modules. Key 0 to 9 for entering the code and 2 other keys for confirming. It autonomously manages up to 3500 numeric codes. Access allowed/not allowed via buzzer and green/red signal LED. It can be installed either in stand alone mode or with the XIP or IP360 system via CAN bus. It is equipped with 2 relay contacts for door-openings and 2 inputs for directly activating the relays. To finish off with the access control keypad module front panel. When combined with the corresponding front panel, it guarantees IP54 water and dust protection.

    Download FASCICOLO PROGRAMMAZIONE MTMNA MULTI4 A5 (IT, EN, FR, RU)
    Download FASCICOLO INSTALLAZIONE MTMNA MULTI4A A3 (IT, EN, FR, RU)
    Download 60020380 DATASHEET
    Download Dichiarazione di Conformità - MTMNA ()

    Front panels

    60020050

    MTMFA0P

    Blind intercom front panel made of natural anodized satin finish aluminum.With polycarbonate brace, it features pictograms to indicate the status of the system. To pair up with an intercom module. Shock protection rating IK07.

      60020060

      MTMFA1P

      1-button intercom front panel made of natural anodized satin finish aluminum.With polycarbonate brace, it features pictograms to indicate the status of the system and 1 button with name tag size 66x15 mm. To pair up with an intercom module. Shock protection rating IK07.

        60020070

        MTMFA2P

        2-button intercom front panel made of natural anodized satin finish aluminum.With polycarbonate brace, it is equipped with pictograms to indicate the status of the system and 2 double rows of buttons with 55x15 mm name tags. To pair up with an intercom module. Shock protection rating IK07.

          60020080

          MTMFAL0P

          Lite blind intercom front panel made of natural anodized satin finish aluminum.With polycarbonate brace. To pair up with the MTMAL/01 lite intercom module. Shock protection rating IK07.

            60020090

            MTMFAL1P

            1-button lite intercom front panel made of natural anodized satin finish aluminum.With polycarbonate brace. It comes with 1 button and a 66x15 mm name tag. To pair up with the MTMAL/01 lite intercom module. Shock protection rating IK07.

              60020100

              MTMFAL2P

              2-button lite intercom front panel made of natural anodized satin finish aluminum.With polycarbonate brace. With 2 buttons, in double rows, and 55x15 mm name tags. To pair up with the MTMAL/01 lite intercom module. Shock protection rating IK07.

                62030030

                MTMFV0P

                Blind video intercom front panel made of natural anodized satin finish aluminum.With polycarbonate brace, it features pictograms to indicate the status of the system. To pair up with an intercom module. Shock protection rating IK07.

                  62030040

                  MTMFV1P

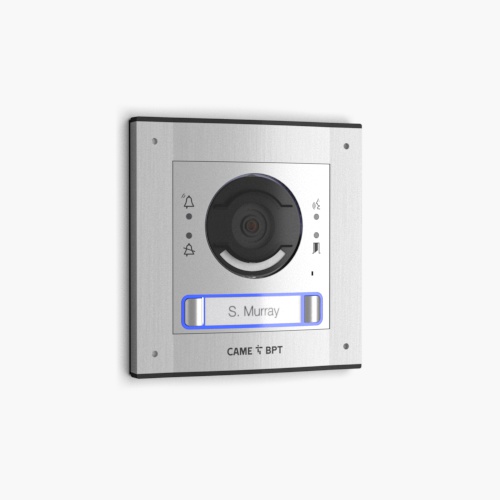

                  1-button video intercom front panel made of natural anodized satin finish aluminum.With polycarbonate brace, it features pictograms to indicate the status of the system and 1 button with name tag size 66x15 mm. To pair up with an intercom module. Shock protection rating IK07.

                    62030050

                    MTMFV2P

                    2-button video intercom front panel made of natural anodized satin finish aluminum.With polycarbonate brace, it is equipped with pictograms to indicate the status of the system and 2 double rows of buttons with 55x15 mm name tags. To pair up with an intercom module. Shock protection rating IK07.

                      60020110

                      MTMF2P

                      2-button call module front panel made of natural anodized satin finish aluminum.With polycarbonate brace and 2 single row buttons with name tag size 66x15 mm. To pair with the MTM8C or MTM8C/200 call module. Shock protection rating IK07.

                        60020120

                        MTMF3P

                        3-button call module front panel made of natural anodized satin finish aluminum.With polycarbonate brace and 3 single row buttons with name tag size 66x15 mm. To pair with the MTM8C or MTM8C/200 call module. Shock protection rating IK07.

                          60020130

                          MTMF4P

                          4-button call module front panel made of natural anodized satin finish aluminum.With polycarbonate brace and 4 single row buttons with name tag size 66x15 mm. To pair with the MTM8C or MTM8C/200 call module. Shock protection rating IK07.

                            60020140

                            MTMF8P

                            8-button call module front panel made of natural anodized satin finish aluminum.With polycarbonate brace and 8 double row buttons with name tag size 55 x 15 mm. To pair with the MTM8C or MTM8C/200 call module. Shock protection rating IK07.

                              60020260

                              MTMFRFID

                              RFID module front panel made of natural anodized satin finish aluminum.With polycarbonate brace. To pair with the MTMRFID module. Shock protection rating IK07.

                                60020270

                                MTMFKB

                                Keypad module front panel made of natural anodized satin finish aluminum.With polycarbonate brace. To pair with the MTMKB module. Shock protection rating IK07.

                                  60020280

                                  MTMFDY

                                  Display module front panel made of natural anodized satin finish aluminum.With polycarbonate brace. To pair with the MTMDY module. Shock protection rating IK07.

                                    60020300

                                    MTMFMI

                                    Information module front panel made of natural anodized satin finish aluminum.With polycarbonate brace. To pair with the MTMMI module. Shock protection rating IK07.

                                      60020910

                                      MTMFNA

                                      Access control keypad module front panel made of natural anodized satin finish aluminum.With polycarbonate brace. To pair with the MTMNA module. Shock protection rating IK07.

                                        60020920

                                        MTMFBF

                                        Hearing impaired and voice synthesis module made of natural anodized satin finish aluminum.With polycarbonate brace. To pair with the MTMBFVS module. Shock protection rating IK07.

                                          60020170

                                          MTMTP1M

                                          Frame and plaque for 1-module MTM.Black painted aluminum frame with cataphoresis finish ensures high resistance to corrosion and rust. Brushed anodized aluminum plaque.

                                          Download FASCICOLO INSTALLAZIONE MTM MULTI00 A4

                                            60020180

                                            MTMTP2M

                                            Frame and plaque for 2-module MTM.Black painted aluminum frame with cataphoresis finish ensures high resistance to corrosion and rust. Brushed anodized aluminum plaque.

                                            Download FASCICOLO INSTALLAZIONE MTM MULTI00 A4

                                              60020340

                                              MTMTP3M

                                              Frame and plaque for 3-module MTM.Black painted aluminum frame with cataphoresis finish ensures high resistance to corrosion and rust. Brushed anodized aluminum plaque.

                                              Download FASCICOLO INSTALLAZIONE MTM MULTI00 A4

                                                60020350

                                                MTMTP4M

                                                Frame and plaque for 4-module MTM.Black painted aluminum frame with cataphoresis finish ensures high resistance to corrosion and rust. Brushed anodized aluminum plaque.

                                                Download FASCICOLO INSTALLAZIONE MTM MULTI00 A4

                                                  Accessories

                                                  60020150

                                                  MTMSI1M

                                                  Recess-mounting box for 1-module MTM entry panels.Plastic recess-mounting box with 2 cable gland joints for installing side by side and with pre-punched holes for passing the cables.

                                                  Download FASCICOLO MTMSI1M-2M-3M-4M MULTI00 A4

                                                    60020160

                                                    MTMSI2M

                                                    Recess-mounting box for 2-module MTM entry panels.Plastic recess-mounting box with 2 cable gland joints for installing side by side and with pre-punched holes for passing the cables.

                                                    Download FASCICOLO MTMSI1M-2M-3M-4M MULTI00 A4

                                                      60020320

                                                      MTMSI3M

                                                      Recess-mounting box for 3-module MTM entry panels.Plastic recess-mounting box with 2 cable gland joints for installing side by side and with pre-punched holes for passing the cables.

                                                      Download FASCICOLO MTMSI1M-2M-3M-4M MULTI00 A4

                                                        60020330

                                                        MTMSI4M

                                                        Recess-mounting box for 4-module MTM entry panels.Plastic recess-mounting box with 2 cable gland joints for installing side by side and with pre-punched holes for passing the cables.

                                                        Download FASCICOLO MTMSI1M-2M-3M-4M MULTI00 A4

                                                          60020490

                                                          MTMTI1M

                                                          Rain flap for recess-mounting onto vertical, 1-module MTM entry panels.Painted metal sheeting rain ledge.

                                                          Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                            60020500

                                                            MTMTI2M

                                                            Rain flap for recess-mounting onto vertical, 2-module MTM entry panels.Painted metal sheeting rain ledge.

                                                            Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                              60020510

                                                              MTMTI3M

                                                              Rain flap for recess-mounting onto vertical, 3-module MTM entry panels.Painted metal sheeting rain ledge.

                                                              Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                                60020520

                                                                MTMTI4M

                                                                Rain flap for recess-mounting onto vertical, 4-module MTM entry panels.Painted metal sheeting rain ledge.

                                                                  60020530

                                                                  MTMTI1M2

                                                                  Rain flap for recess-mounting onto horizontal 2-module MTM entry panels.Painted metal sheeting rain ledge.

                                                                  Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                                    60020540

                                                                    MTMTI1M3

                                                                    Rain flap for recess-mounting onto horizontal 3-module MTM entry panels.Painted metal sheeting rain ledge.

                                                                    Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                                      60020550

                                                                      MTMTI1M4

                                                                      Rain flap for recess-mounting onto horizontal 4-module MTM entry panels.Painted metal sheeting rain ledge.

                                                                      Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                                        60020560

                                                                        MTMTI2M2

                                                                        Rain flap for recess-mounting onto 2 vertical and 2 horizontal MTM entry panels.Painted metal sheeting rain ledge.

                                                                        Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                                          60020570

                                                                          MTMTI3M2

                                                                          Rain flap for recess-mounting onto 3 vertical and 2 horizontal MTM entry panels.Painted metal sheeting rain ledge.

                                                                          Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                                            60020580

                                                                            MTMTI3M3

                                                                            Rain flap for recess-mounting onto 3 vertical and 3 horizontal MTM entry panels.Painted metal sheeting rain ledge.

                                                                            Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                                              60020190

                                                                              MTMSP1M

                                                                              Box with rain flap for wall-mounting vertical 1-module MTM entry panels.Wall-mounting box with metal sheeting rain ledge, with pre-punched holes for passing the cables and with wall-fastening screws.

                                                                              Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                                                60020200

                                                                                MTMSP2M

                                                                                Box with rain flap for wall-mounting vertical 2-module MTM entry panels.Wall-mounting box with metal sheeting rain ledge, with pre-punched holes for passing the cables and with wall-fastening screws.

                                                                                Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                                                  60020360

                                                                                  MTMSP3M

                                                                                  Box with rain flap for wall-mounting vertical 3-module MTM entry panels.Wall-mounting box with metal sheeting rain ledge, with pre-punched holes for passing the cables and with wall-fastening screws.

                                                                                  Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                                                    60020370

                                                                                    MTMSP4M

                                                                                    Box with rain flap for wall-mounting vertical 4-module MTM entry panels.Wall-mounting box with metal sheeting rain ledge, with pre-punched holes for passing the cables and with wall-fastening screws.

                                                                                    Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                                                      60020430

                                                                                      MTMSP1M2

                                                                                      Box with rain flap for wall-mounting horizontal 2-module MTM entry panels.Wall-mounting box with metal sheeting rain ledge, with pre-punched holes for passing the cables and with wall-fastening screws.

                                                                                      Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                                                        60020440

                                                                                        MTMSP1M3

                                                                                        Box with rain flap for wall-mounting horizontal 3-module MTM entry panels.Wall-mounting box with metal sheeting rain ledge, with pre-punched holes for passing the cables and with wall-fastening screws.

                                                                                        Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                                                          60020450

                                                                                          MTMSP1M4

                                                                                          Box with rain flap for wall-mounting horizontal 4-module MTM entry panels.Wall-mounting box with metal sheeting rain ledge, with pre-punched holes for passing the cables and with wall-fastening screws.

                                                                                          Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                                                            60020460

                                                                                            MTMSP2M2

                                                                                            Box with rain flap for wall-mounting 2 vertical and 2 horizontal MTM entry panels.Wall-mounting box with metal sheeting rain ledge, with pre-punched holes for passing the cables and with wall-fastening screws.

                                                                                            Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                                                              60020470

                                                                                              MTMSP3M2

                                                                                              Box with rain flap for wall-mounting 2 vertical and 3 horizontal MTM entry panels.Wall-mounting box with metal sheeting rain ledge, with pre-punched holes for passing the cables and with wall-fastening screws.

                                                                                              Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                                                                60020480

                                                                                                MTMSP3M3

                                                                                                Box with rain flap for wall-mounting 3 vertical and 3 horizontal MTM entry panels.Wall-mounting box with metal sheeting rain ledge, with pre-punched holes for passing the cables and with wall-fastening screws.

                                                                                                Download FASCICOLO MTMTI-MTMSP MULTI0 A3

                                                                                                  DOWNLOAD DOCUMENTS

                                                                                                  Register for full access to technical documentation and installer services

                                                                                                  REGISTER

                                                                                                  MAYBE YOU ARE INTERESTED IN...

                                                                                                  FUTURA

                                                                                                  Want to capture every detail when the doorbell rings? Choose Futura.

                                                                                                  MAYBE YOU ARE INTERESTED IN...

                                                                                                  AGT

                                                                                                  AGT is the handset intercom characterized by the essential lines and ergonomic handset with magnetic hang-up that eliminates the risk of falling or incomplete contact.

                                                                                                  MAYBE YOU ARE INTERESTED IN...

                                                                                                  BX

                                                                                                  Solution for sliding gates in residential settings

                                                                                                  MAYBE YOU ARE INTERESTED IN...

                                                                                                  FROG

                                                                                                  Concealed solution for applying in private homes or apartment buildings

                                                                                                  GLOBAL | EN

                                                                                                  CHOOSE YOUR COUNTRY

                                                                                                  Where do you come from?
