A single high-security ONE50EVO bollard can withstand the consecutive impacts of two 7,5T trucks travelling at 80 km/h. After the impact, the bollard remains functional and continues to ensure the security of the access point.
The ONE50EVO high-security bollard is designed to control access to sensitive sites and protect strategic access points from terrorist attacks.

CAME Urbaco is the first manufacturer in the world to have performed two crash tests on the same bollard according to the latest international standards.
The crash tests demonstrated the strength and high level of security of the ONE50EVO bollard, which remains operational even after having stopped several « ramming » trucks.

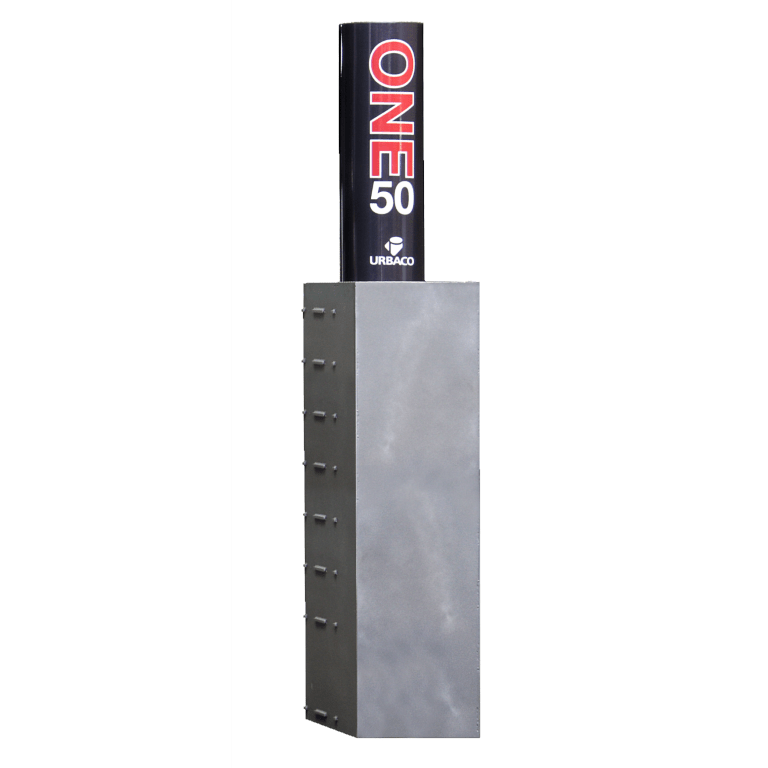

Rectractable ONE50 Evo

Use:    Regular to intensive passages
Material:    High-strength steel
Display device:    Class II reflective band (white)
Illuminated ring:    Leds (Red in Standard, White in Option)
Dimensions (mm):    Ø325 x H1000 (Above ground)
Motorizations:    Standard external hydraulic
External hydraulic E.F.O. (Emergency Fast Rising Operator)
Built-in hydraulic pump in motorisation
Standards:    ISO EN 124 - Class F900 (up to 90 tonnes) approved / In compliance with NFP98-310 standard / In compliance with the French PMR decree
Design:    CYLINDER

IWA 14-1:2013 Bollard V/7200[N2A]/48/90:0,0  PAS68:2013 Bollard V/7500[N2]/48/90:0,0/0,0

Crash test n°1: Certified IWA 14-1:2013 Bollard V/7200[N3C]/80/90:4,2*;
Impact energy: 1 776kJ

Certified PAS68:2013 Bollard V/7500[N3]/80/90:3,9/22,7*;
Impact energy: 1 776kJ

Crash test n°2: Certified IWA14-1:2013 Bollard V/7200[N2A]/80/90:2,9*;
Impact energy: 1 765kJ
