Gates automation / Swing gate operators / FROG PLUS / 001FROG-PM4

001FROG-PM4

Irreversible underground 230 V gearmotor with encoder and adjustable leaf-closing for swing gates with up to 5.5 m leaves that weighs up to 700 kg.

Catalogue

Depliant

Manuals and Certifications

Chiave	Valore	Valore	Valore	Valore	Valore	Valore	Valore	Valore	Valore
Max. length of leaf (m)	5.5	4.5	3.5	2.5	1.5
Max. weight of leaf (kg)	700	900	1100	1400	1800

230 V
Encoder

Gearmotor or automation with encoder.

Automation tested to be compliant with European standards for impact forces.

24 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

36 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

48 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

120V AC gear motor for US markets.

230 V AC gear motor.

230-400 V AC three-phase gear motor for industrial use. Guarantees greater starting torque.

Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.

This product is designed to fit the RIO System 2.0-series, 806SS-0040 snap-in card.

Product compatible with CXN BUS 2-wire connection technology.

Product equipped with BRUSHLESS technology.

From detached houses to apartment buildings, the X1 system can meet any requirement in terms of the number of internal branches, the distances involved in the system and the management of external stations.

From single dwellings to large residential complexes, the XIP system combines ease of installation with coverage over long distances. Both access control management and concierge services are integrated into the system.

The IP360 system uses Ethernet distribution as its main communication structure, ensuring an almost infinite extension of the system. It overcomes all the limitations of traditional video door entry systems, allowing maximum freedom of configuration.

The 4G system allows you to establish a connection with the called number thanks to the 4G network over unlimited distances. It is ideal in all applications where it is impossible to lay cables, allowing the installation of devices without any wiring, as only the power supply needs to be provided.

The 200 system is characterised by its great versatility: all the functions that can be implemented in the system are carried out by encoding on the same two conductors that carry the audio signal. The 200 system also only requires direct current power supply, which guarantees immunity from noise and humming on the audio.

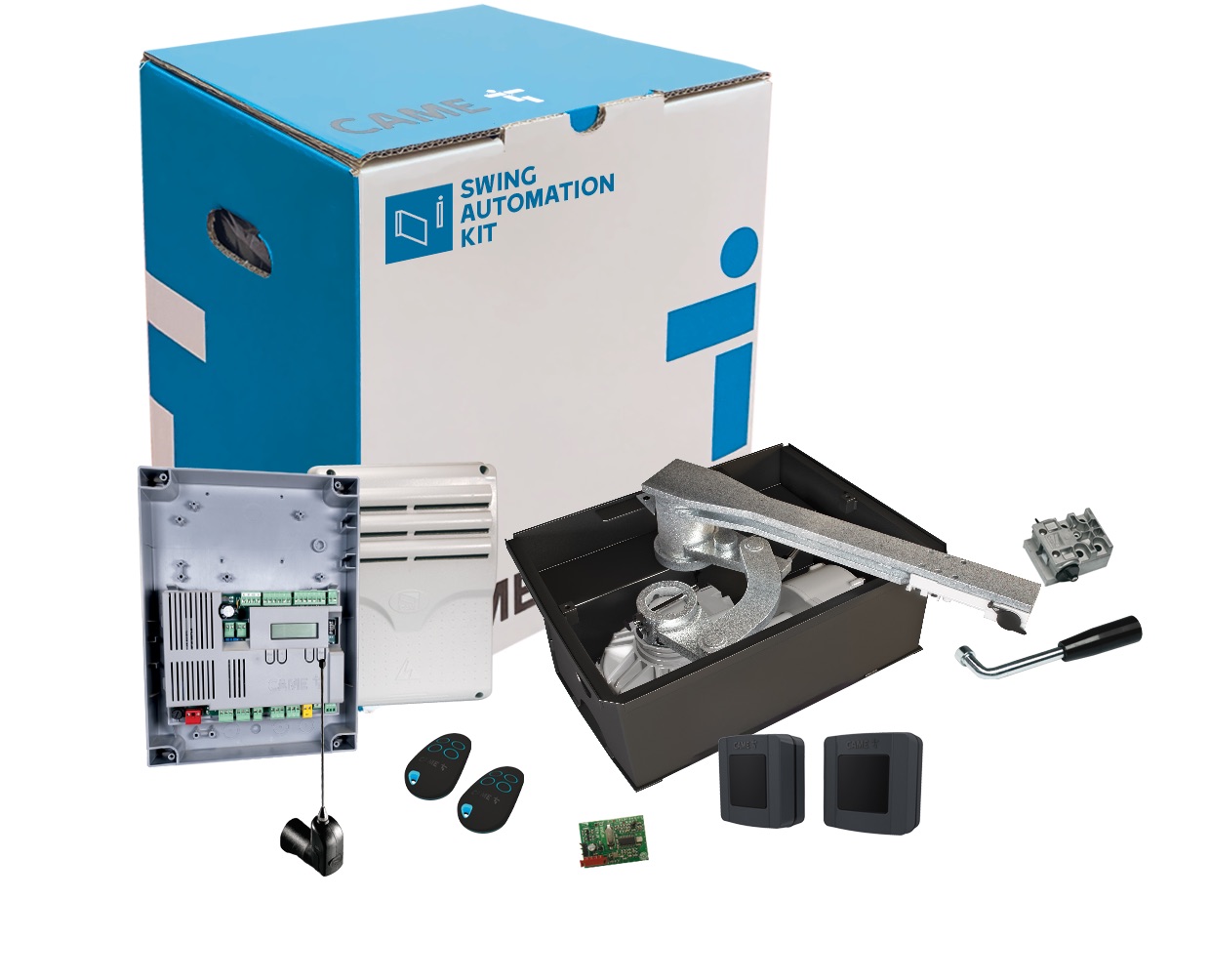

0U1BCS0073

FROG PLUS 230 V kit for a single gate up to 5m – FROG-PC Steel foundation case, Plug-in radio frequency card, Tuned antenna, ZLX230S control panel, DLX photocells, TOP Rolling Code transmitters x2, Key Release x2

001FROG-PM4

230 V irreversible underground gearmotor with encoder and adjustable leaf stop for swing gates up to 5.5 m and 700 kg

801QA-0130

ZLX230S control panel, more comprehensive and high-performing, featuring a graphic display, management of motors with and without encoder, and a protective cover.

806TF-0080

Pair of outdoor photocells 12 – 24 V AC – DC

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0270

Four-channel 433.92 MHz rolling code transmitter

801XA-0030

Unlocking device with custom key and EURO-DIN cylinder equipped with anti-lock system.

001FROG-PC

Steel foundation box with cataphoresis treatment.

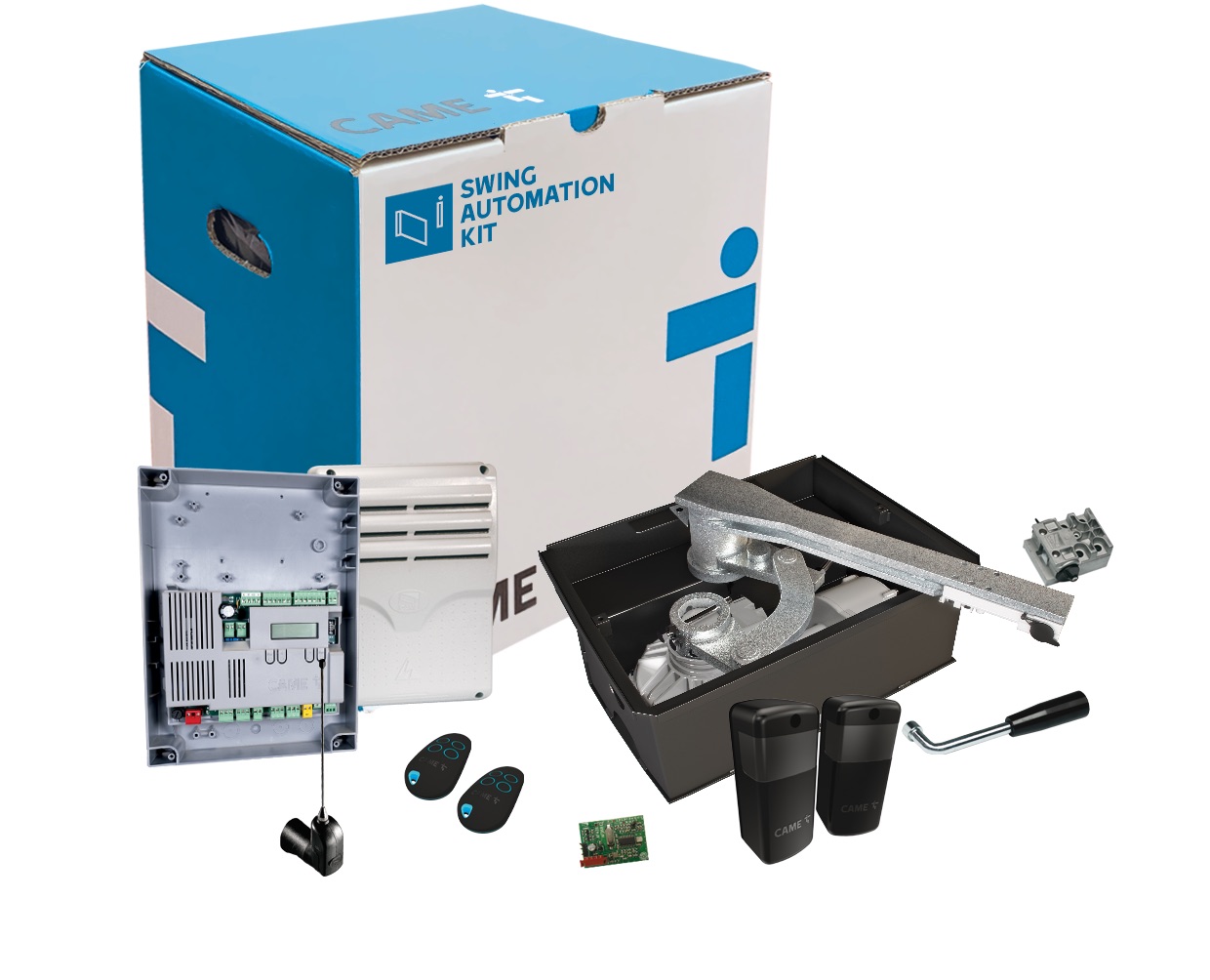

0U1BCS0083

FROG PLUS 230 V kit for a single gate up to 5m – FROG-PC Steel foundation case, Plug-in radio frequency card, Tuned antenna, ZLX230S control panel, DXR photocells, TOP Rolling Code transmitters x2, Key Release x2

001FROG-PM4

230 V irreversible underground gearmotor with encoder and adjustable leaf stop for swing gates up to 5.5 m and 700 kg

801QA-0130

ZLX230S control panel, more comprehensive and high-performing, featuring a graphic display, management of motors with and without encoder, and a protective cover.

806TF-0030

Pair of 12 – 24 V AC – DC outdoor adjustable photocells

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0270

Four-channel 433.92 MHz rolling code transmitter

801XA-0030

Unlocking device with custom key and EURO-DIN cylinder equipped with anti-lock system.

001FROG-PC

Steel foundation box with cataphoresis treatment.

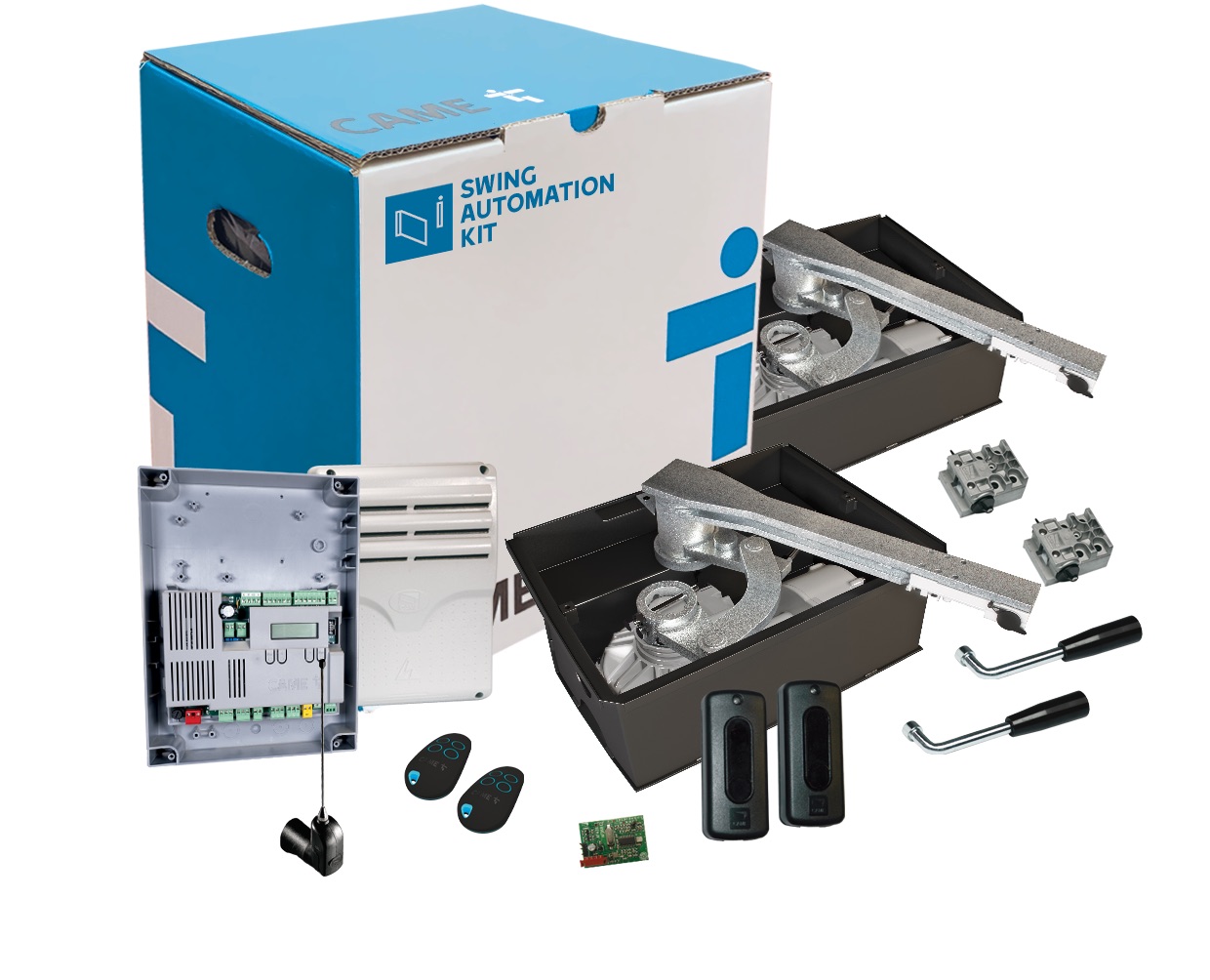

0U1BCS0071

FROG PLUS 230 V kit for a pair of gates up to 5.5m per leaf – FROG-PC Steel foundation case x2, Plug-in radio frequency card, Tuned antenna, ZLX230S control panel, DIR20 photocells, TOP Rolling Code transmitters x2, Key Release x2

001FROG-PM4

230 V irreversible underground gearmotor with encoder and adjustable leaf stop for swing gates up to 5.5 m and 700 kg

801QA-0130

ZLX230S control panel, more comprehensive and high-performing, featuring a graphic display, management of motors with and without encoder, and a protective cover.

001DIR20

Pair of 12 – 24 V AC – DC outdoor photocells

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0270

Four-channel 433.92 MHz rolling code transmitter

801XA-0030

Unlocking device with custom key and EURO-DIN cylinder equipped with anti-lock system.

001FROG-PC

Steel foundation box with cataphoresis treatment.

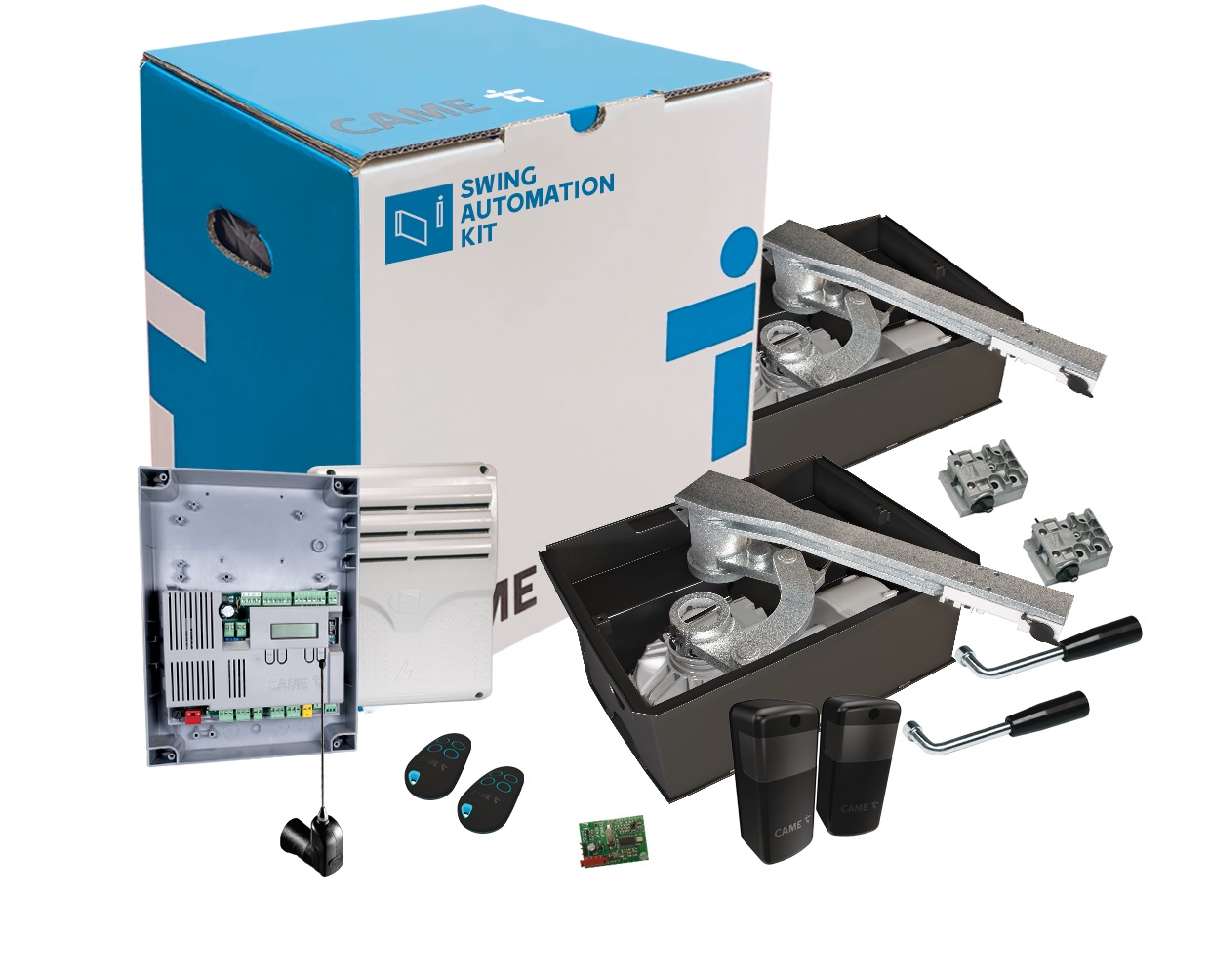

0U1BCS0082

FROG PLUS 230 V kit for a pair of gates up to 5.5m per leaf – FROG-PC Steel foundation case x2, Plug-in radio frequency card, Tuned antenna, ZLX230S control panel, DXR photocells, TOP Rolling Code transmitters x2, Key Release x2

001FROG-PM4

230 V irreversible underground gearmotor with encoder and adjustable leaf stop for swing gates up to 5.5 m and 700 kg

801QA-0130

ZLX230S control panel, more comprehensive and high-performing, featuring a graphic display, management of motors with and without encoder, and a protective cover.

806TF-0030

Pair of 12 – 24 V AC – DC outdoor adjustable photocells

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0270

Four-channel 433.92 MHz rolling code transmitter

801XA-0030

Unlocking device with custom key and EURO-DIN cylinder equipped with anti-lock system.

001FROG-PC

Steel foundation box with cataphoresis treatment.

Technical data

Dato tecnico	Valore
Power supply (V – 50/60 Hz)	230 AC
Power supply to motor (V)	230 AC
Absorption (A)	2,1
Power (W)	500
Maneuvering time at 90° (s)	30
Cycles/Hour	10
Operating temperature (°C)	-20 ÷ +55
Motor’s heat protection (°C)	150
Protection rating (IP)	67

Operational limits

Chiave	Valore	Valore	Valore	Valore	Valore	Valore	Valore	Valore	Valore
Max. length of leaf (m)	5.5	4.5	3.5	2.5	1.5
Max. weight of leaf (kg)	700	900	1100	1400	1800

Models	801MB-0140
LEAF OPENING (°)	A	B	C Max.	D	E
90	140	420	150	Min. 150	310
90	160 ÷ 180	380	150	Min. 150	310
110	200 ÷ 220	400	50	Min. 150	310

Complete your solution

Control panels

002ZM3EP

Multifunction control panel for swing gates with two leaves, graphic programming and alerts display, plus self-diagnosing safety devices and on-board radio decoding.

230 V
CAME Connect

Foundation box

001FROG-PC

Steel, cataphoresis treated foundation box, featuring release transmission, gate fastening brace and spring for adjusting the opening limit-switch point.
