Gates automation / Swing gate operators / AXO / 001AX3024

001AX3024

Irreversible 24 V gearmotor with encoder for swing gates with up to 3 m leaves that weighs up to 500 kg.

Chiave	Valore	Valore	Valore	Valore	Valore	Valore	Valore	Valore	Valore
Max. length of leaf (m)	3	2.5	2
Max. weight of leaf (kg)	500	600	800

24 V
Encoder
EN Tested

Gearmotor or automation with encoder.

Automation tested to be compliant with European standards for impact forces.

24 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

36 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

48 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

120V AC gear motor for US markets.

230 V AC gear motor.

230-400 V AC three-phase gear motor for industrial use. Guarantees greater starting torque.

Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.

This product is designed to fit the RIO System 2.0-series, 806SS-0040 snap-in card.

Product compatible with CXN BUS 2-wire connection technology.

Product equipped with BRUSHLESS technology.

From detached houses to apartment buildings, the X1 system can meet any requirement in terms of the number of internal branches, the distances involved in the system and the management of external stations.

From single dwellings to large residential complexes, the XIP system combines ease of installation with coverage over long distances. Both access control management and concierge services are integrated into the system.

The IP360 system uses Ethernet distribution as its main communication structure, ensuring an almost infinite extension of the system. It overcomes all the limitations of traditional video door entry systems, allowing maximum freedom of configuration.

The 4G system allows you to establish a connection with the called number thanks to the 4G network over unlimited distances. It is ideal in all applications where it is impossible to lay cables, allowing the installation of devices without any wiring, as only the power supply needs to be provided.

The 200 system is characterised by its great versatility: all the functions that can be implemented in the system are carried out by encoding on the same two conductors that carry the audio signal. The 200 system also only requires direct current power supply, which guarantees immunity from noise and humming on the audio.

0U1BCS0347

AXO 24 V kit for a pair of gates up to 3m per leaf – Plug-in radio frequency card, Tuned antenna, ZLX24SA control panel, DXR BUS photocells, TTS

001AX3024

24 V irreversible gearmotor with encoder up to 3 m and 500 kg

801QA-0060

230 V AC multifunction control panel for 24 V double-leaf swing gates with graphic display, self-diagnosis and management of advanced technologies

806TF-0110

Pair of surface-mount synchronized adjustable BUS CXN photocells

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0250

Four-channel 433.92 MHz rolling code transmitter

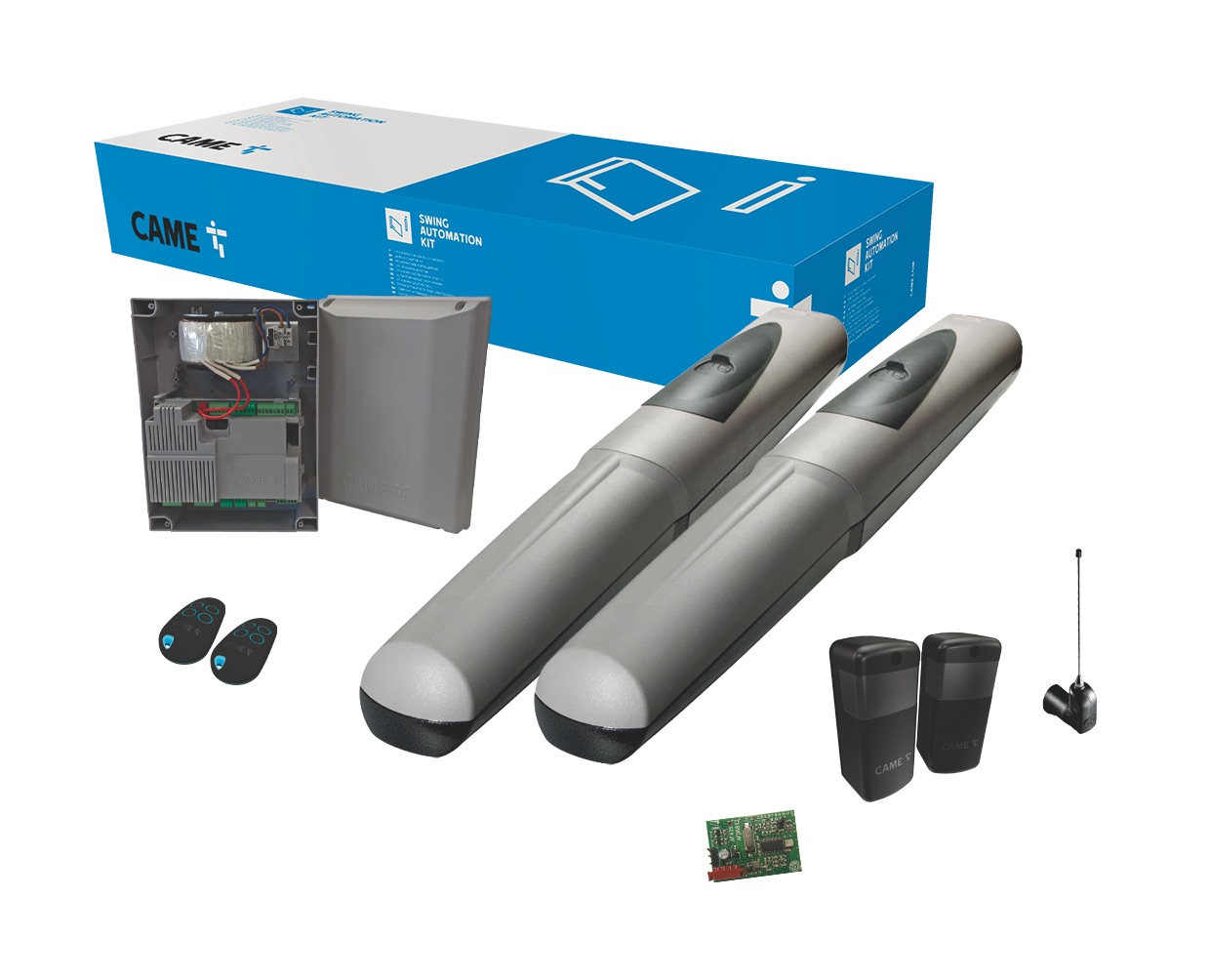

0U1BCS0346

AXO 24 V kit for a pair of gates up to 3m per leaf – Plug-in radio frequency card, Tuned antenna, ZLX24SA control panel, DXR photocells, TOP Rolling Code transmitters x2

001AX3024

24 V irreversible gearmotor with encoder up to 3 m and 500 kg

801QA-0060

230 V AC multifunction control panel for 24 V double-leaf swing gates with graphic display, self-diagnosis and management of advanced technologies

806TF-0030

Pair of 12 – 24 V AC – DC outdoor adjustable photocells

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0270

Four-channel 433.92 MHz rolling code transmitter

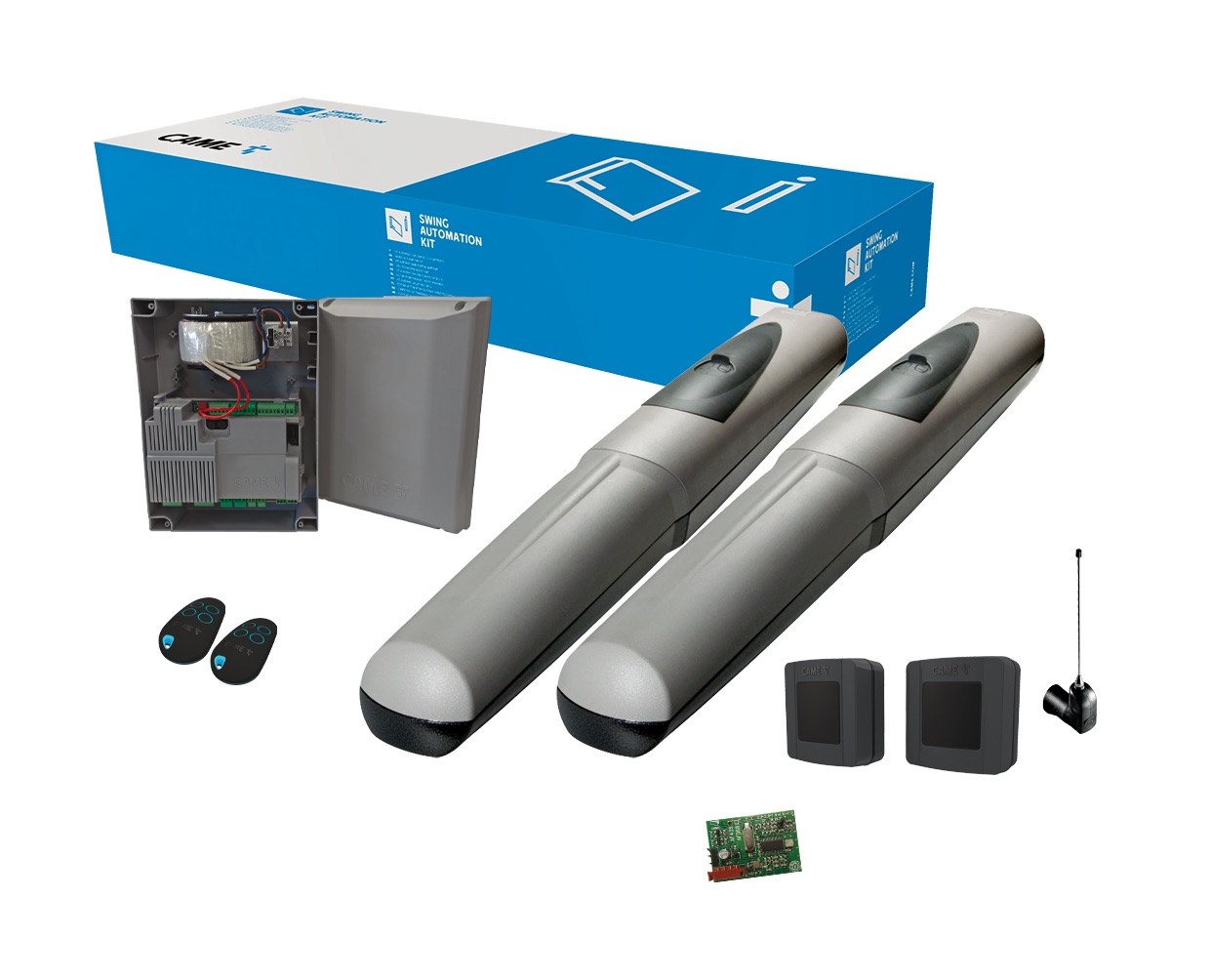

0U1BCS0169

AXO 24 V kit for a pair of gates up to 3m per leaf – Plug-in radio frequency card, Tuned antenna, ZLX24SA control panel, DLX BUS photocells, TOP Rolling Code transmitters x2

001AX3024

24 V irreversible gearmotor with encoder up to 3 m and 500 kg

801QA-0060

230 V AC multifunction control panel for 24 V double-leaf swing gates with graphic display, self-diagnosis and management of advanced technologies

806TF-0100

Pair of surface-mount BUS CXN photocells

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0270

Four-channel 433.92 MHz rolling code transmitter

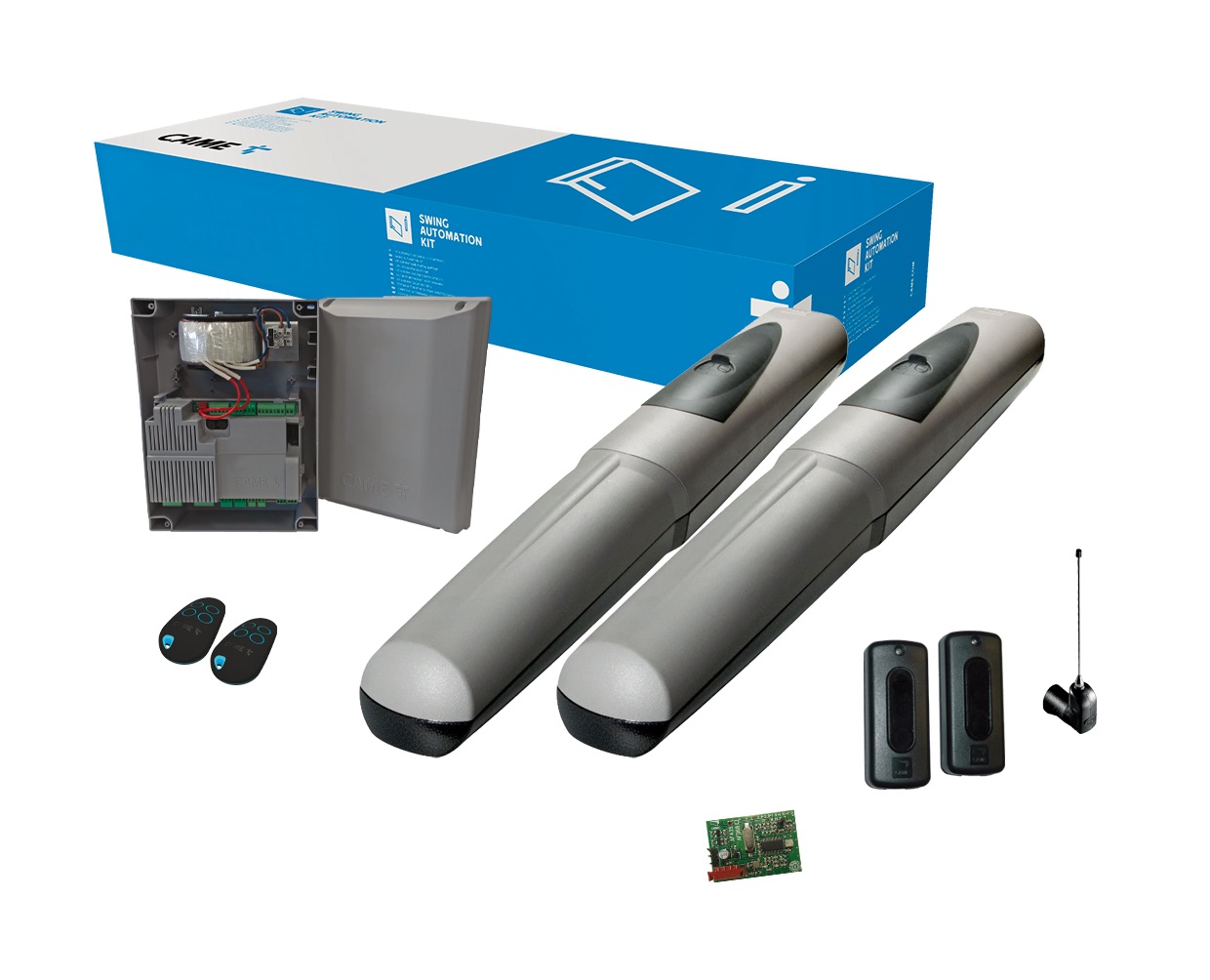

0U1BCS0168

AXO 24 V kit for a pair of gates up to 3m per leaf – Plug-in radio frequency card, Tuned antenna, ZLX24SA control panel, DIR10 photocells, TOP Rolling Code transmitters x2

001AX3024

24 V irreversible gearmotor with encoder up to 3 m and 500 kg

801QA-0060

230 V AC multifunction control panel for 24 V double-leaf swing gates with graphic display, self-diagnosis and management of advanced technologies

001DIR10

Pair of 12 – 24 V AC – DC outdoor photocells

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0270

Four-channel 433.92 MHz rolling code transmitter

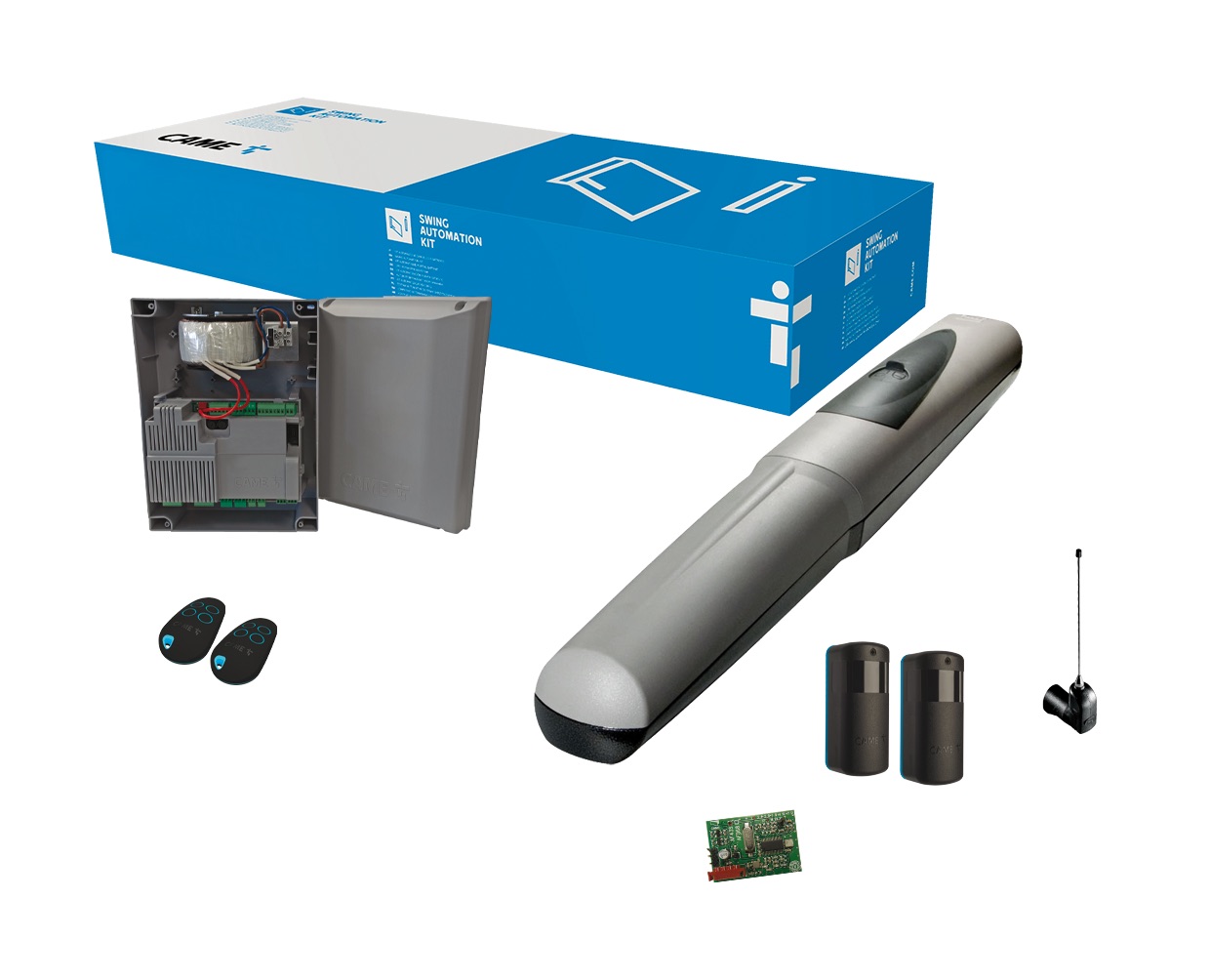

0U1BCS0200

AXO 24 V kit for a single gate up to 3m – Plug-in radio frequency card, Tuned antenna, ZLX24SA control panel, DXR BUS photocells, TOP Rolling Code transmitters x2

001AX3024

24 V irreversible gearmotor with encoder up to 3 m and 500 kg

801QA-0060

230 V AC multifunction control panel for 24 V double-leaf swing gates with graphic display, self-diagnosis and management of advanced technologies

806TF-0110

Pair of surface-mount synchronized adjustable BUS CXN photocells

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0270

Four-channel 433.92 MHz rolling code transmitter

0U1BCS0176

AXO 24 V kit for a single gate up to 3m – Plug-in radio frequency card, Tuned antenna, ZLX24SA control panel, DLX BUS photocells, TTS Rolling Code transmitters x2

001AX3024

24 V irreversible gearmotor with encoder up to 3 m and 500 kg

801QA-0060

230 V AC multifunction control panel for 24 V double-leaf swing gates with graphic display, self-diagnosis and management of advanced technologies

806TF-0100

Pair of surface-mount BUS CXN photocells

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0250

Four-channel 433.92 MHz rolling code transmitter

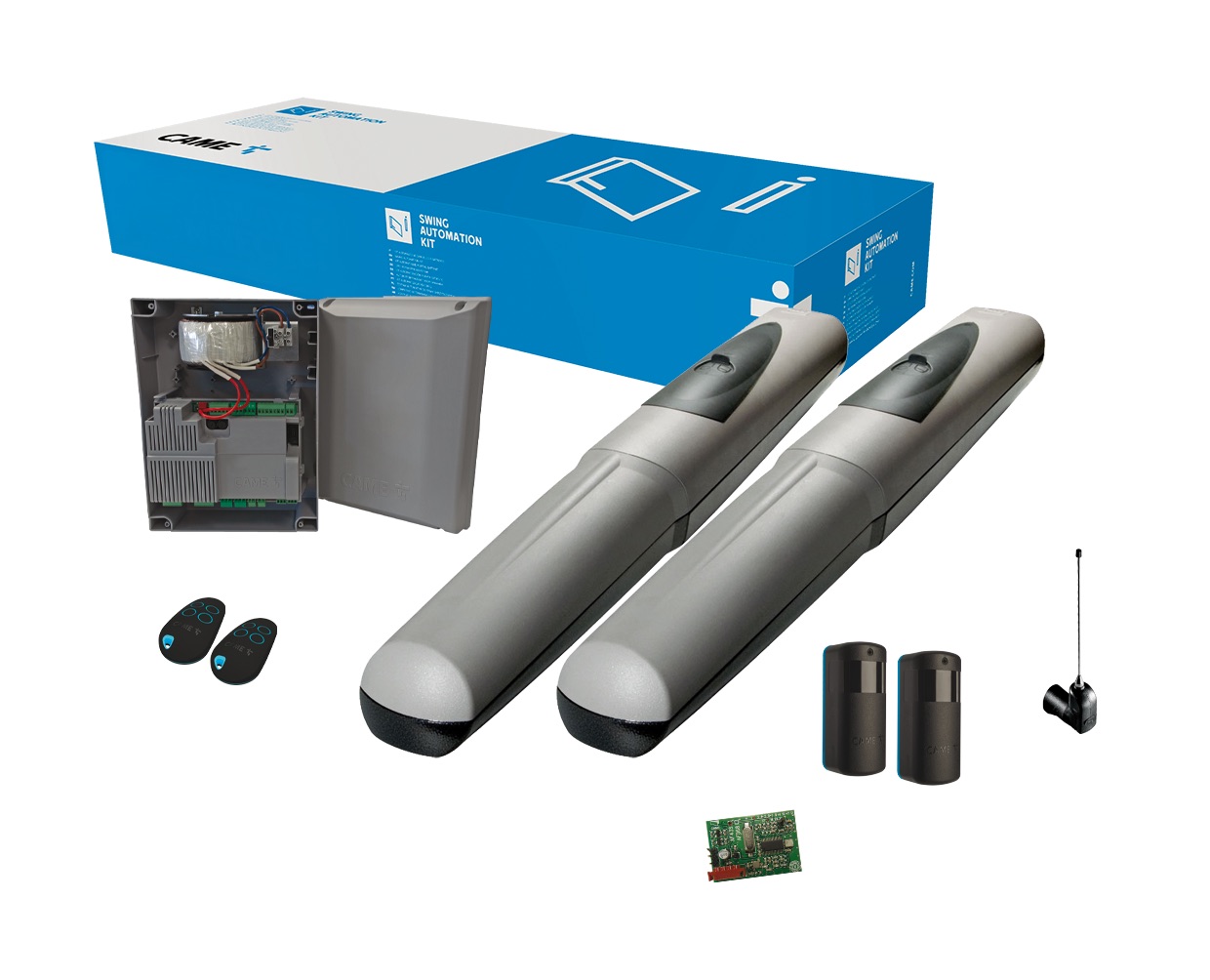

0U1BCS0198

AXO 24 V kit for a pair of gates up to 3m per leaf – Plug-in radio frequency card, Tuned antenna, ZLX24SA control panel, DXR BUS photocells, TOP Rolling Code transmitters x2

001AX3024

24 V irreversible gearmotor with encoder up to 3 m and 500 kg

801QA-0060

230 V AC multifunction control panel for 24 V double-leaf swing gates with graphic display, self-diagnosis and management of advanced technologies

806TF-0110

Pair of surface-mount synchronized adjustable BUS CXN photocells

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0270

Four-channel 433.92 MHz rolling code transmitter

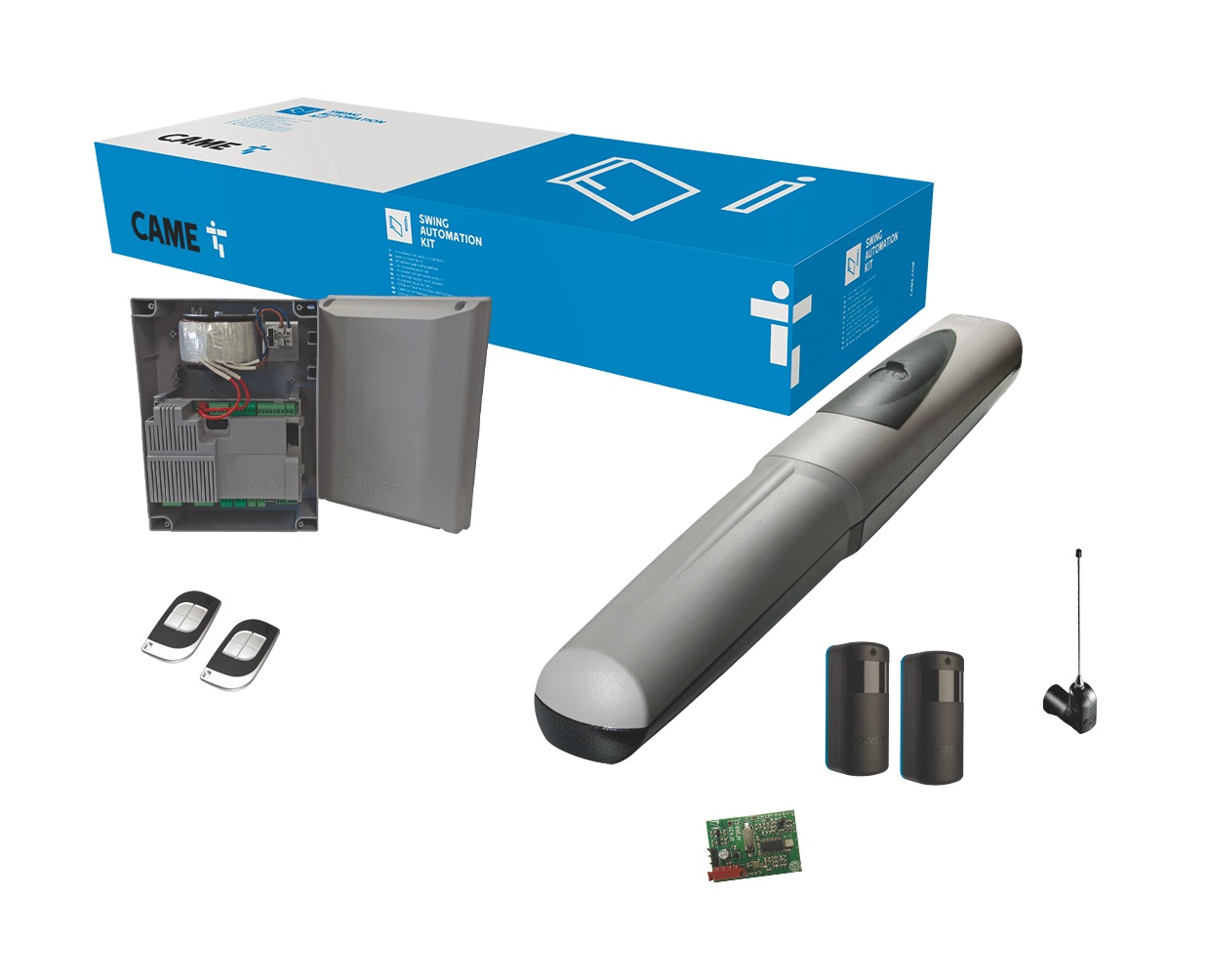

0U1BCS0374

AXO 24 V kit for a single gate up to 3m – Plug-in radio frequency card, Tuned antenna, ZLX24SA control panel, DXR BUS photocells, TOP Rolling Code transmitters x2

001AX3024

24 V irreversible gearmotor with encoder up to 3 m and 500 kg

801QA-0060

230 V AC multifunction control panel for 24 V double-leaf swing gates with graphic display, self-diagnosis and management of advanced technologies

806TF-0110

Pair of surface-mount synchronized adjustable BUS CXN photocells

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0250

Four-channel 433.92 MHz rolling code transmitter

0U1BCS0175

AXO 24 V kit for a single gate up to 3m – Plug-in radio frequency card, Tuned antenna, ZLX24SA control panel, DLX BUS photocells, TOP Rolling Code transmitters x2

001AX3024

24 V irreversible gearmotor with encoder up to 3 m and 500 kg

801QA-0060

230 V AC multifunction control panel for 24 V double-leaf swing gates with graphic display, self-diagnosis and management of advanced technologies

806TF-0100

Pair of surface-mount BUS CXN photocells

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0270

Four-channel 433.92 MHz rolling code transmitter

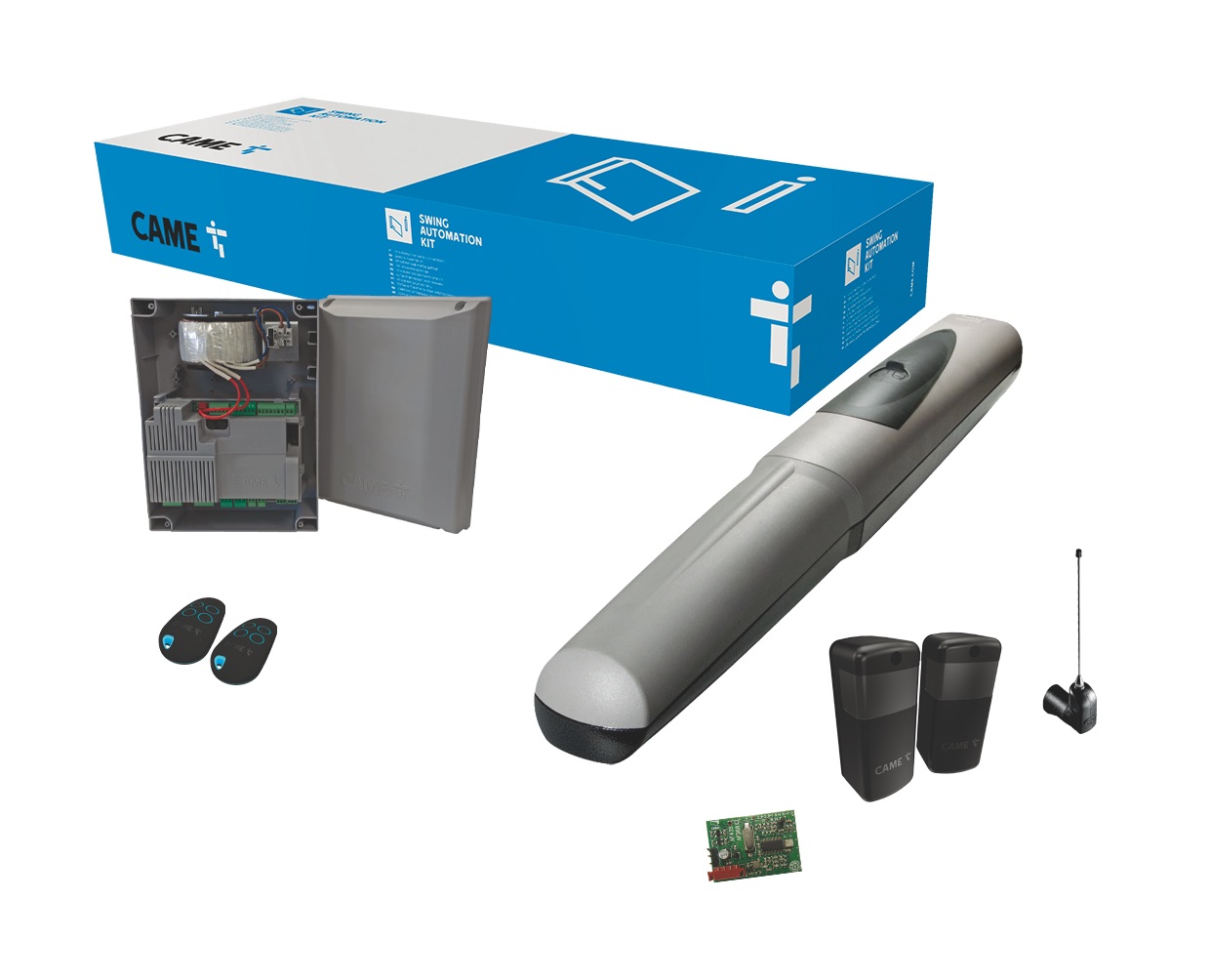

0U1BCS0373

AXO 24 V kit for a single gate up to 3m – Plug-in radio frequency card, Tuned antenna, ZLX24SA control panel, DXR photocells, TOP Rolling Code transmitters x2

001AX3024

24 V irreversible gearmotor with encoder up to 3 m and 500 kg

801QA-0060

230 V AC multifunction control panel for 24 V double-leaf swing gates with graphic display, self-diagnosis and management of advanced technologies

806TF-0030

Pair of 12 – 24 V AC – DC outdoor adjustable photocells

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0270

Four-channel 433.92 MHz rolling code transmitter

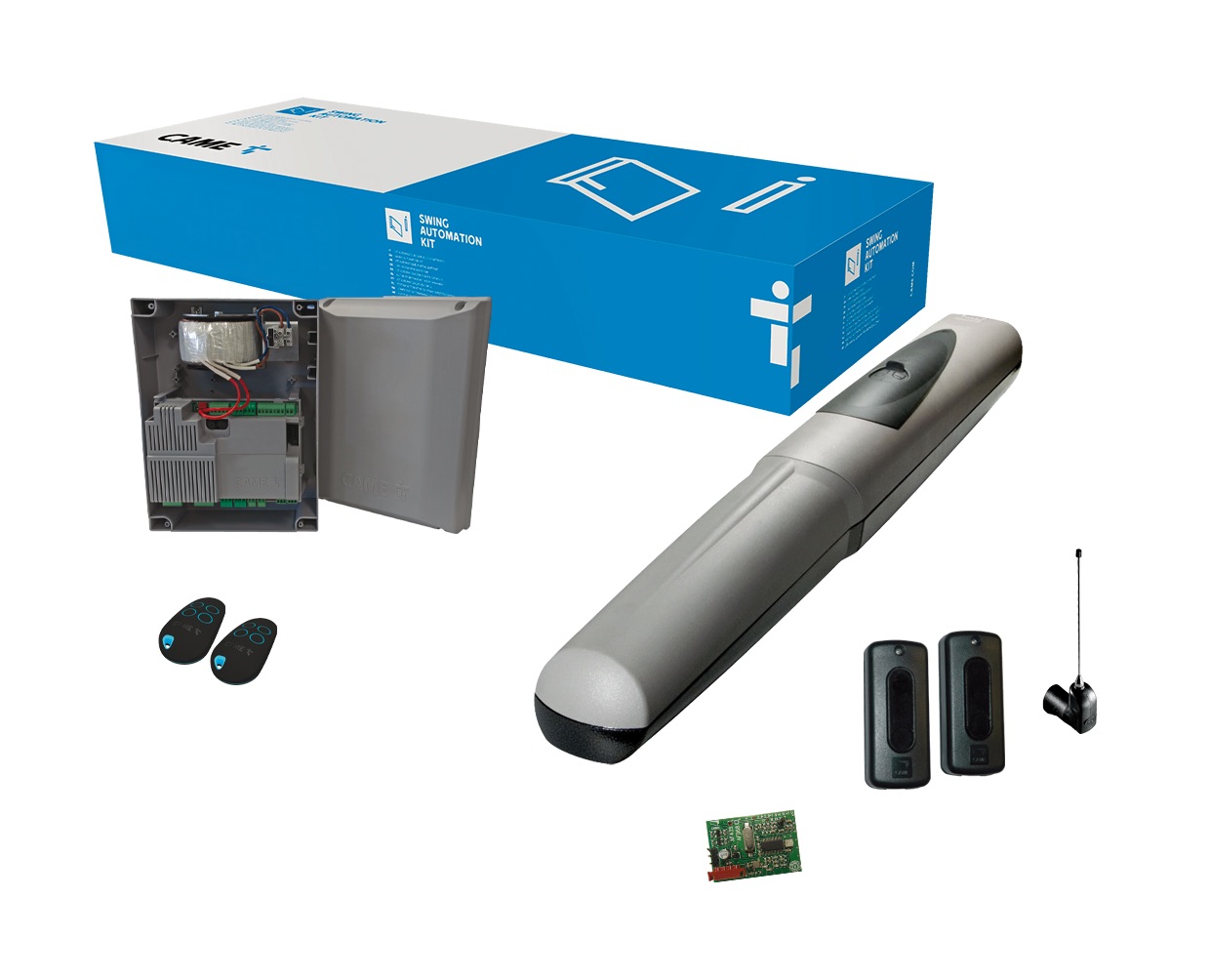

0U1BCS0174

AXO 24 V kit for a single gate up to 3m – Plug-in radio frequency card, Tuned antenna, ZLX24SA control panel, DIR10 photocells, TOP Rolling Code transmitters x2

001AX3024

24 V irreversible gearmotor with encoder up to 3 m and 500 kg

801QA-0060

230 V AC multifunction control panel for 24 V double-leaf swing gates with graphic display, self-diagnosis and management of advanced technologies

001DIR10

Pair of 12 – 24 V AC – DC outdoor photocells

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0270

Four-channel 433.92 MHz rolling code transmitter

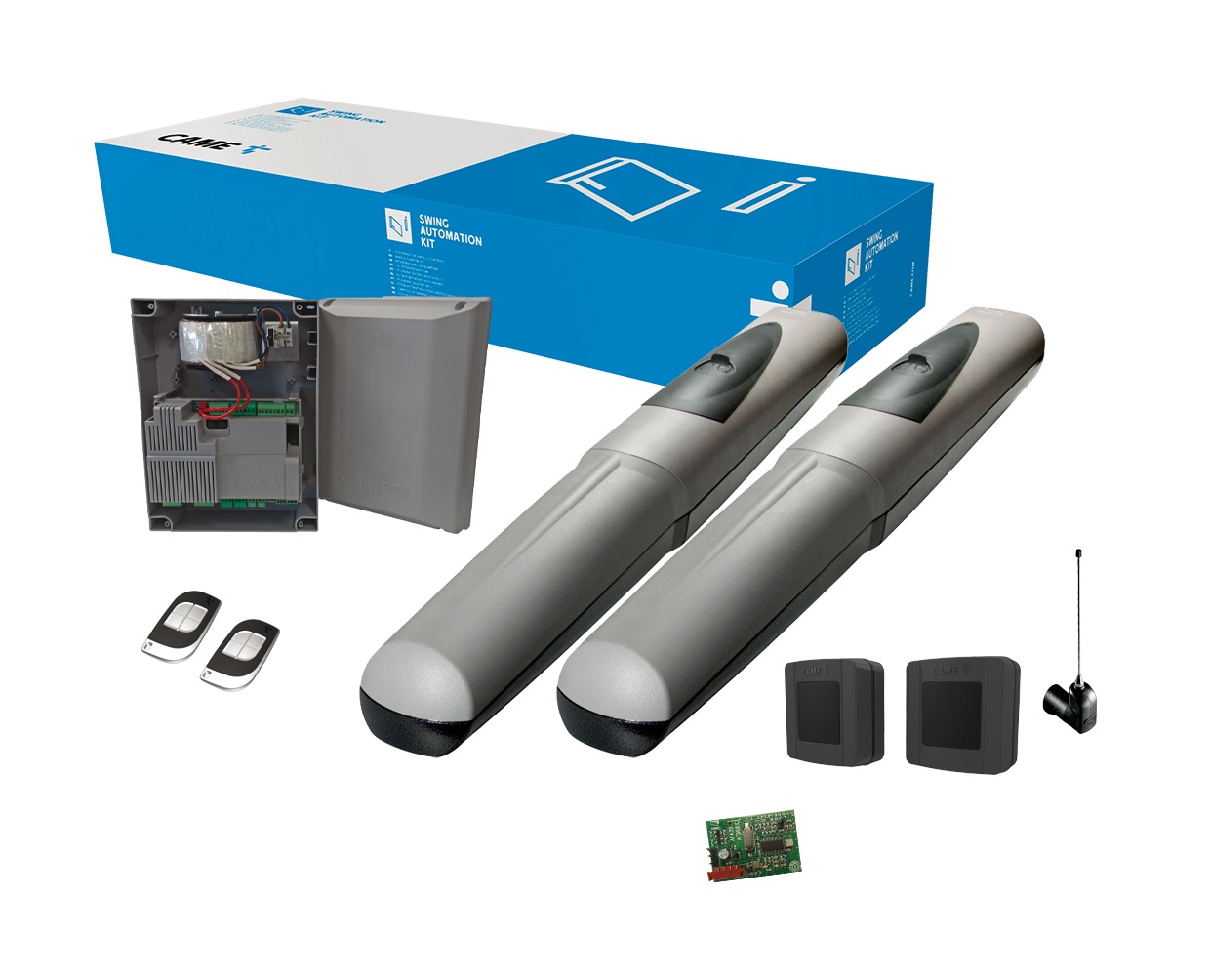

0U1BCS0170

AXO 24 V kit for a pair of gates up to 3m per leaf – Plug-in radio frequency card, Tuned antenna, ZLX24SA control panel, DLX BUS photocells, TTS Rolling Code transmitters x2

001AX3024

24 V irreversible gearmotor with encoder up to 3 m and 500 kg

801QA-0060

230 V AC multifunction control panel for 24 V double-leaf swing gates with graphic display, self-diagnosis and management of advanced technologies

806TF-0100

Pair of surface-mount BUS CXN photocells

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0250

Four-channel 433.92 MHz rolling code transmitter

Technical data

Dato tecnico	Valore
Power supply to motor (V)	24 DC
Absorption (A)	10 Max.
Power (W)	120
Maneuvering time at 90° (s)	ADJUSTABLE
Duty/cycle (%)	HEAVY-DUTY SERVICE
Thrust (N)	500 ÷ 4500
Operating temperature (°C)	-20 ÷ +55
Protection rating (IP)	44

Operational limits

Chiave	Valore	Valore	Valore	Valore	Valore	Valore	Valore	Valore	Valore
Max. length of leaf (m)	3	2.5	2
Max. weight of leaf (kg)	500	600	800

Models	801MB-0140
LEAF OPENING (°)	A	B	C Max.	D	E
90	140	420	150	Min. 150	310
90	160 ÷ 180	380	150	Min. 150	310
110	200 ÷ 220	400	50	Min. 150	310
