Gates automation / Sliding gate operators / BKV / 801MS-0360

801MS-0360

BKV20AGE

Plus version automation with 36 V motor, complete with electronic board with graphic display, Adaptive Speed & Torque Technology, 4 safety inputs, magnetic limit switches and clock accessory included for sliding gates up to 2000 kg and 20 m in length.

Catalogue

Depliant

Manuals and Certifications

Chiave	Valore
Max. length of leaf (m)	20
Max. weight of leaf (kg)	2000
Pinion module	4

36 V
CAME Connect
Encoder
RIO System 2.0

Gearmotor or automation with encoder.

Automation tested to be compliant with European standards for impact forces.

24 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

36 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

48 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

120V AC gear motor for US markets.

230 V AC gear motor.

230-400 V AC three-phase gear motor for industrial use. Guarantees greater starting torque.

Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.

This product is designed to fit the RIO System 2.0-series, 806SS-0040 snap-in card.

Product compatible with CXN BUS 2-wire connection technology.

Product equipped with BRUSHLESS technology.

From detached houses to apartment buildings, the X1 system can meet any requirement in terms of the number of internal branches, the distances involved in the system and the management of external stations.

From single dwellings to large residential complexes, the XIP system combines ease of installation with coverage over long distances. Both access control management and concierge services are integrated into the system.

The IP360 system uses Ethernet distribution as its main communication structure, ensuring an almost infinite extension of the system. It overcomes all the limitations of traditional video door entry systems, allowing maximum freedom of configuration.

The 4G system allows you to establish a connection with the called number thanks to the 4G network over unlimited distances. It is ideal in all applications where it is impossible to lay cables, allowing the installation of devices without any wiring, as only the power supply needs to be provided.

The 200 system is characterised by its great versatility: all the functions that can be implemented in the system are carried out by encoding on the same two conductors that carry the audio signal. The 200 system also only requires direct current power supply, which guarantees immunity from noise and humming on the audio.

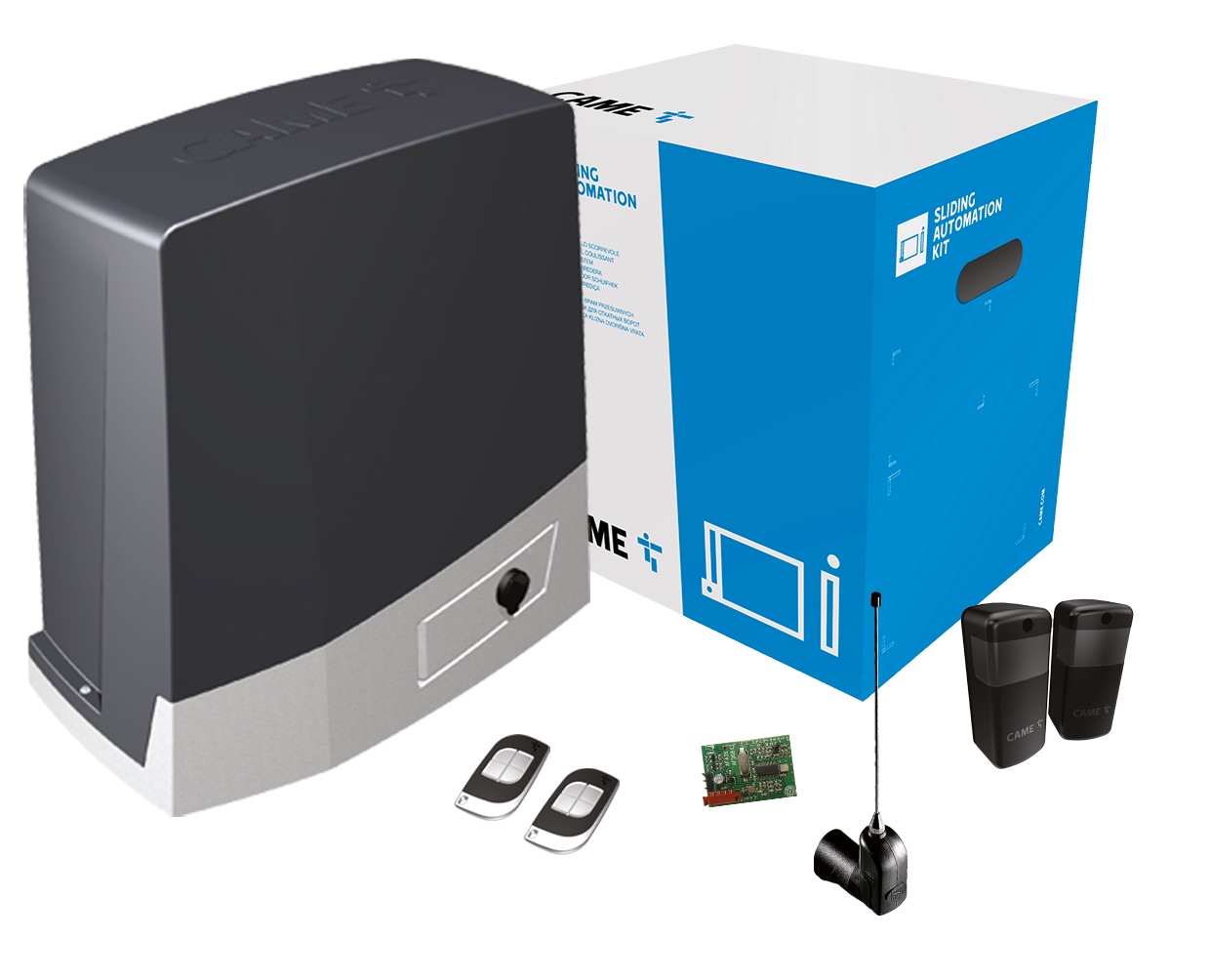

0U1BCN0080

BKV 36V Kit up to 2000kg – Plug-in radio frequency card, Tuned antenna, DXR photocells, TTS Rolling code transmitters x2

801MS-0360

Automation with 36 V motor and Plus magnetic limit switches for sliding gates up to 2000 kg and 20 m

88001-0186

806TF-0030

Pair of 12 – 24 V AC – DC outdoor adjustable photocells

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0250

Four-channel 433.92 MHz rolling code transmitter

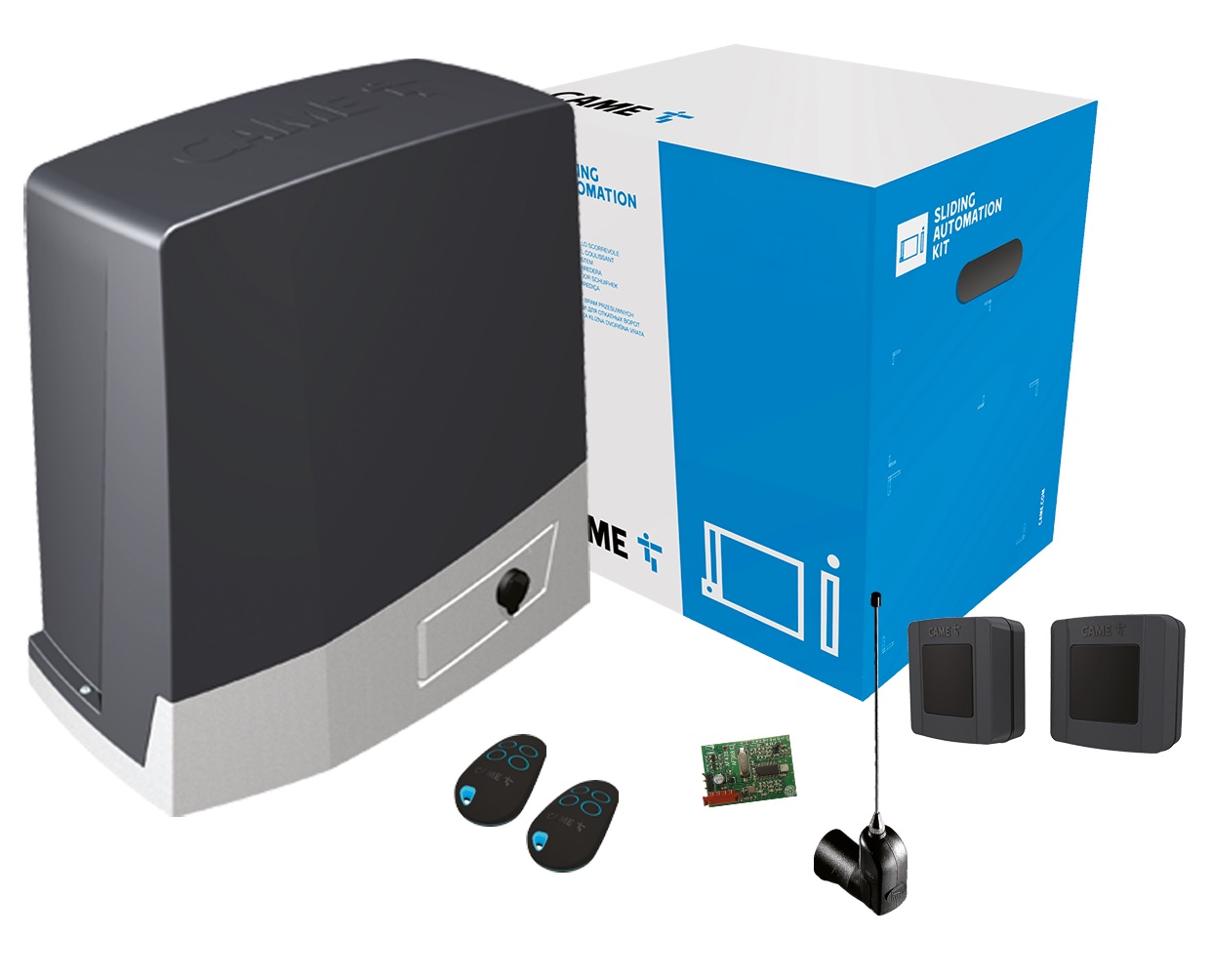

0U1BCN0029

BKV 36V Kit up to 2000kg – Plug-in radio frequency card, Tuned antenna, DLX BUS photocells, TOP Rolling code transmitters x2

801MS-0360

Automation with 36 V motor and Plus magnetic limit switches for sliding gates up to 2000 kg and 20 m

88001-0186

806TF-0080

Pair of outdoor photocells 12 – 24 V AC – DC

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0270

Four-channel 433.92 MHz rolling code transmitter

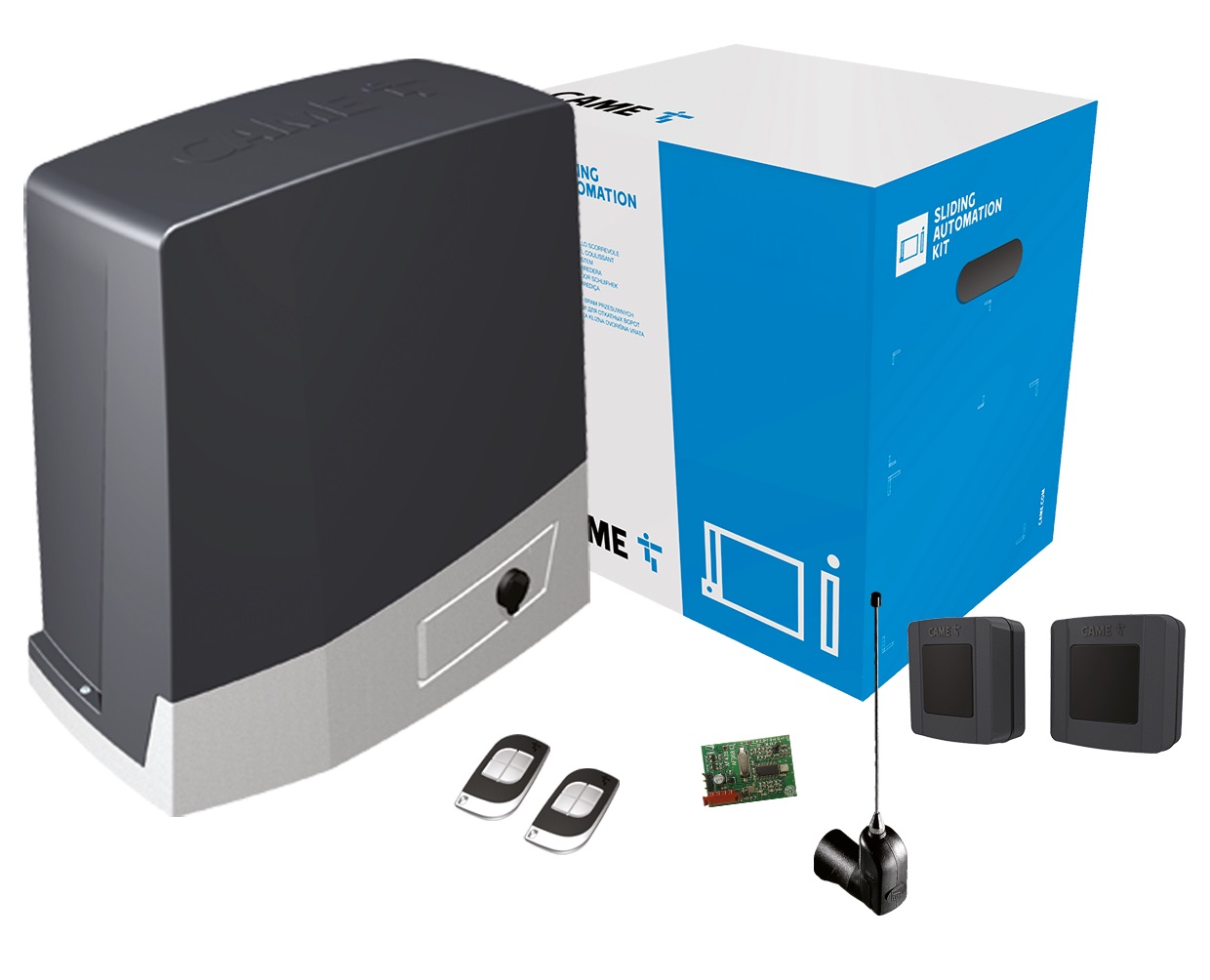

0U1BCN0030

BKV 36V Kit up to 2000kg – Plug-in radio frequency card, Tuned antenna, DLX BUS photocells, TTS Rolling code transmitters x2

801MS-0360

Automation with 36 V motor and Plus magnetic limit switches for sliding gates up to 2000 kg and 20 m

88001-0186

806TF-0080

Pair of outdoor photocells 12 – 24 V AC – DC

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0250

Four-channel 433.92 MHz rolling code transmitter

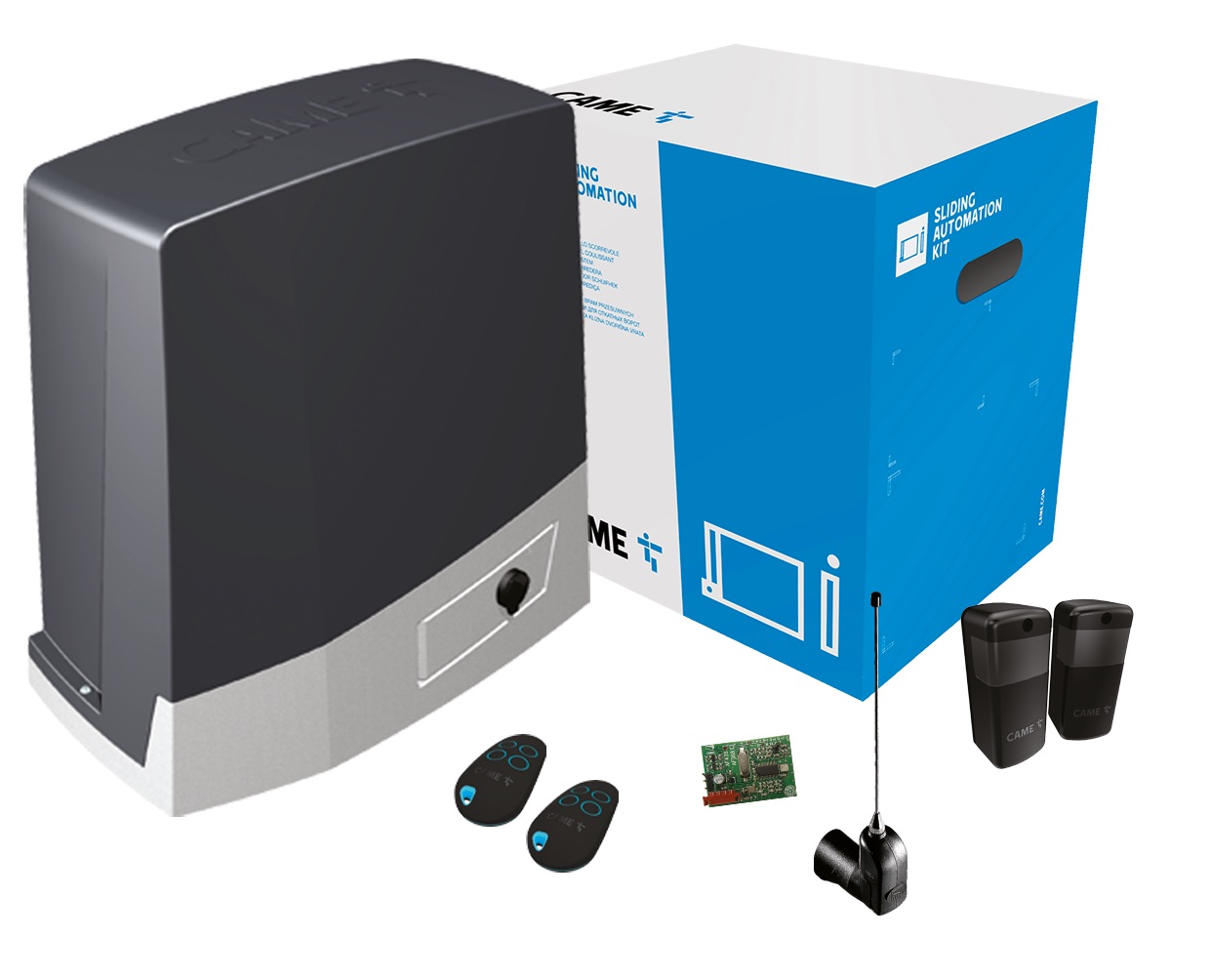

0U1BCN0079

BKV 36V Kit up to 2000kg – Plug-in radio frequency card, Tuned antenna, DXR photocells, TOP Rolling Code transmitters x2

801MS-0360

Automation with 36 V motor and Plus magnetic limit switches for sliding gates up to 2000 kg and 20 m

88001-0186

806TF-0030

Pair of 12 – 24 V AC – DC outdoor adjustable photocells

001TOP-A433N

Antenna tuned at 433.92 MHz.

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0270

Four-channel 433.92 MHz rolling code transmitter

Technical data

MODELS	-\|24v–801MS-0360\|-
Protection rating (IP)	54
Power supply (V – 50/60 Hz)	230
Power supply to motor (V)	36
Absorption (A)	9
Power (W)	250
Manouvering speed (m/min)	12
Thrust (N)	900
