Gates automation / Garage doors automations / VER / 801MV-0050

801MV-0050

VER06DES

Automation with encoder, complete with electronic board with segment graphic display, for sectional doors and overhead doors.

Catalogue

Depliant

Manuals and Certifications

MODELS	-\|24v–801MV-0050\|-
Max. surface of the door (m²)	9
Max. traction force (N)	600

24 V
Encoder
EN Tested

Gearmotor or automation with encoder.

Automation tested to be compliant with European standards for impact forces.

24 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

36 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

48 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

120V AC gear motor for US markets.

230 V AC gear motor.

230-400 V AC three-phase gear motor for industrial use. Guarantees greater starting torque.

Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.

This product is designed to fit the RIO System 2.0-series, 806SS-0040 snap-in card.

Product compatible with CXN BUS 2-wire connection technology.

Product equipped with BRUSHLESS technology.

From detached houses to apartment buildings, the X1 system can meet any requirement in terms of the number of internal branches, the distances involved in the system and the management of external stations.

From single dwellings to large residential complexes, the XIP system combines ease of installation with coverage over long distances. Both access control management and concierge services are integrated into the system.

The IP360 system uses Ethernet distribution as its main communication structure, ensuring an almost infinite extension of the system. It overcomes all the limitations of traditional video door entry systems, allowing maximum freedom of configuration.

The 4G system allows you to establish a connection with the called number thanks to the 4G network over unlimited distances. It is ideal in all applications where it is impossible to lay cables, allowing the installation of devices without any wiring, as only the power supply needs to be provided.

The 200 system is characterised by its great versatility: all the functions that can be implemented in the system are carried out by encoding on the same two conductors that carry the audio signal. The 200 system also only requires direct current power supply, which guarantees immunity from noise and humming on the audio.

0U1BCG0009

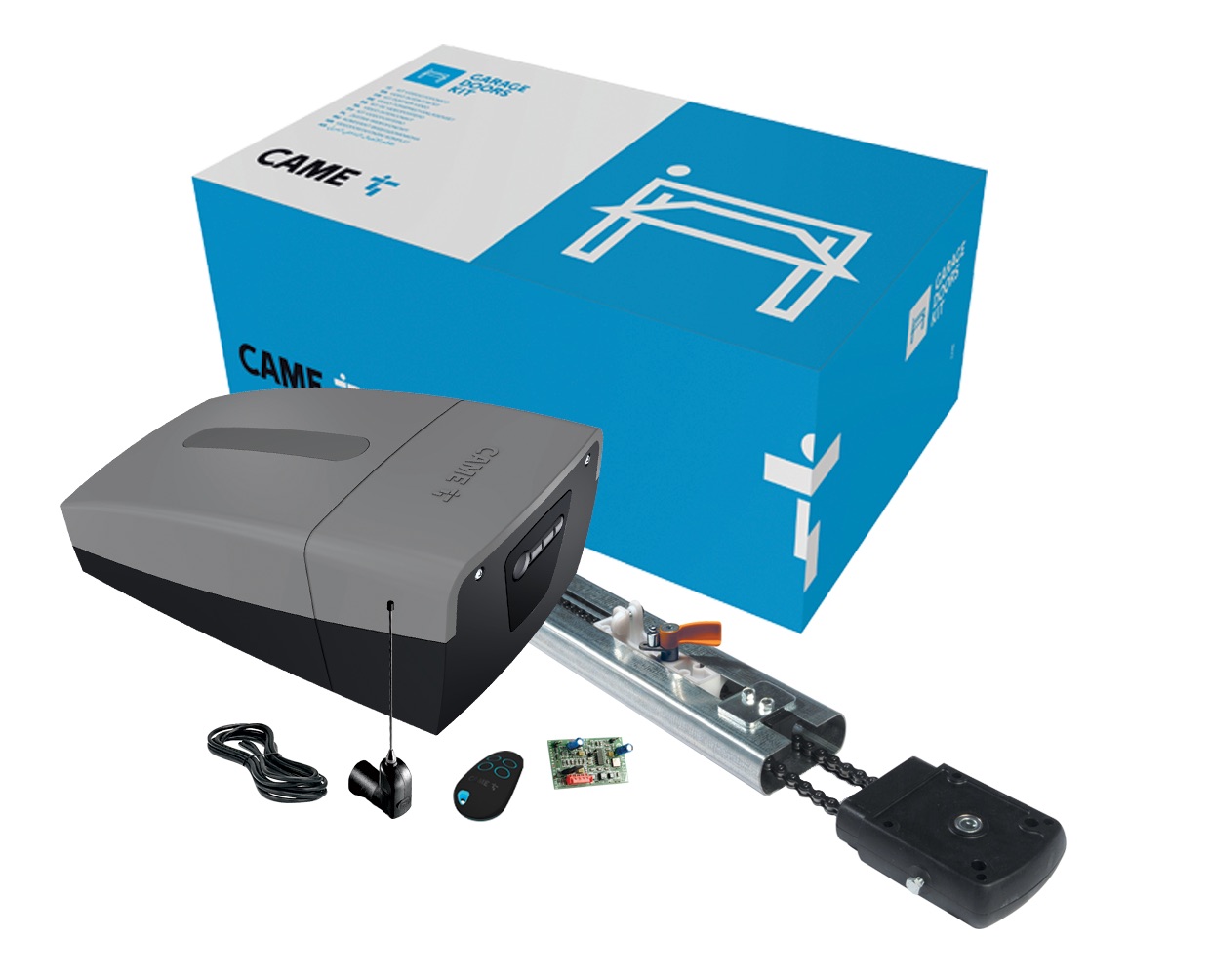

VER Garage Door Kit 24V with 600N garage door operator and chain guide for door up to 9m2

801MV-0050

Automation with encoder and segment graphic display for sectional and overhead doors

001V0689

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0270

Four-channel 433.92 MHz rolling code transmitter

0U1BCG0006

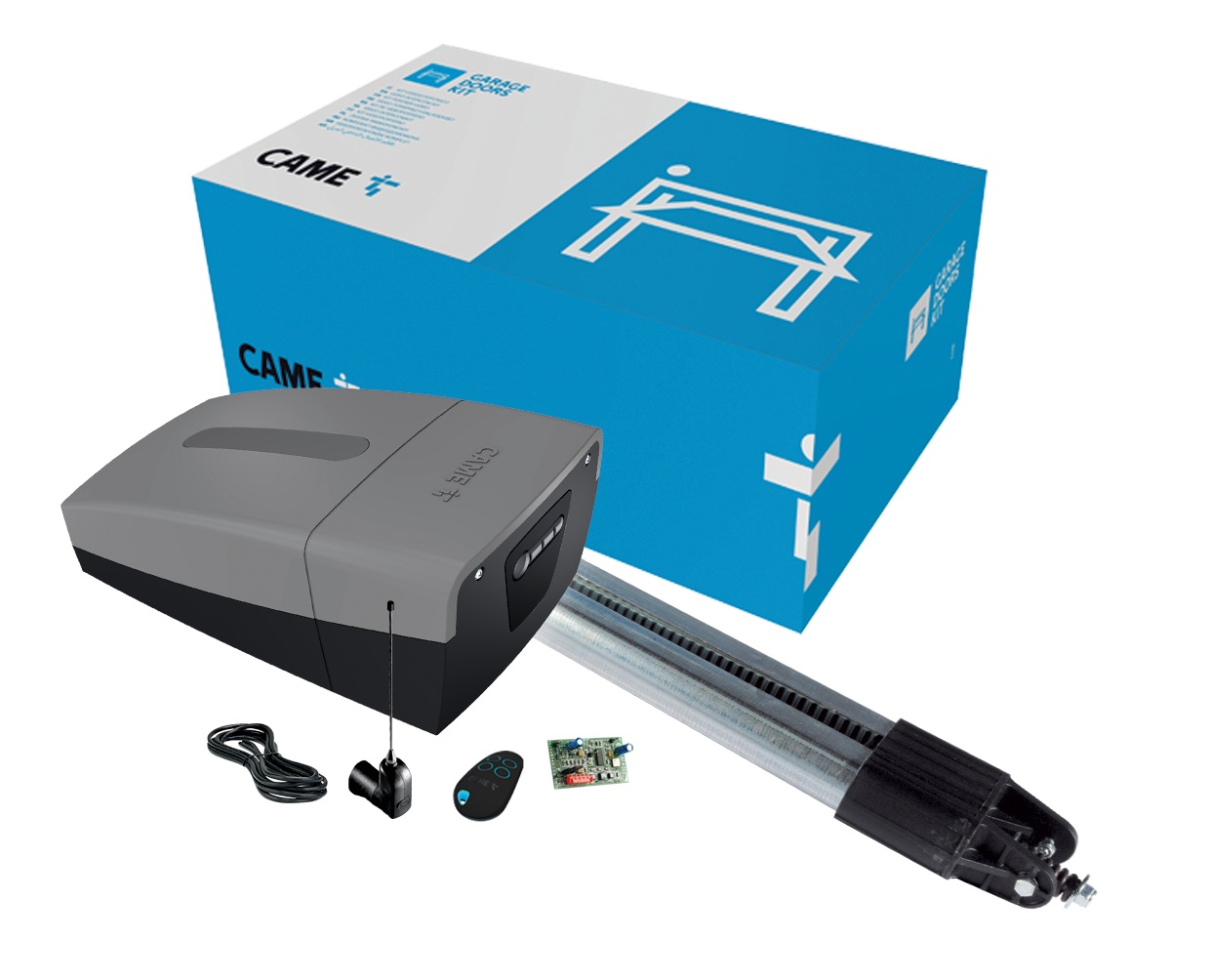

VER Garage Door Kit 24V with 600N garage door operator and silent belt guide for door up to 9m2

801MV-0050

Automation with encoder and segment graphic display for sectional and overhead doors

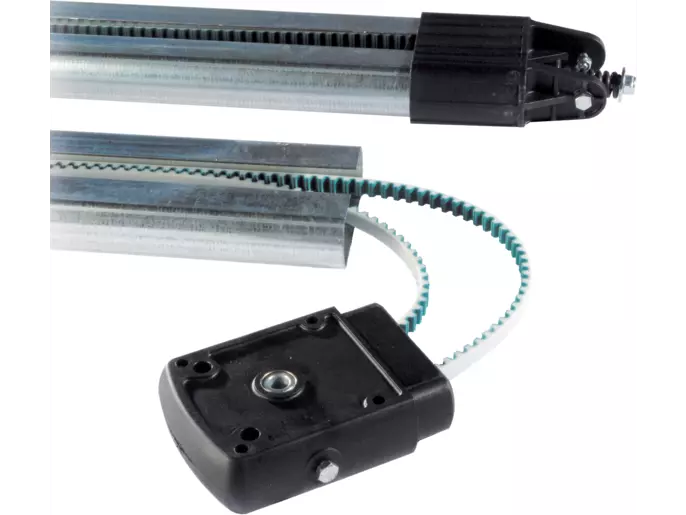

001V0687

001AF43S

433,92 MHz plug-in radio frequency card.

806TS-0270

Four-channel 433.92 MHz rolling code transmitter

Technical data

MODELS	-\|24v–801MV-0050\|-
Protection rating (IP)	20
Power supply (V – 50/60 Hz)	230 AC
Power supply to motor (V)	24 DC
Power (W)	90
Duty/cycle (%)	20
Cycles/Hour	10
Operating temperature (°C)	-20 ÷ +55
Manouvering speed (m/min)	6,6
