Automatic barriers / Barriers / GARD PX / 803BB-0120

803BB-0120

GPX40MGS

Automatic barrier with irreversible brushless gearmotor; cabinet in galvanized and painted steel.

Manuals and Certifications

36 V
CAME Connect
Encoder
EN Tested
Brushless

Gearmotor or automation with encoder.

Automation tested to be compliant with European standards for impact forces.

24 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

36 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

48 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

120V AC gear motor for US markets.

230 V AC gear motor.

230-400 V AC three-phase gear motor for industrial use. Guarantees greater starting torque.

Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.

This product is designed to fit the RIO System 2.0-series, 806SS-0040 snap-in card.

Product compatible with CXN BUS 2-wire connection technology.

Product equipped with BRUSHLESS technology.

From detached houses to apartment buildings, the X1 system can meet any requirement in terms of the number of internal branches, the distances involved in the system and the management of external stations.

From single dwellings to large residential complexes, the XIP system combines ease of installation with coverage over long distances. Both access control management and concierge services are integrated into the system.

The IP360 system uses Ethernet distribution as its main communication structure, ensuring an almost infinite extension of the system. It overcomes all the limitations of traditional video door entry systems, allowing maximum freedom of configuration.

The 4G system allows you to establish a connection with the called number thanks to the 4G network over unlimited distances. It is ideal in all applications where it is impossible to lay cables, allowing the installation of devices without any wiring, as only the power supply needs to be provided.

The 200 system is characterised by its great versatility: all the functions that can be implemented in the system are carried out by encoding on the same two conductors that carry the audio signal. The 200 system also only requires direct current power supply, which guarantees immunity from noise and humming on the audio.

0U1BCC0019

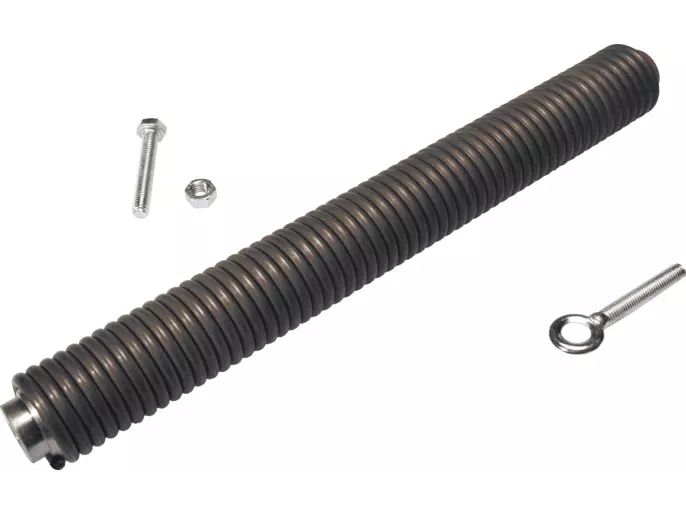

GARD PX Brushless Kit for road widths up to 3.8m – Galvanised steel painted cabinet, White painted aluminum boom (90x35x4050mm), Fixed Rest, DIR10 photocells, 4m Red/Green LED Strip, 20x Red Adhesive Reflective Strips, Balancing Spring

803BB-0120

Automatic barrier with brushless motor, galvanized and painted steel cabinet

88003-0054

803XA-0050

Aluminum boom, 90 x 35 mm, length 4.05 m

001G02807

Fixed support

001DIR10

Pair of 12 – 24 V AC – DC outdoor photocells

001G02809

Pack no. 20 red reflective adhesive strips

803XA-0020

Red/green LED strip for booms up to 4 m

803XA-0140

Luminous red/green LED crown.

001G04060

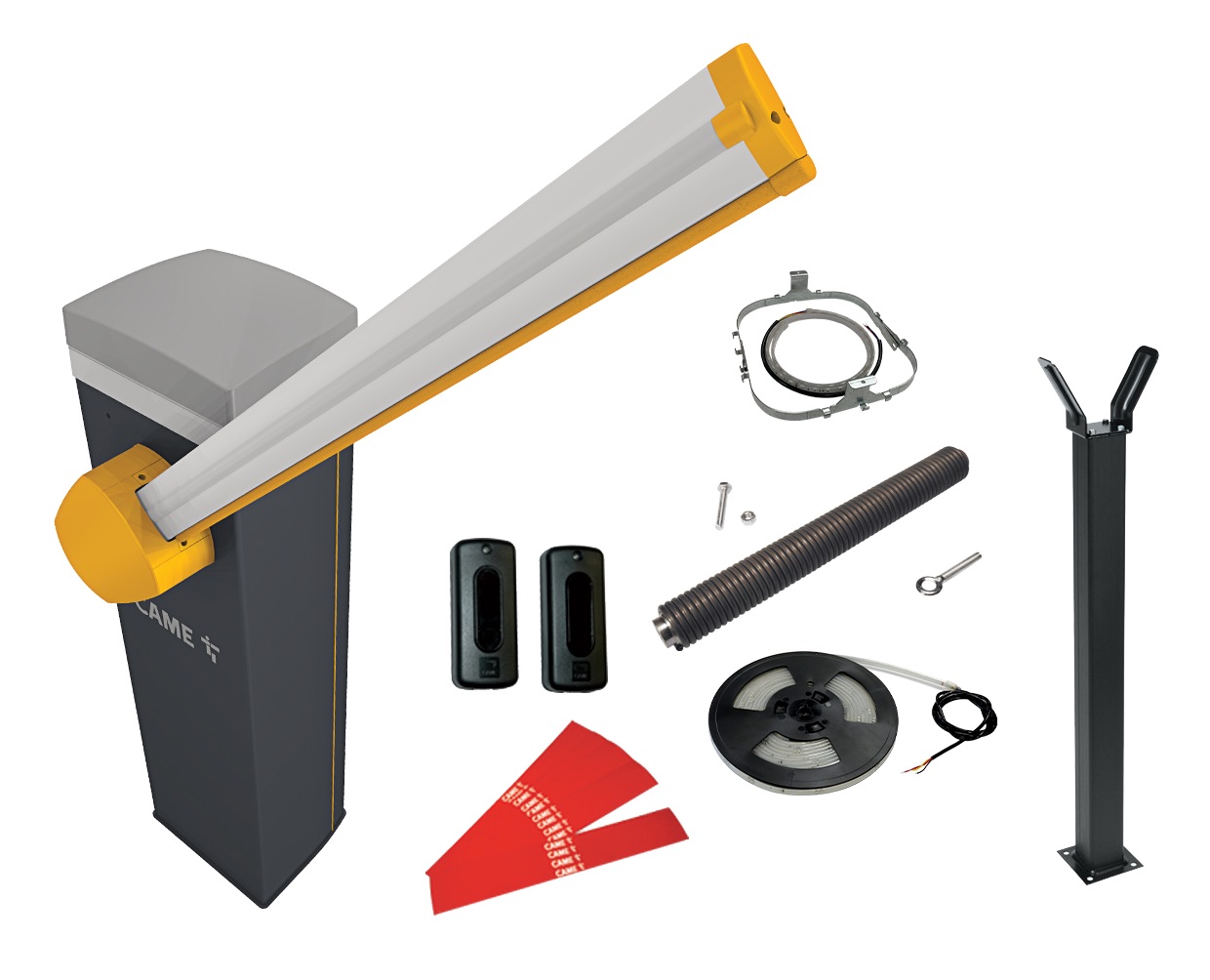

0U1BCC0018

GARD PX Brushless Kit for road widths up to 3m – Galvanised steel painted cabinet, White painted aluminum boom (90x35x3050mm), Fixed Rest, DIR10 photocells, 3m Red/Green LED Strip, Red/Green LED Crown, 20x Red Adhesive Reflective Strips

803BB-0120

Automatic barrier with brushless motor, galvanized and painted steel cabinet

88003-0054

803XA-0051

Aluminum boom, 90 x 35 mm, length 3.05 m

001G02807

Fixed support

001DIR10

Pair of 12 – 24 V AC – DC outdoor photocells

001G02809

Pack no. 20 red reflective adhesive strips

803XA-0150

Red/green LED strip for booms up to 3 m

803XA-0140

Luminous red/green LED crown.

001G04060

Technical data

Dato tecnico	Valore
Power supply (V)	100 AC ÷ 240 AC
Power supply to motor (V)	36 DC
Power (W)	270
Maneuvering time at 90° (s)	1 ÷ 2
Duty/cycle (%)	CONTINUOUS DUTY
Operating temperature (°C)	-20 ÷ +55 (-40 with item 803XA-0260)
Protection rating (IP)	54
Torque (Nm)	100
Reduction ratio (i)	1:108
Weight (kg)	62
