Automatic barriers / Barriers / GARD LT4 / 803BB-0370
803BB-0370

803BB-0370

GLT40AOS

Automatic barrier with 24 V DC irreversible gearmotor with encoder; galvanized and painted steel cabinet with provision for accessories. Balancing spring included.

Catalogue
Depliant
Manuals and Certifications
  • 24 V
  • CAME Connect
  • Encoder
  • EN Tested
Gearmotor or automation with encoder.
Automation tested to be compliant with European standards for impact forces.
24 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.
36 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.
48 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.
120V AC gear motor for US markets.
230 V AC gear motor.
230-400 V AC three-phase gear motor for industrial use. Guarantees greater starting torque.
Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.
This product is designed to fit the RIO System 2.0-series, 806SS-0040 snap-in card.
Product compatible with CXN BUS 2-wire connection technology.
Product equipped with BRUSHLESS technology.
From detached houses to apartment buildings, the X1 system can meet any requirement in terms of the number of internal branches, the distances involved in the system and the management of external stations.
From single dwellings to large residential complexes, the XIP system combines ease of installation with coverage over long distances. Both access control management and concierge services are integrated into the system.
The IP360 system uses Ethernet distribution as its main communication structure, ensuring an almost infinite extension of the system. It overcomes all the limitations of traditional video door entry systems, allowing maximum freedom of configuration.
The 4G system allows you to establish a connection with the called number thanks to the 4G network over unlimited distances. It is ideal in all applications where it is impossible to lay cables, allowing the installation of devices without any wiring, as only the power supply needs to be provided.
The 200 system is characterised by its great versatility: all the functions that can be implemented in the system are carried out by encoding on the same two conductors that carry the audio signal. The 200 system also only requires direct current power supply, which guarantees immunity from noise and humming on the audio.

0U1BCC0017

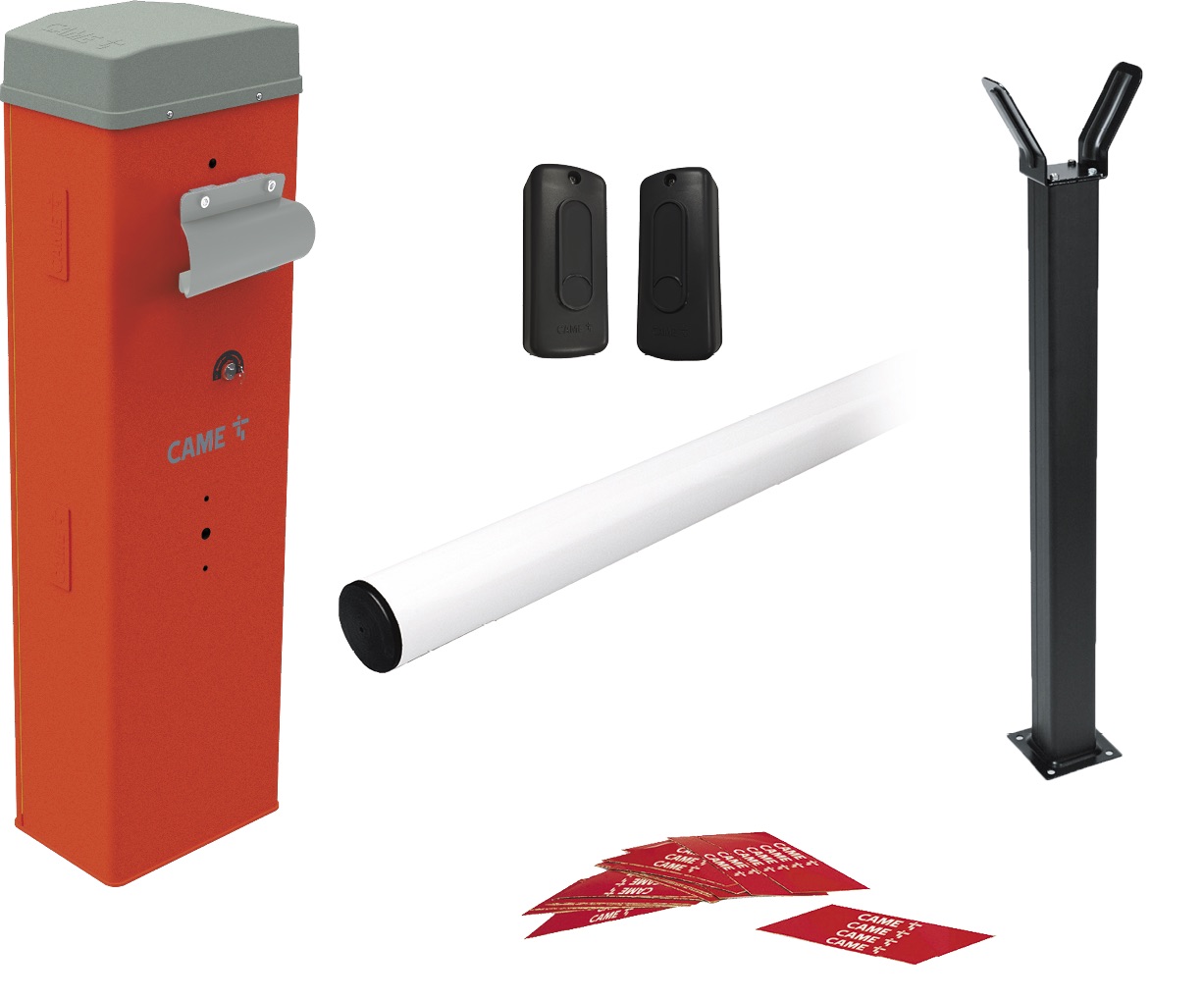

GARD LT4 Kit for road widths up to 4m – Galvanised steel painted cabinet, White painted aluminium tubular boom (r60x4200mm), Fixed Rest, DIR10 photocells, 4m White LED Strip, 24x Red Adhesive Reflective Strips, Boom Attachment

803BB-0370

24 V DC irreversible automatic barrier with encoder and balancing spring included

1

88003-0083

1

001G0402

Aluminum tubular section boom, Ø 60 mm, length 4.2 m

1

001G02807

Fixed support

1

001DIR10

Pair of 12 – 24 V AC – DC outdoor photocells

1

001G0461

Pack no. 24 red reflective adhesive strips

1

803XA-0580

White LED strip for 60X40 boom, length 4 m

1

803XA-0590

Attachment for 60 mm tubular rod

1

0U1BCC0016

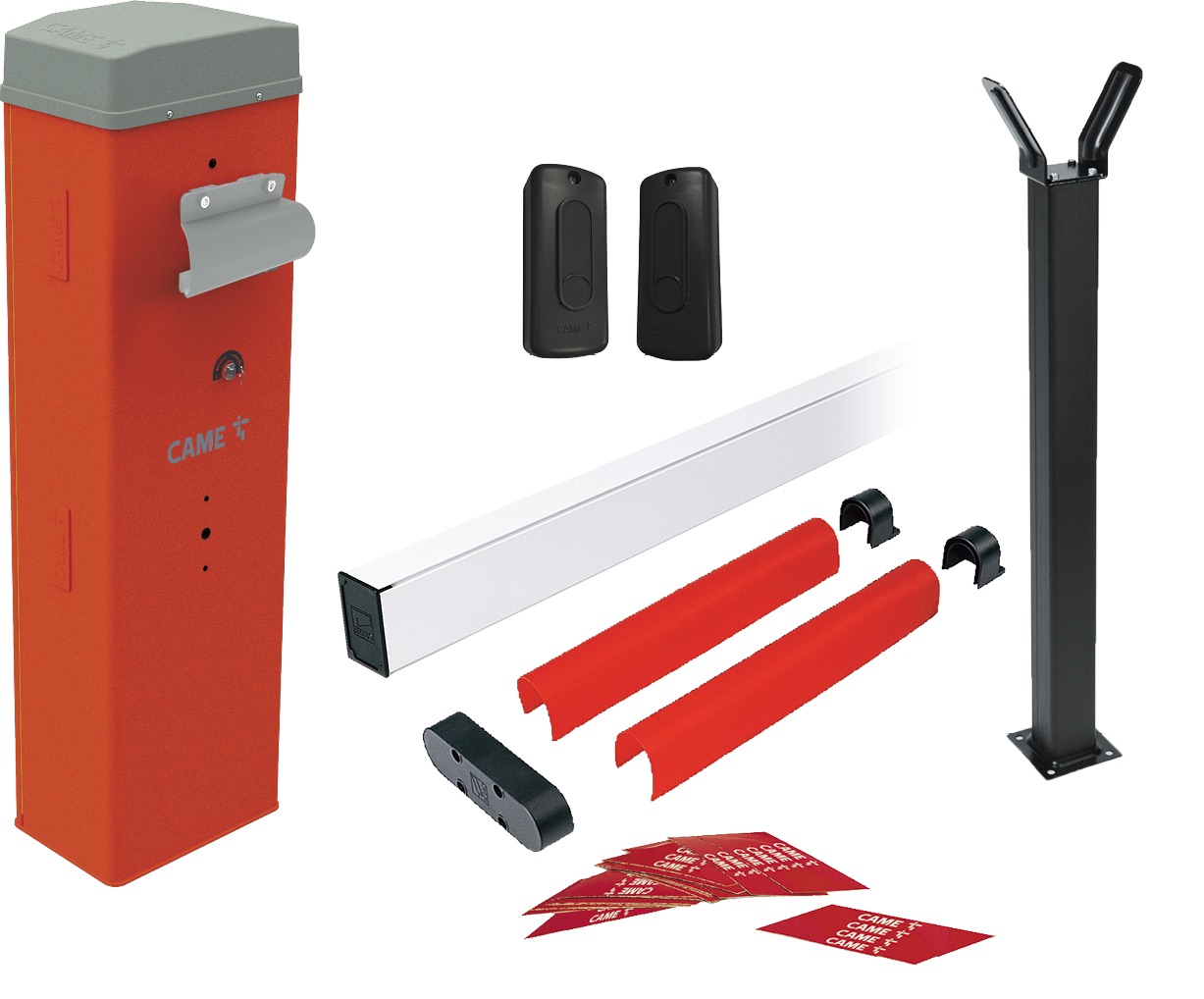

GARD LT4 Kit for road widths up to 4m – Galvanised steel painted cabinet, White painted aluminum square boom (40x60x4200mm), Fixed Rest, DIR10 photocells, 4m White LED Strip, 24x Red Adhesive Reflective Strips, Rubber Bumpers

803BB-0370

24 V DC irreversible automatic barrier with encoder and balancing spring included

1

88003-0083

1

001G0401

Aluminum boom, 60 x 40 mm, length 4.2 m

1

001G02807

Fixed support

1

001DIR10

Pair of 12 – 24 V AC – DC outdoor photocells

1

001G0461

Pack no. 24 red reflective adhesive strips

1

803XA-0580

White LED strip for 60X40 boom, length 4 m

1

001G0403

Red rubber shockproof profile complete with caps

1

Technical data

Dato tecnico

Valore

Power supply (V – 50/60 Hz)

220-230 AC

Power supply to motor (V)

24 DC

Power (W)

190

Maneuvering time at 90° (s)

2 ÷ 6

Cycles/Hour

300

Operating temperature (°C)

-20 ÷ +55(-40 with item 803XA-0630)

Protection rating (IP)

54

Torque (Nm)

140

Reduction ratio (i)

202

Weight (Kg)

56

      Complete your solution

      Booms
      001G0401
      001G0401

      White painted aluminum boom with end cap. Section 60 x 40 mm, boom length: 4.2 m.

      001G0402
      001G0402

      Tube section barrier made of white, painted aluminum.Ø 60 mm, boom length: 4.2 m.

      Electronic accessories
      806SA-0140
      806SA-0140

      Gateway to connect the automation to the cloud via WiFi or locally via Bluetooth selector (50 users)

      • CAME Connect
      Extra accessories
      002RSE
      002RSE

      Interface card for controlling two operators or for enabling the Came Remote Protocol.

      001R700
      001R700

      Control board for decoding and access-control management via transponder selector.

      001R800
      001R800

      Control board for decoding and access-control management via keypad selectors.

      • CAME Connect
      803XA-0300
      803XA-0300

      Auxiliary contacts unit for detecting the boom position.

      803XC-0020
      803XC-0020

      Modbus TCP/RTU bridge for integration with third party systems.

      803XA-0290
      803XA-0290

      Control card kit for operating during power outages and for recharging batteries, with battery housing.

      • 24 V
      803XA-0630
      803XA-0630

      Cartridge heater with thermostat.

      001G02802
      001G02802

      Support for fitting DIR-series photocells.

      009SMA
      009SMA

      Single-channel magnetic sensor at 24 V for detecting metal masses.

      • 24 V
      009SMA2
      009SMA2

      Double-channel magnetic sensor at 24 V for detecting metal masses.

      • 24 V
