Video entry systems / Entry panels / MTM VIDEO

MTM VIDEO

MTM VIDEO
MTM VIDEO
MTM VIDEO

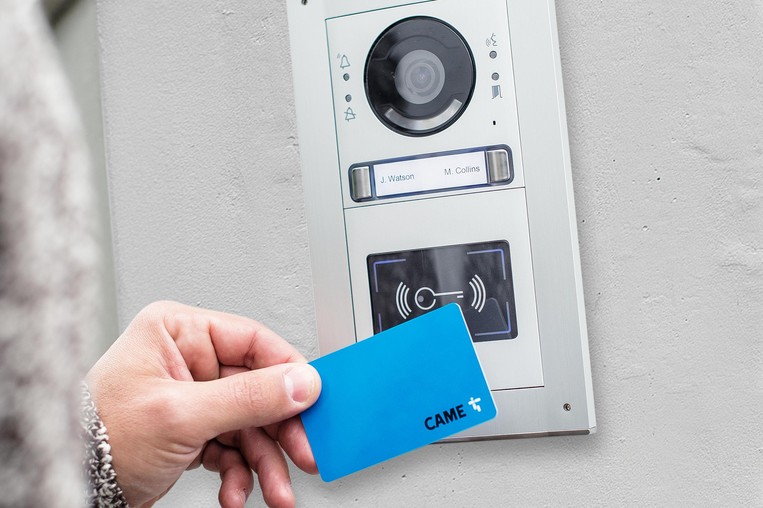

  • The MTM is a modular video door entry panel designed to meet diverse needs with 32 modules for limitless combinations. Its sleek, refined design makes it suitable for any surface or building, from single homes to large residential or office complexes. The anodized, satin-finished aluminium front ensures durability and a brilliant appearance. The HD camera features HDR technology and a high-efficiency illuminator with an anti-glare diffuser. The basic frame holds 1 to 4 modules, with the option to expand up to 12 additional modules for more complex setups.
Catalogue
Depliant
Configurator

Compatible systems

Installation type

Available finishes

X1, XIP, IP360

Recess-mount and surface-mount

Aluminum or Zamak (vandal-proof)

Our range

  • 62030010

    62030010

    MTMV/01

    Video door entry module for X1 system

    Connection type

    Wired

    • X1
  • 62030060

    62030060

    MTMV/08

    Video intercom module for XIP system

    Connection type

    Wired

    • XIP
  • 62030020

    62030020

    MTMV/IP

    Video intercom module for IP360 system

    Connection type

    Wired

    • IP360
  • 60020030

    60020030

    MTM8C

    8-call module.

    Connection

    Wired

    • X1
    • XIP
    • IP360
  • 60020390

    60020390

    MTMBFVS

    Hearing impaired and voice synthesis module

    Connection

    Wired

    • X1
    • XIP
    • IP360
  • 60020230

    60020230

    MTMKB

    Digital call keypad module

    Connection

    Wi-Fi / GSM / Bluetooth / Wired

    • X1
    • XIP
    • IP360
  • 60020240

    60020240

    MTMDY

    Display module

    Connection

    Wired

    • X1
    • XIP
    • IP360
  • 60020250

    60020250

    MTMRFID

    RFID access control module

    Connection

    Wired

    • X1
    • XIP
    • IP360
    • 200
  • 60020290

    60020290

    MTMMI

    Information module

    Connection

    Wired

    • X1
    • XIP
    • IP360
  • 60020310

    60020310

    MTMMC

    Blind module complete with front

    Connection

    Wired

  • 60020380

    60020380

    MTMNA

    Keypad module for access control

    Connection

    Wired

    • X1
    • XIP
    • IP360
    • 200

Main characteristics

  • Satin finish anodized aluminum front panel
  • IK07 shock protection rating
  • Up to 98 calls with buttons
  • Unlimited digital calls
  • Innovative front panel without speaker holes
  • Two-tone key backlighting (blue/white)
  • Backlight intensity adjustment
  • Direct connection to an analogue camera (X1 audio)
  • Mini USB port for PC connection, software programming and firmware update
  • IK09 certified (vandal-proof)
  • VR versions with zamak frame and cover
  • Strong shatter-proof buttons
  • Anti-burglary screws

Thousands of MTM combinations, in just a few clicks

The new MTM online configurator is available, created to support professionals in choosing the best modular entry panel solution in relation to the technical needs of the video intercom system. Once the configuration is complete, it will be possible to download a document with the chosen solution and the list of product items.

Discover the MTM configurator

Flexible and Durable Design for Versatile Solutions

The CAME MTM video entry panels are designed with exceptional flexibility and durability, making them suitable for a wide range of settings, from single-family homes to large residential complexes. Installers can configure entry panels with up to 4 modules, allowing for tailored setups that accommodate various features and functions. Built for long-lasting performance, the panels feature a satin-finished aluminium frame that provides robust IP54 protection against dust and water, along with an IK07 impact resistance rating. For environments requiring heightened security, the MTM VR model offers a vandal-resistant Zamak frame with IK09 impact resistance, delivering reliable durability even in challenging conditions.

Multiple video entry systems and comprehensive access control solutions

The CAME MTM video entry panels provide exceptional compatibility and integration, supporting various systems, including X1, XIP, IP360 and multi-wire configurations. This versatility allows seamless integration with existing infrastructures, making MTM panels ideal for diverse environments. Equipped with relay outputs and programmable inputs, these panels easily connect with auxiliary systems, access control setups, and home automation solutions. The MTM range also offers a wide selection of access control options, including a digital keypad, RFID reader, and customizable front pieces.
