Gates automation / Control panels / ZLX230 / 801QA-0120

801QA-0120

ZLX230M

Multifunction control panel, with 230 V AC power supply, for 230 V double-leaf swing gates, with programming and signaling display, self-diagnosis of safety devices, Digital Torque Control, CXN BUS, 2 safety inputs and storage of up to 250 users.

Catalogue

Depliant

Manuals and Certifications

230 V
CAME Connect
Encoder
RIO System 2.0
EN Tested
CXN BUS
Green Power

Gearmotor or automation with encoder.

Automation tested to be compliant with European standards for impact forces.

24 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

36 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

48 V DC gear motor suitable for intensive use. Guarantees operation even in the event of a power failure.

120V AC gear motor for US markets.

230 V AC gear motor.

230-400 V AC three-phase gear motor for industrial use. Guarantees greater starting torque.

Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.

This product is designed to fit the RIO System 2.0-series, 806SS-0040 snap-in card.

Product compatible with CXN BUS 2-wire connection technology.

Product equipped with BRUSHLESS technology.

Compliant with Regulation (EU) 2023/826.

From detached houses to apartment buildings, the X1 system can meet any requirement in terms of the number of internal branches, the distances involved in the system and the management of external stations.

From single dwellings to large residential complexes, the XIP system combines ease of installation with coverage over long distances. Both access control management and concierge services are integrated into the system.

The IP360 system uses Ethernet distribution as its main communication structure, ensuring an almost infinite extension of the system. It overcomes all the limitations of traditional video door entry systems, allowing maximum freedom of configuration.

The 4G system allows you to establish a connection with the called number thanks to the 4G network over unlimited distances. It is ideal in all applications where it is impossible to lay cables, allowing the installation of devices without any wiring, as only the power supply needs to be provided.

The 200 system is characterised by its great versatility: all the functions that can be implemented in the system are carried out by encoding on the same two conductors that carry the audio signal. The 200 system also only requires direct current power supply, which guarantees immunity from noise and humming on the audio.

Technical data

Dato tecnico	Valore
Power supply (V – 50/60 Hz)	220 AC ÷ 240 AC
Power supply to motor (V)	220 AC ÷ 240 AC
Power (W)	1100
Stand-by consumption (W)	0,8
Operating temperature (°C)	-20 ÷ +55
Protection rating (IP)	54

Compatible automations

AXO

001AX302304

Irreversible 230 V gearmotor with encoder for swing gates with up to 3 m leaves that weighs up to 500 kg.

AXO

001AX402306

Irreversible 230 V gearmotor with encoder for swing gates with up to 4 m leaves that weighs up to 300 kg.

AXO

001AX71230

Reversible 230 V gearmotor with encoder for swing gates with up to 7 m leaves that weighs up to 300 kg.

ATS

801MP-0050

230 V irreversible telescopic gearmotor for swing gates with C Max. 200 mm with leaves up to 3 m and 400 kg in weight. RAL7024 gray colour.

ATS

801MP-0060

230 V irreversible telescopic gearmotor for swing gates with C Max. 200 mm with leaves up to 5 m and 400 kg in weight. RAL7024 gray colour.

ATS

801MP-0090

230 V irreversible telescopic gearmotor for swing gates with C Max. 200 mm, with provision for remote release, for leaves up to 3 m and 400 kg in weight. RAL7024 gray colour.

ATS

801MP-0100

230 V irreversible telescopic gearmotor for swing gates with C Max. 200 mm, with provision for remote release, for leaves up to 5 m and 400 kg in weight. RAL7024 gray colour.

ATI

001A3000

Irreversible 230 V gearmotor for swing gates with opening limit-switch, micro-switches with up to 3 m leaves that weighs up to 400 kg.

ATI

001A3000A

Irreversible 230 V gearmotor with opening and closing limit-switch micro-switches for swing gates with up to 3 m leaves that weighs up to 400 kg.

ATI

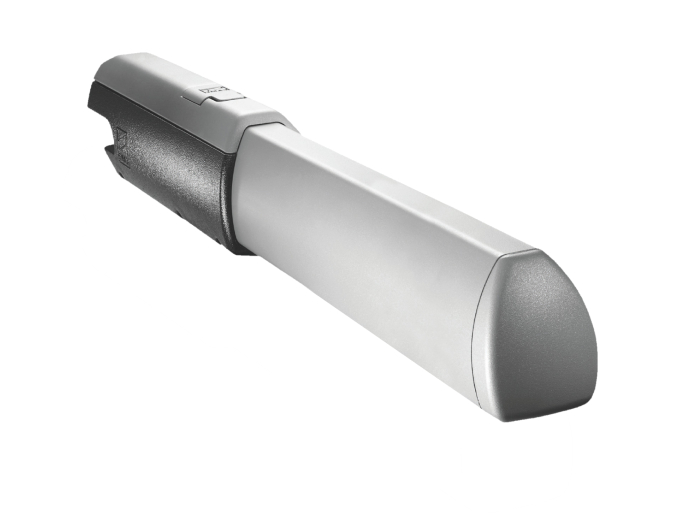

001A5000

Irreversible 230 V gearmotor with opening limit-switch micro-switches for swing gates with up to 5 m leaves that weighs up to 400 kg.

ATI

001A5000A

Irreversible 230 V gearmotor with opening and closing limit-switch micro-switches for swing gates with up to 5 m leaves that weighs up to 400 kg.

FERNI

001FE40230

Irreversible 230 V gearmotor with hinged transmission arm and C Max. 380 mm for swing gates with with up to 4 m leaves that weighs up to 400 kg.

FAST

001FA70230

Irreversible 230 V gearmotor with hinged transmission arm and C Max. 200 mm for swing gates with with up to 2.3 m leaves that weighs up to 200 kg.

FERNI

001FE40230V

Irreversible 230 V gearmotor, rapid version, with hinged transmission arm and C Max. 380 mm for swing gates with with up to 4 m leaves that weighs up to 400 kg.

FROG

001FROG-AE

Irreversible underground 230 V gearmotor with encoder and adjustable leaf-closing for swing gates with up to 3.5 m leaves that weighs up to 400 kg.

Complete your solution

Electronic accessories

001AF43S

433,92 MHz plug-in radio frequency card.

001AF868

868.35 MHz plug-in radio frequency card.

806SS-0040

Wireless, plug-in radio control module for wireless accessories.

RIO System 2.0

002RSE

Interface card for controlling two operators or for enabling the Came Remote Protocol.

806XG-0080

BUS expansion module with 2 inputs and 2 outputs. Inputs can be configured in NO, NC or resistive mode (8K2), a warning light output and a relay output.
