The MEDICPLAZA Health Center in Waiblingen offer a parking area with 109 parking spaces (2 areas) for visitors and customers and 1 parking area for employees. The use of this pay parking area in Waiblingen has been extended to all users except the customers of the medical facility and the restaurants for whom parking will be free of charge. The CAME group was commissioned to install the parking system.
Customer need
The parking lot will be used for day visitors, while also providing parking spaces for employees and clients of the medical center. Restaurant and medical office operators should be able to validate tickets to allow their customers to park for free.
Solution adopted
These are the adopted solutions
Customer parking areas

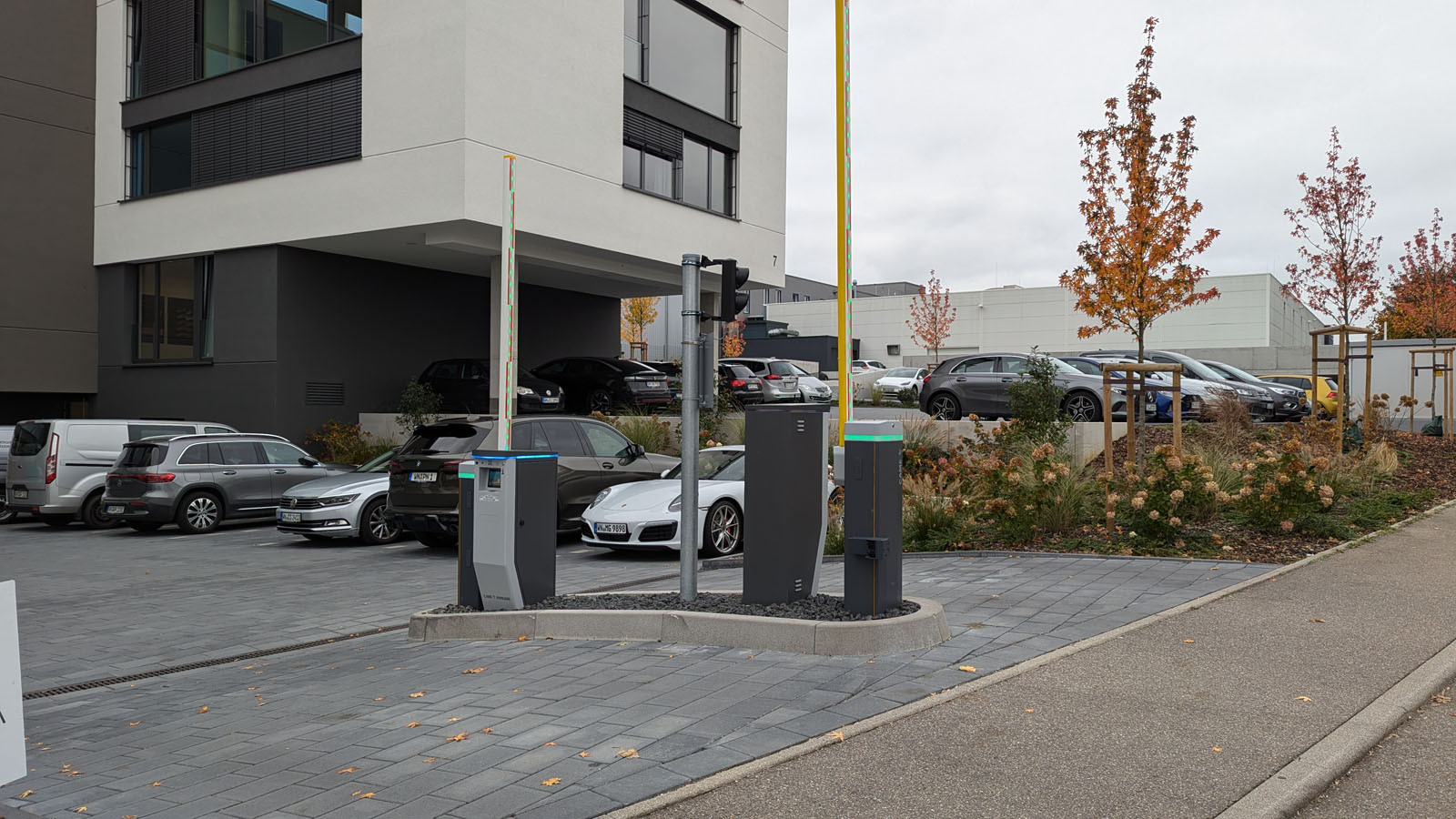

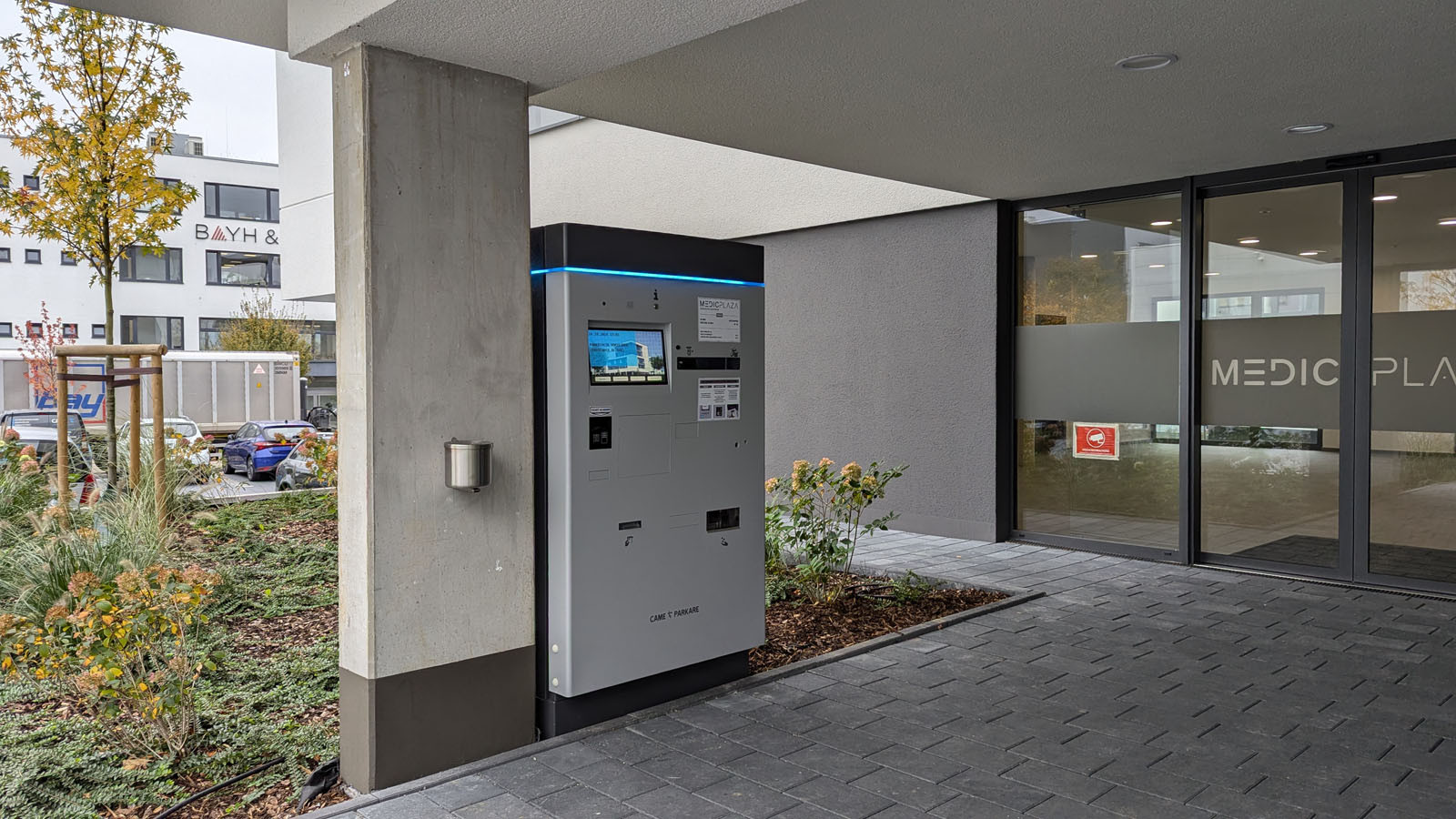

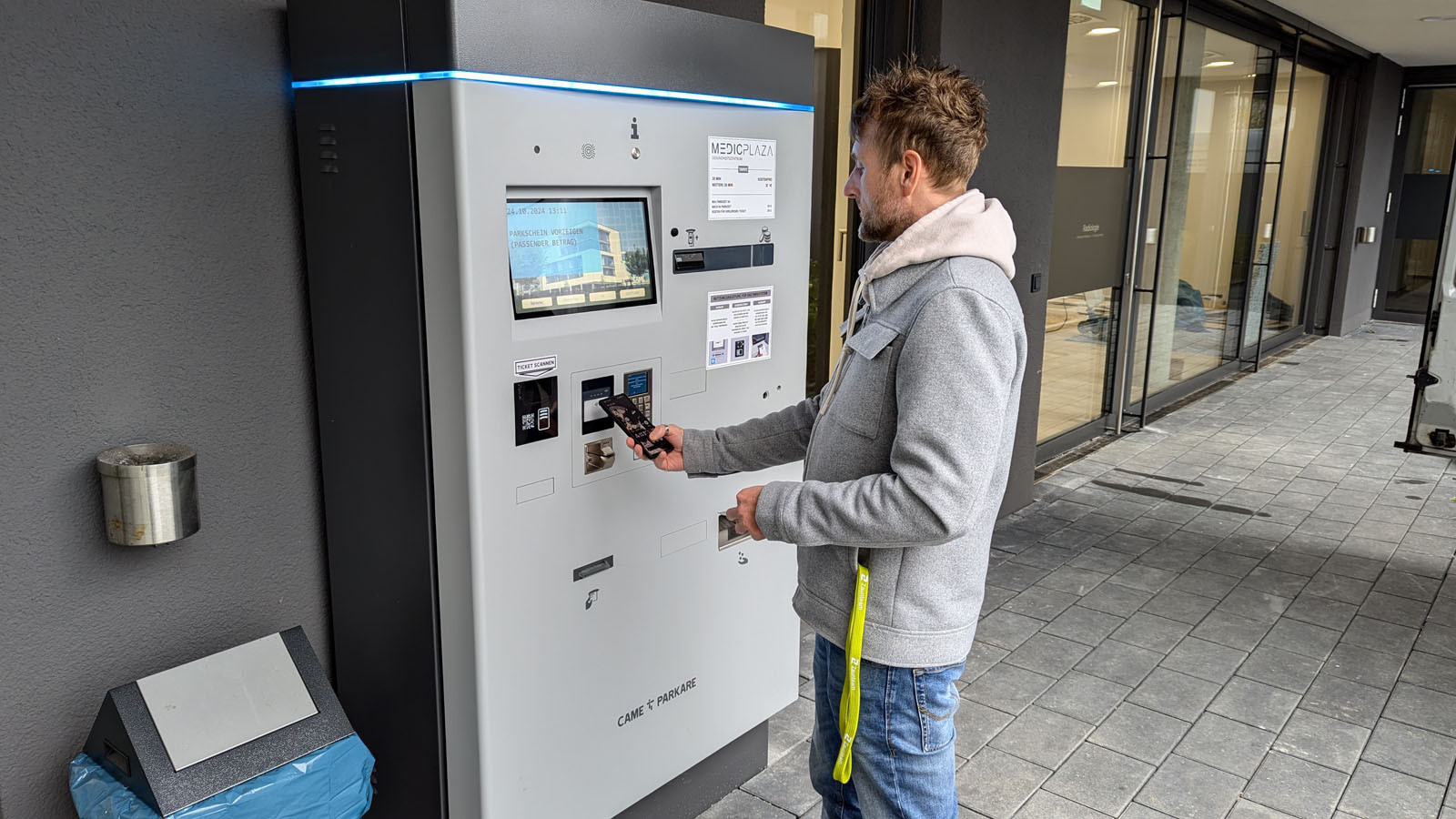

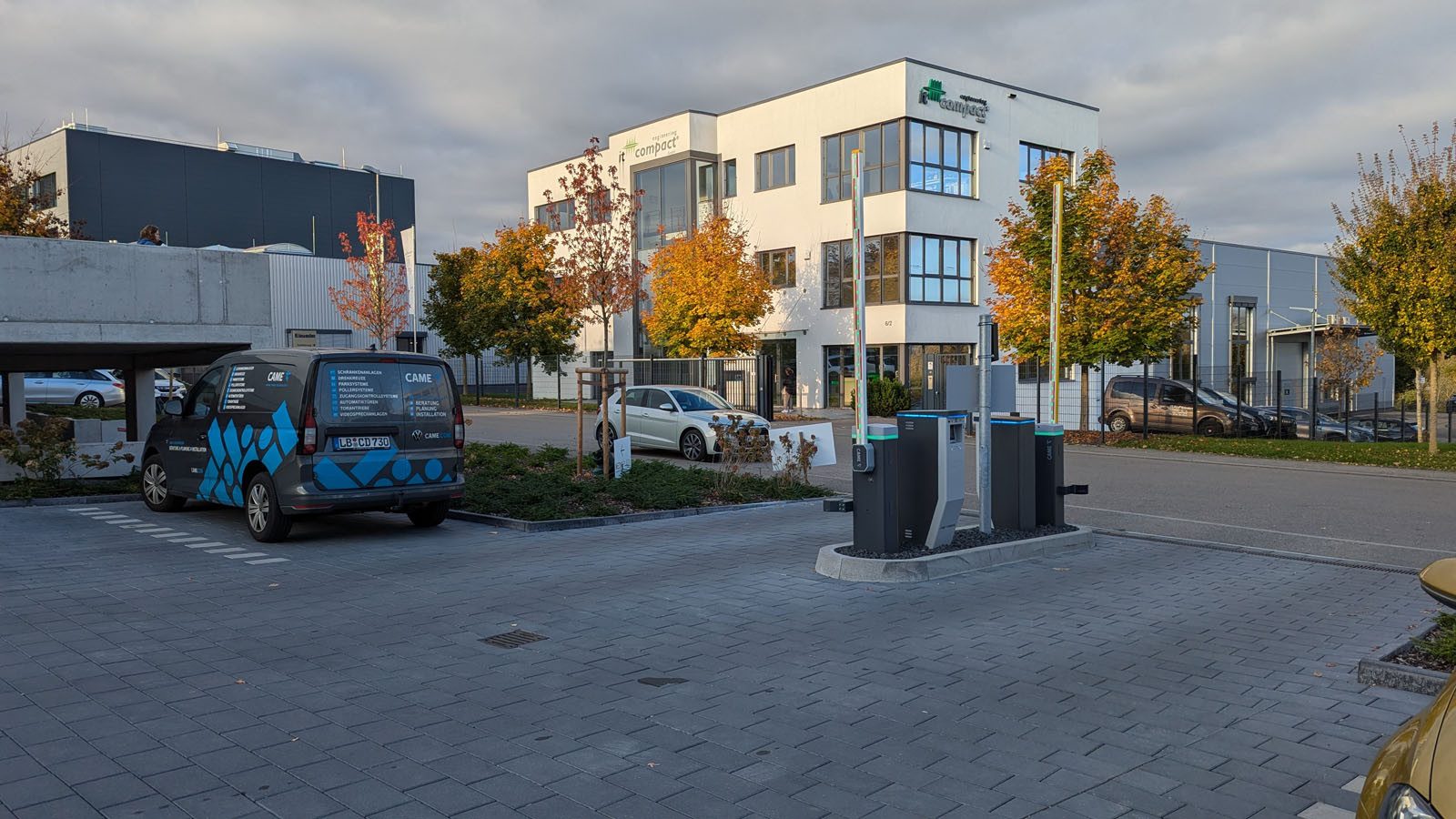

Two parking spaces are available to visitors on the premises of the medical center, each of which can be accessed via a separate driveway. Both entrances are equipped with an entry terminal that issues a parking ticket with a QR code from a paper roll with a capacity of 6000 tickets via a request button. Each parking lot has a pay station that can be used to pay with coins, banknotes, credit/debit cards or NFC. The machine gives change when paying in cash. For short drives in, for example to drop off a person for a doctor’s appointment, a time frame has been defined in which the person can drive out again free of charge. In addition, ticket validators are available to doctors and restaurants, which can be used to validate parking tickets as paid in order to enable customers to park free of charge in general.
The exit is done by scanning the QR code of the paid or validated tickets at the exit terminal.

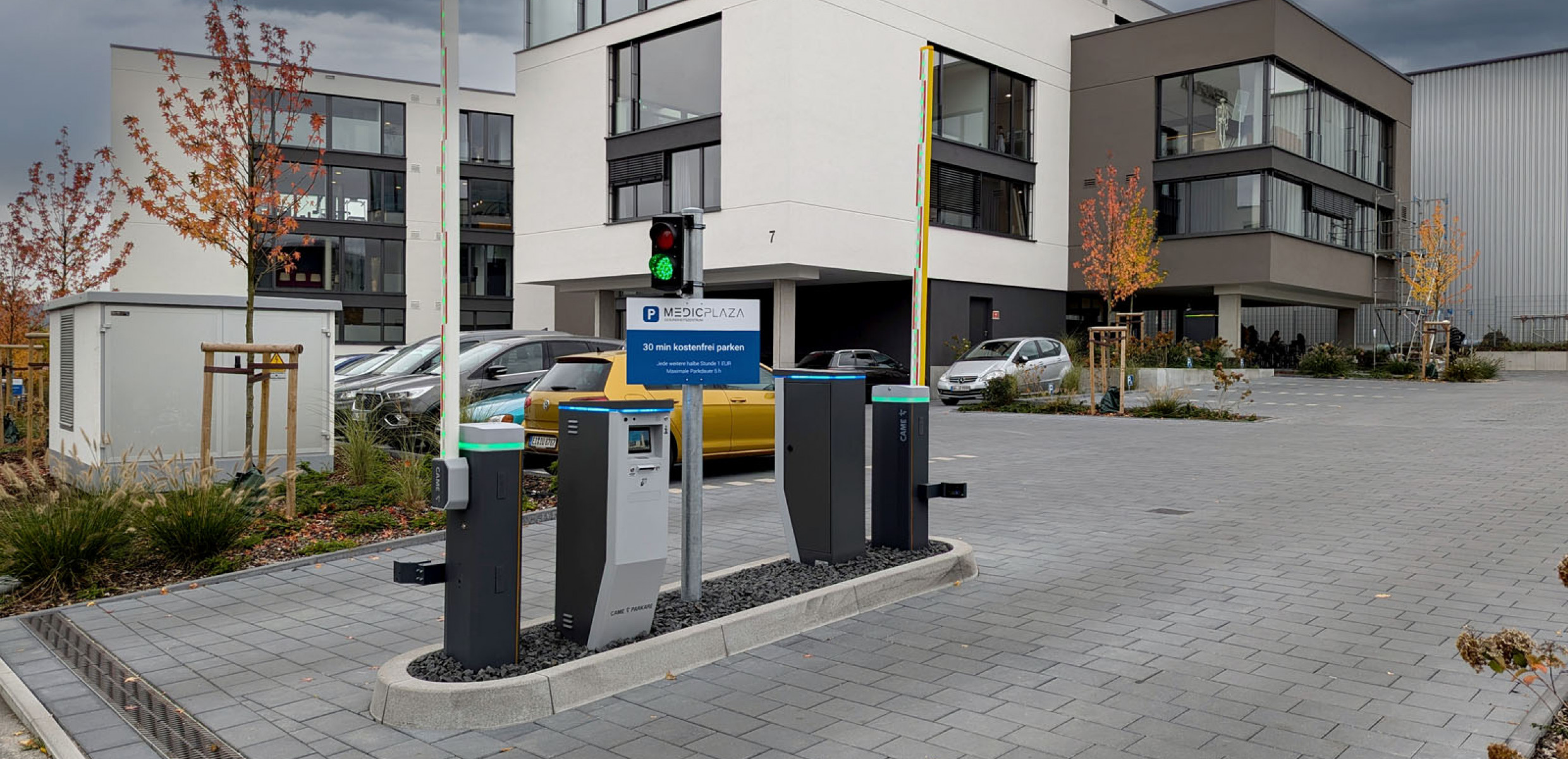

The barriers are equipped with LED lighting that provides a traffic light function via red and green. The terminals are also equipped with LED lighting that provides visual feedback on the status. A VoIP intercom system is integrated into the terminals and checkout automation, which customers can use to request help in the event of a fault.
Employee parking area

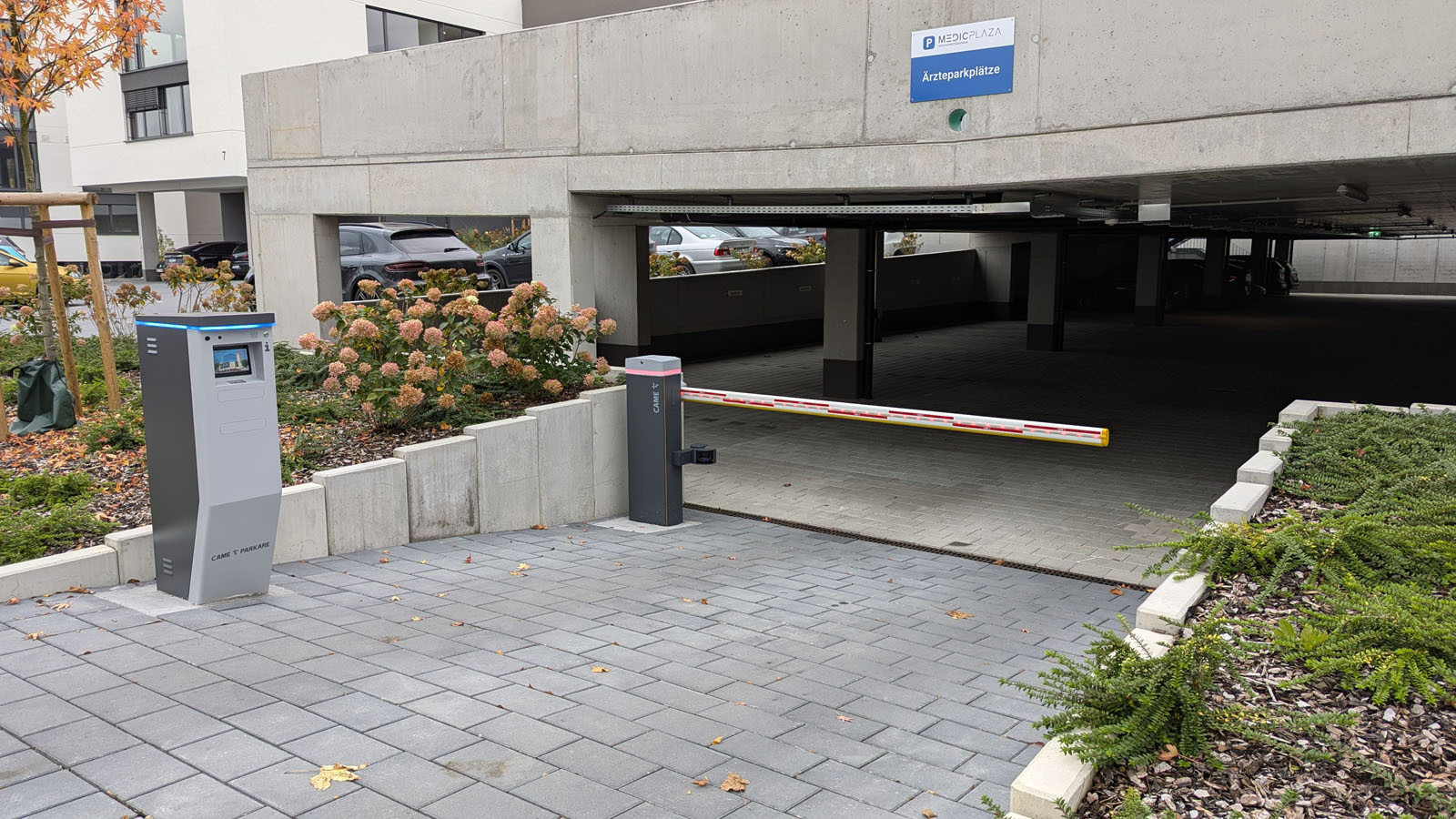

The employee parking area is equipped with a PKE Slim entry terminal and a GARD GT4 barrier. Employees gain access to the parking lot via the RFID reader integrated into the entry terminal. To leave, the barrier opens automatically when a vehicle approaches. The operator manages the employees’ long-term parking cards using the Lince7 parking management software.
Products – Technical details
The supply of the CAME system consists of:
n.5 GARD GT4 barriers
n.2 PKE Slim entry terminals
n.2 PKE Slim exit terminals
n.2 PKE Slim long-term parking terminals
n.2 PKE Slim pay stations
n.2 ticket validators
n.1 management server
