BKX the revolutionary automation for sliding gates

THE REVOLUTIONARY
AUTOMATION FOR SLIDING
GATES

GO TO PRODUCT PAGE >

2 Versions:
800 Kg
1200 Kg

  • 24 V DC Brushless motor
  • Speed up to 24 m/min
  • maximum thrust of 800 N
  • MCBF: 250.000 cycles
  • For gates up to 800 kg and 1200 kg

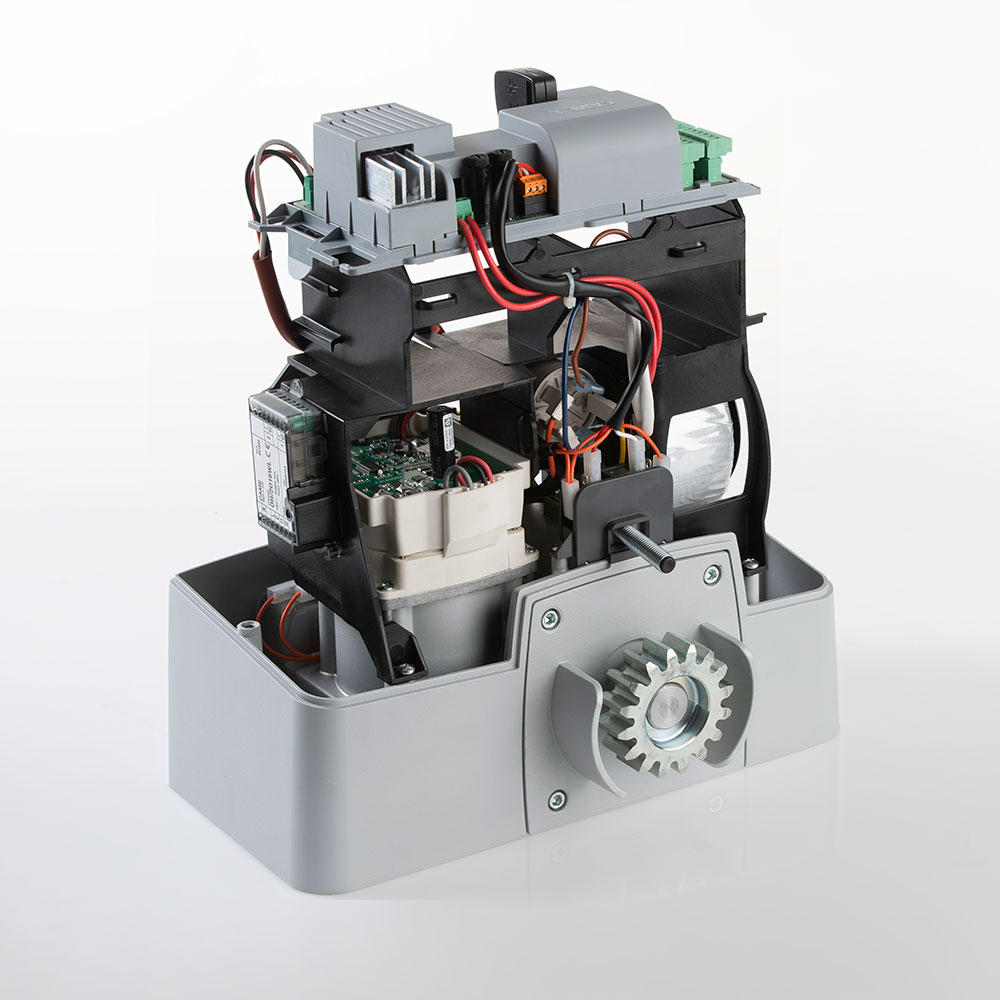

CAME BKX metal structure

DURABLE AND RELIABLE
Designed for high mechanical performance, with a 24VDC brushless motor combined with a gear reducer built with innovative materials, which ensure excellent durability with an MCBF of 250,000 cycles.

ADVANCED ELECTRONICS
Control panel with graphic display, smart configuration via CAME KEY and innovative advanced functions.

COMPLIES WITH REGULATION (EU) 2023/826
Which establishes eco-compatible design requirements for off mode, standby mode, and networked standby energy consumption.

ADAPTIVE SPEED AND
TORQUE TECHNOLOGY

BKX guarantees maximum efficiency and low maintenance costs, through its continuous torque adaptation system (AST).

DISCOVER MORE >

THE BOARD monitors speed, acceleration and deceleration ramps.

THE TORQUE ADAPTATION SYSTEM constantly evaluates weight and friction in order to detect obstacles and maintain speed at the set level.

No loss of time for the installer, great satisfaction for the customer.

CAME BKX no loss of time

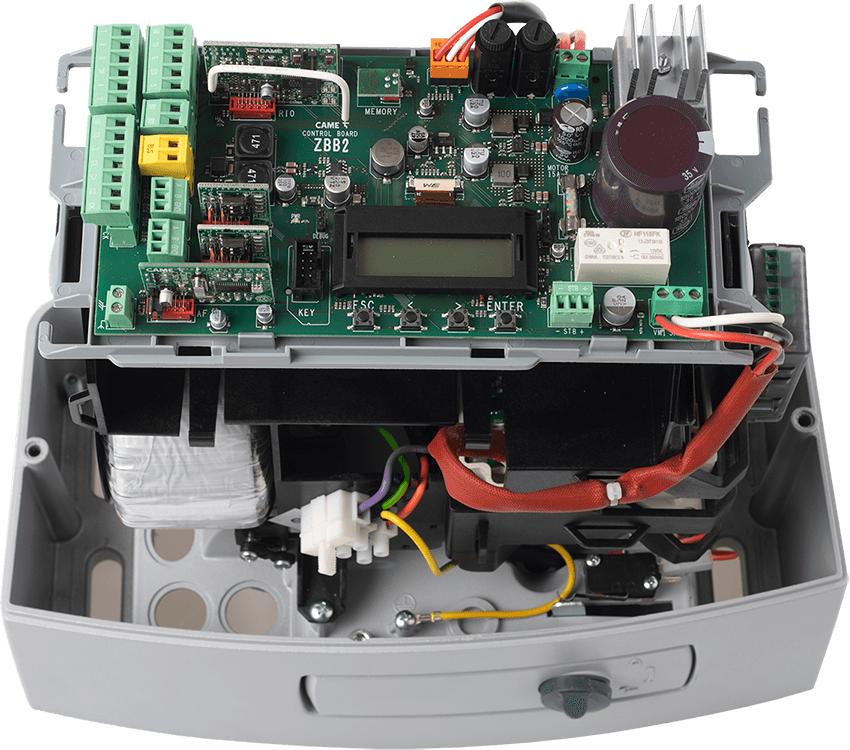

GRAPHIC DISPLAY MEMORY ROLL
for saving the configurations
(included) CXN BUS INPUTS RSE CONNECTORS SLOT FOR CAME KEY
OR GATEWAY WI-FI
Came BKX

Through Wi-Fi connection with CAME KEY, and the use of App SetUp Pro:

  • Access to all automation parameters, which are organized by type
  • Automations management, operations and maintenance control organized by customer
  • Automatic programming of transmitters via QR code
  • Update firmware on the control board for new features
  • Configurations backup to CONNECT

DISCOVER CONNECT >

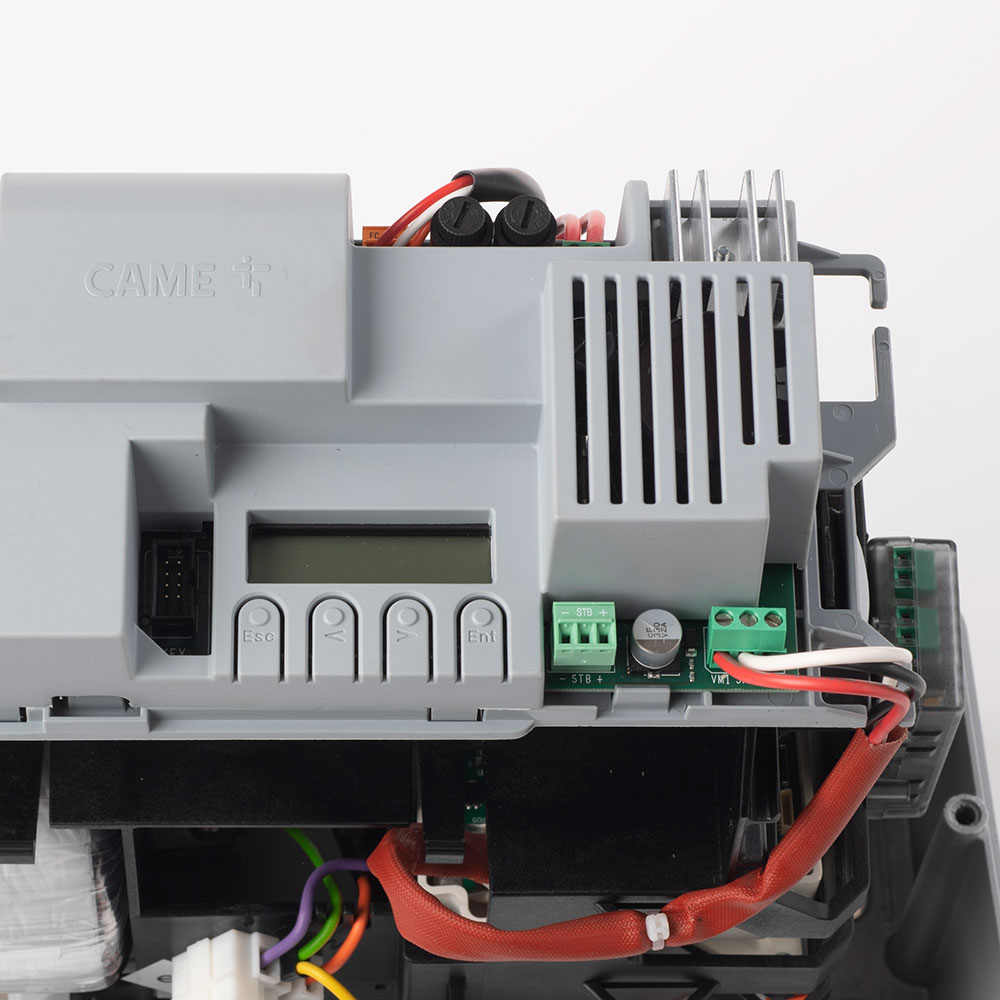

GUIDED CONFIGURATION

Came BKX configuration via smartphone < CONFIGURATION VIA SMARTPHONE
Came BKX configuration via auto-setup CONFIGURATION VIA AUTO-SETUP >

The graphical display allows all configurations to be made in 13 different languages using the 4 control keys. The two available guided procedures make the installer’s work much easier.

Through these special functions, it is simply a matter of following the instructions on the display to properly perform both the commissioning of the automation and the impact tests.

COMPATIBLE WITH ALEXA
AND GOOGLE HOME

Thanks to the optional Wi-Fi gateway that can be plugged directly onto the electronic board, BKX can connect to any router to enable remote management.
In addition to the Automation App that enables users to control the automation from a smartphone, it is also possible to use Amazon Alexa and Google Home voice commands, to open and close the gate, stop it, or know its status.

Download the AUTOMATION app from Google Play and the App Store Get it on Google Play Get it on App Store

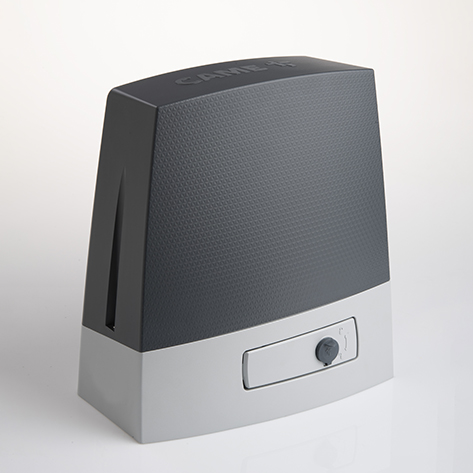

CAME BKX dedicated slots

DEDICATED SLOTS
FOR ACCESSORIES

  • Dedicated space for
    n°2 batteries 12V 5 Ah
  • Battery charger
    (801XC-0250)
  • RGSM001 Communication module
    (806SA-0010)
  • SMA Metal Mass Detector
    (009SMA)
  • Heating element and thermostat
    (001RSDN003)
  • Green Power module
    (806XG-0080) installed
