NEW ATI

Reliability redefined. Even faster.
Still ATI.

Go to the next section
Go to the previous section

MULTI-HOLE TAIL BRACKET
Pre-welded, it is included to facilitate the correct positioning of the operator, based on the size of the post

MANUAL RELEASE
The operating pin is protected by a flap, and the trilobe key is housed directly inside the release compartment

PROTECTIVE CASING
Made of extruded aluminum, electrostatically powder-coated in the same color as the half-cases

DIE-CAST ALUMINUM HALF-CASES
To ensure strength and durability over time

INNOVATIVE DESIGN
Thought out down to the smallest detail, to enhance ergonomics and make the forms blend in with any context

MULTI-HOLE TAIL BRACKET Pre-welded, it is included to facilitate the correct positioning of the operator, based on the size of the post MANUAL RELEASE The operating pin is protected by a flap, and the trilobe key is housed directly inside the release compartment PROTECTIVE CASING Made of extruded aluminum DIE-CAST ALUMINUM HALF-CASES To ensure strength and durability over time INNOVATIVE DESIGN Thought out down to the smallest detail, to enhance ergonomics and make the forms blend in with any context
  • IP 54 protection rating
  • Resistant to UV rays
  • Operating tempreture
    °C: -20° and +55°
Go to the next section
Go to the previous section

C-MAX: 75 mm

OPENING TIME AT A 90°: 13 s

LIMITS OF USE: gate leaf max 3 m
length and 400 kg weight
Go to the next section
Go to the previous section

VERSATILE
designed in following versions

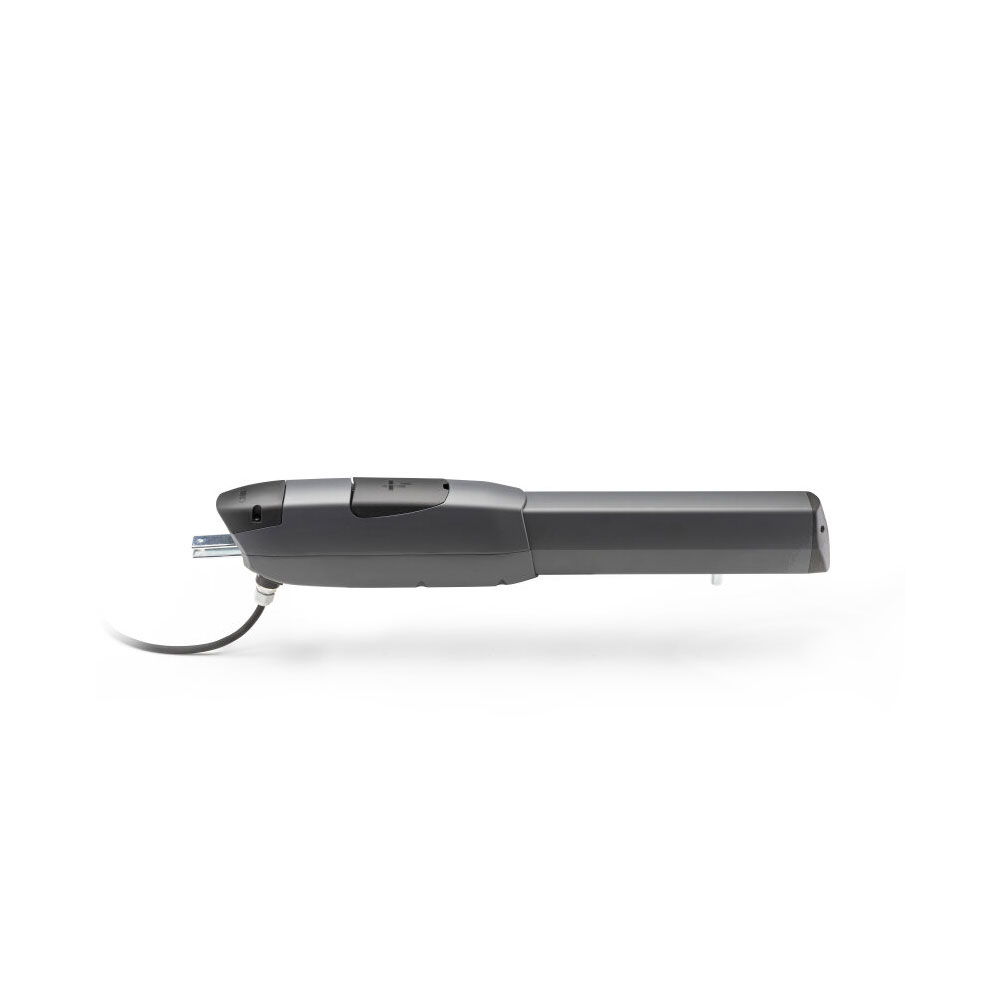

Per ante fino a 3 metri < FOR LEAVES UP TO 3 M

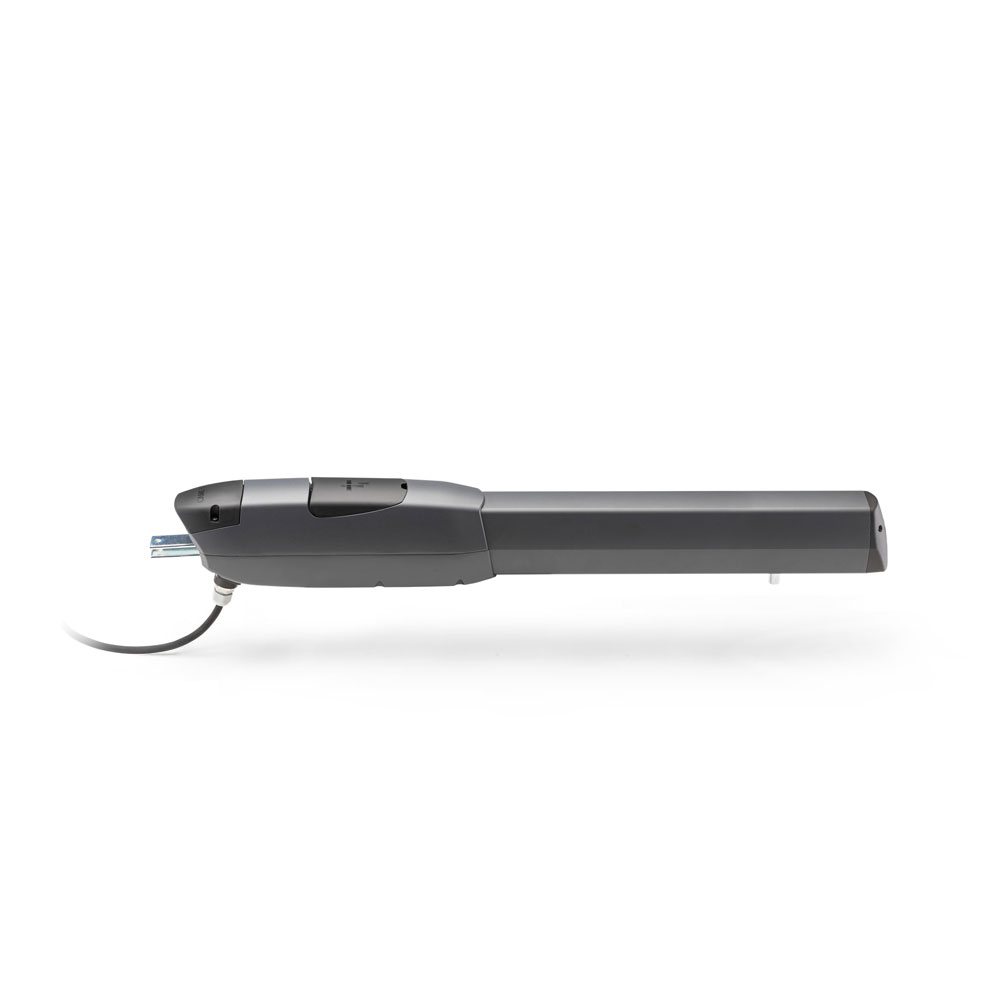

Per ante fino a 5 metri FOR LEAVES UP TO 5 M >
Go to the next section
Go to the previous section

C-MAX: 155 mm

OPENING TIME AT A 90°: 19 s

LIMITS OF USE: gate leaf max 5 m
length and 400 kg weight
Go to the next section
Go to the previous section

ZLX control boards
the universal solution for 24 V and 230 V motors

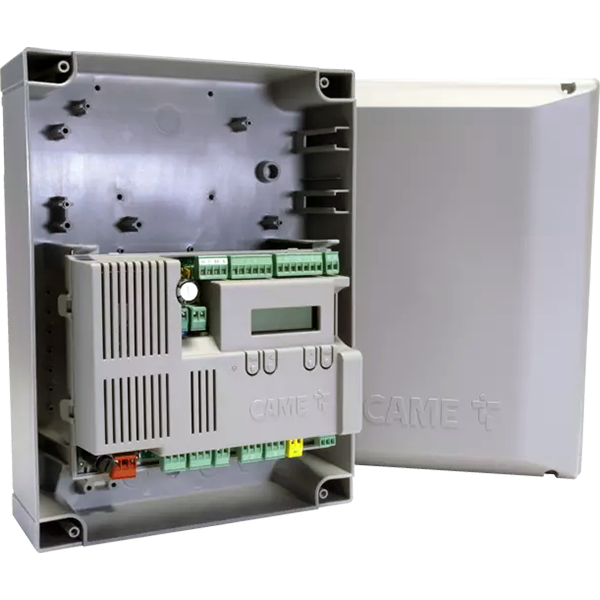

ZLX230

ZLX230
Discover ZLX230

ZLX230

For 230 V motors with encoder:
ATI30AGF
ATI50AGF

  • Intelligent motion control
  • Settable security inputs
  • CXN BUS and RIO system connections
  • Remote management with CAME Connect
×

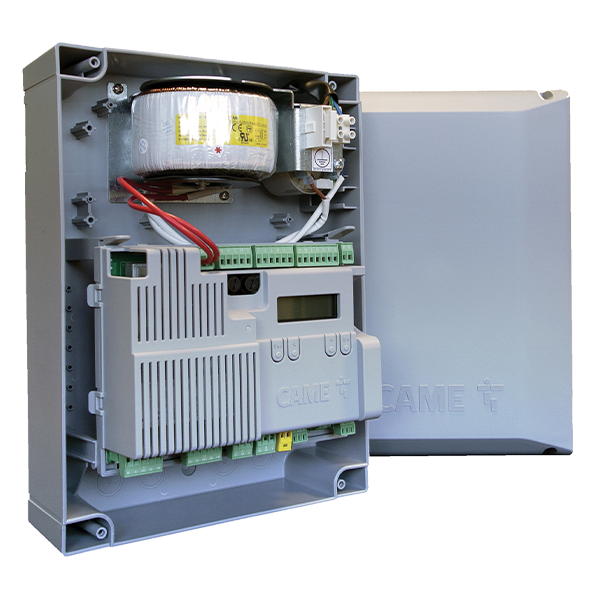

ZLX24

ZLX24
Discover ZLX24

ZLX24

For 24 V motors:
ATI30DGF
ATI50DGF

  • Intelligent motion control
  • Settable security inputs
  • CXN BUS and RIO system connections
  • Remote management with CAME Connect
×

ZLX control panels are designed to comply with (EU) REGULATION 2023/826 on low standby consumption.

Go to the next section
Go to the previous section

BATTERY-POWERED
EMERGENCY SYSTEM

In the 24-volt operator versions, ATI ensures high performance and reliability, as well as allowing pairing with a battery system to operate even in the event of a power outage.

ADAPTIVE SPEED
AND TORQUE CONTROL

Adaptive Speed and Torque Technology ensures precise obstacle detection and prevents false issues, such as dirt or small rocks on the rail, that could cause blockages and require a technician’s intervention.
No wasted time for the installer, maximum satisfaction for the customer!

24 V DC
versions
only
Go to the next section
Go to the previous section

EASY PROGRAMMING

ZLX230 and ZLX24 can be configured using a standard manual procedure, or using a smartphone thanks to CONNECT technology.

The direct plug can be used for connecting the CAME KEY or CAME Gateways, enabling a complete range of additional functions for the local or remote management of the automation by using the App SetUp Pro.

DISCOVER CAME KEY >

Logo Connect
Go to the next section
Go to the previous section

COMPATIBLE WITH ALEXA
AND GOOGLE HOME

Thanks to the optional Wi-Fi gateway that can be plugged directly onto the electronic board, ATI can connect to any router to enable remote management.
In addition to the Automation App that enables users to control the automation from a smartphone, it is also possible to use Amazon Alexa and Google Home voice commands, to open and close the gate, stop it, or know its status.

Download the AUTOMATION app from Google Play and the App Store Get it on Google Play Get it on App Store
