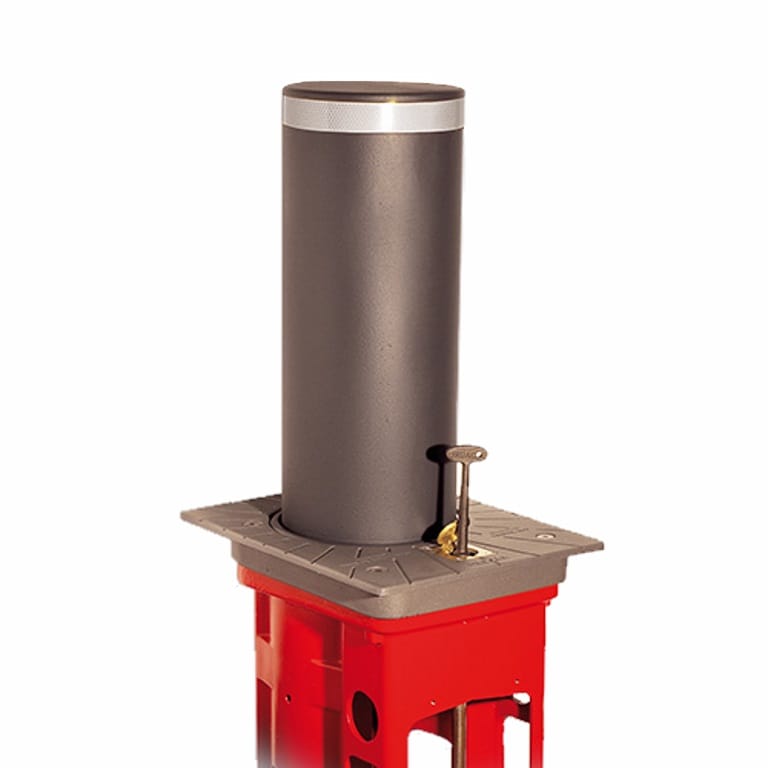

G6 - Semi automatic retractable bollard

Conception:    Urbaco Monobloc® certificate : 3 elements of structure : casing, cover and bollard head each molded one piece spheroidal cast iron material.
Use:    Occasional openings
Material:    11mm average thick cast-iron material
Display device:    Class II reflective band (White)
Protection of the lock:    The key opening is protected by a bronze cover plate stopping the ingress of dust or gravel.
Standard imprint key:    E11 (The locking key matches with the imprint of the lock rod)
Operating safety:    Reinforced push-to-release bar and lock bolt
Impact resistance:    Ø200 : Middle (1,2T at 50km/h)
Ø250 : High (2,5T at 55km/h)
Reability:    4.5 million of operations without any failure neither part replacement
Standards:    ISO EN 124 – E600 Class – Accepted vertical load: 60T per axle / In compliance with NFP98-310 standard / In compliance with the French PMR decree
Dimensions (mm):    Ø120 x H500  I  Ø120 x H750
Ø200 x H500  I  Ø200 x H750
Ø250 x H500  I  Ø250 x H750
Design:    CYLINDER
