MAIN FEATURES

  • 24 V DC gearmotor available also with encoder to ensure heavy-duty service levels.
  • Linear design with galvanized steel cabinet with rough finish.
  • Also available made of AISI 304 stainless steel.
  • Built-in LED flashing light.
  • Photocells that can be integrated directly into the cabinet.
  • Boom casing for protection against shearing in opening and closing.
  • Accessory for boom safety release in case of impact for high traffic applications.
  • Available with paired or alternate operation (only for G4040E - G4040IE - G4040EZ - G4040EZT).
  • Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.

Ideal solution for heavy-duty service on driveway

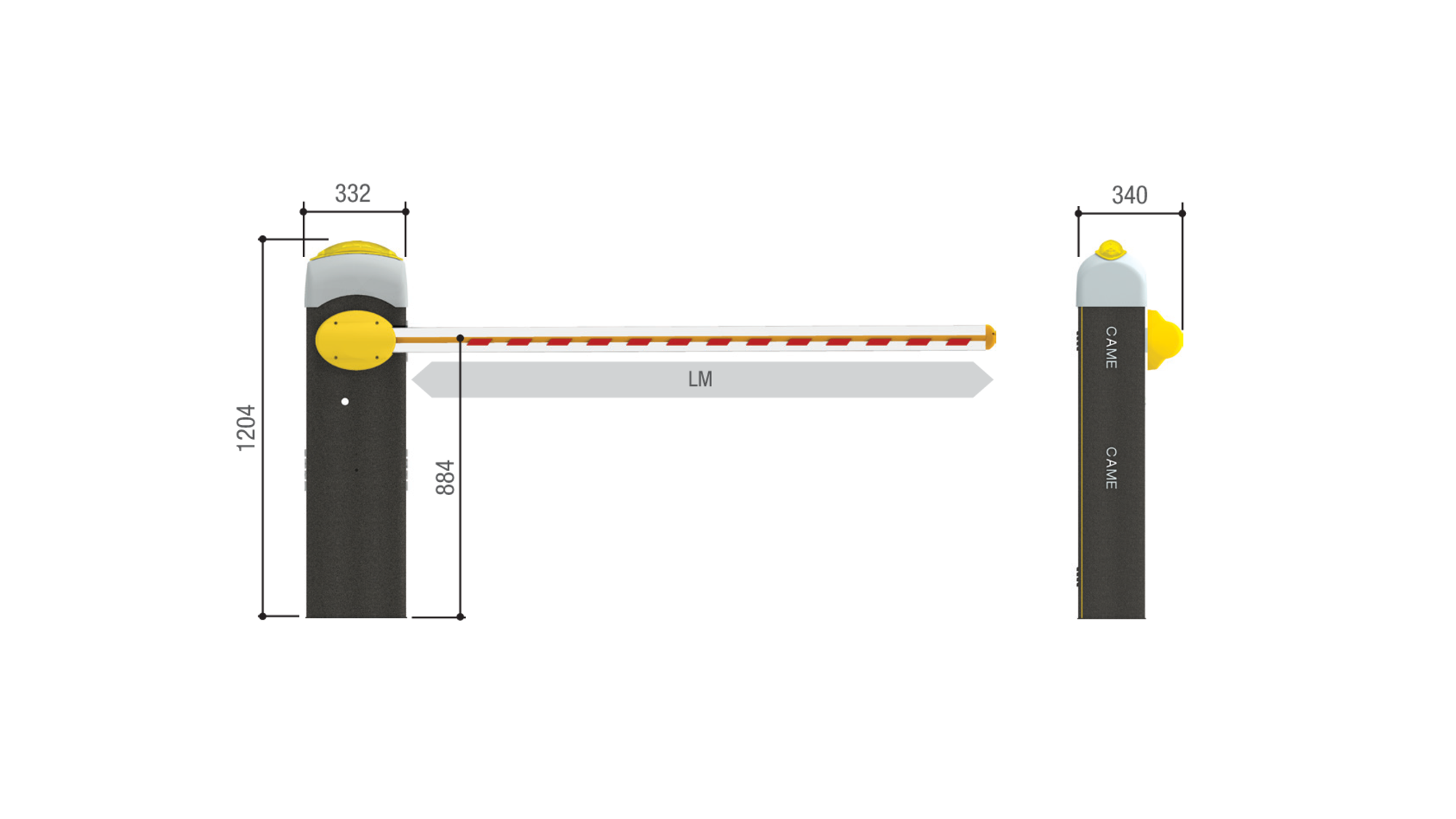

  • Max. net clearance width (m)3,75
  • Max. net clearance width (m)3,75
  • Max. net clearance width (m)3,75
  • Max. net clearance width (m)3,75
MODELS G4040Z G4140IZ G4140ZU G4140Z
Protection rating (IP) 54 54 54 54
Power supply (V - 50/60 Hz) 230 AC 120 AC 120 AC 120 AC
Power supply to motor (V) 24 DC 24 DC 24 DC 24 DC
Absorption (A) 15 Max. 15 Max. 15 Max. 15 Max.
Power (W) 300 300 300 300
Opening time at 90° (s) 2 ÷ 6* 2 ÷ 6* 2 ÷ 6* 2 ÷ 6*
Duty/cycle (%) HEAVY-DUTY SERVICE HEAVY-DUTY SERVICE HEAVY-DUTY SERVICE HEAVY-DUTY SERVICE
Torque (Nm) 200 200 600 200
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55

OUR RANGE

Barriers with 24 V DC gearmotor and built-in control panel

001G4040Z

Galvanized, painted steel and set up for fitting accessories.

Download Dichiarazione di Conformità - G4040Z

120 V AC barriers with 24 V DC gearmotor and built-in control panel

001G4140IZ

Barrier made of satin-coated AISI 304 stainless steel, set up for fitting accessories.

001G4140ZU

Galvanized, painted steel and set up for fitting accessories.

001G4140Z

Galvanized, painted steel and set up for fitting accessories.

Accessories for: 001G4040E - 001G4040IE - 001G4040EZT

002RSE

Interface card for controlling two operators or for enabling the Came Remote Protocol.

Download Dichiarazione di Conformità - RSE

    001R800

    Control board for decoding and access-control management via keypad selectors.

    Download Dichiarazione di Conformità - R800

      001R700

      Control board for decoding and access-control management via transponder selector.

        Balancing springs

        001G02040

        Balancing spring Ø 40 mm.

          001G04060

          Balancing spring Ø 50 mm.

            001G06080

            Balancing spring Ø 55 mm.

              Accessories for: 001G4040Z - 001G4040IZ - 001G4140IZ - 001G4140Z

              002LB38

              Circuit board for emergency operation and battery charging.

              Download Dichiarazione di Conformità - LB38

              Accessories for: 001G4040E - 001G4040IE - 001G4040EZ - 001G4040EZT

              002LB39

              Circuit board for emergency operation and battery charging.

              Download Dichiarazione di Conformità - LB39

              Accessories

              001G02801

              Integrated, dome flashing light.

              Download Dichiarazione di Conformità - G02801

                001G02802

                Support for fitting DIR-series photocells.

                  001G03751

                  Brace for fitting emergency batteries.

                    001G03750

                    Semi-oval section boom made of white, painted aluminum, with groove strip and shock-resistant fender. Boom length: 4 m.

                      001G03752

                      White painted semi-oval section boom, with groove covering profile. Boom length: 4 m.

                        001G0465

                        Painted aluminum skirt (modules L = 2 m).

                          001G02807

                          Fixed rest.

                            001G02808

                            Swing rest.

                              001G02809

                              Package of 20 red, reflective, adhesive strips.

                                001PSRT01

                                Heater kit with thermostat.

                                  Accessories for: 001G03750

                                  001G028401

                                  Yellow luminous cord with white LEDs.

                                  Download Dichiarazione di Conformità - G028401

                                    001G028402

                                    Cable for connecting the luminous cord.

                                      803XA-0020

                                      Red/green LED strips for booms up to 4-m long.

                                        803XA-0150

                                        Red/green LED strip for booms up to 3 m long.

                                          001G03756

                                          Inner reinforcement for semi-oval section barrier; indispensable for gross clearances exceeding 2.5 m.

                                            001G03755DX

                                            Joint for semi-oval section boom for right-hand barriers.

                                              001G03755SX

                                              Joint for semi-oval section boom for left-hand barriers.

                                                001G04003

                                                BASIC, detaching, boom fastener.

                                                  001G04002

                                                  PLUS, detaching, boom fastener.

                                                    Accessori per: 001G03752

                                                    001G03753

                                                    Fastening flange for semi-oval section boom.
