MAIN FEATURES

  • 5" color display with OSD
  • High-quality handsfree audio
  • Concealed LED signal
  • Soft-touch buttons
  • Self-inserting video from entry panels
  • Master/Slave function and video relaying between extensions function for simultaneous calls.
  • It includes a bracket for wall mounting on horizontal or vertical 503 box, on 506E box and Ø 60 mm round box.

PLX is the handsfree video entry system with a modern, minimalist design, stylish matte white finish, and 5" display.

MODELS PLX V PLX V BF PLX V WIFI PLX V WIFI BF
Dimensions (mm) 155 x 170 x 25 155 x 170 x 25 155 x 170 x 25 155 x 170 x 25
Power supply by BUS (V) 15 ÷ 20 DC 15 ÷ 20 DC 15 ÷ 20 DC 15 ÷ 20 DC
Absorption by BUS (mA) 200 200 400 400
Local power supply (V) - - 14 ÷ 18 DC 14 ÷ 18 DC
Consumption in stand-by mode (mA) <1 <1 <8 <8
Operating temperature (°C) +5 ÷ +40 +5 ÷ +40 +5 ÷ +40 +5 ÷ +40
Protection rating (IP) 30 30 30 30
Video standard PAL/NTSC PAL/NTSC - -
Frequency (MHz) - - 2.412 - 2.472 2.412 - 2.472
Wireless Standard - - IEEE 802.11b/g/n IEEE 802.11b/g/n
Color White White White White

OUR RANGE

Handset video intercoms for X1 systems

840CH-0110

PLX V

Handsfree video entry system with soft-touch buttons, 5" LCD display, 4 buttons for intercom calls or auxiliary commands, white. Equipped with button for ringtone adjustment/exclusion.Wall monitor with 5˝ color LCD display equipped with OSD for adjusting video parameters (brightness, color, contrast). The 5 main touch buttons are used to manage the primary functions such as answering and hanging up communication, door opening, self-insertion of entry panel videos, ringtone adjustment/exclusion (with signaling LED when excluded) and the sending of a programmable auxiliary command. Suitable for multi-user systems as it allows up to 6 intercom calls and the sending of the "Panic" signal for the porter to call for help. If configured it enables up to 4 additional auxiliary commands, alternative to intercom calls. It allows manging the "gate opener" function and displays the status of the gate controlled by means of a signaling LED. It includes a bracket for wall mounting on horizontal or vertical 503 box and on Ø 60 mm round box. Compatible with the X1 and XIP systems.

Download PLX conformity declaration (CE)

840CH-0120

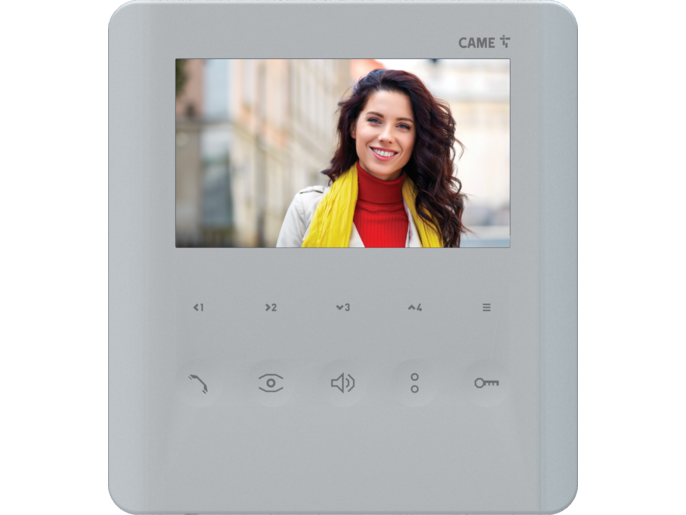

PLX V BF

Handsfree video entry system with soft-touch buttons, 5" LCD display, 4 buttons for intercom calls or auxiliary commands, white. Equipped with button for ringtone adjustment/exclusion. Hearing aid function for hearing aid users.Wall monitor with 5˝ color LCD display equipped with OSD for adjusting video parameters (brightness, color, contrast). The 5 main touch buttons are used to manage the primary functions such as answering and hanging up communication, door opening, self-insertion of entry panel videos, ringtone adjustment/exclusion (with signaling LED when excluded) and the sending of a programmable auxiliary command. Suitable for multi-user systems as it allows up to 6 intercom calls and the sending of the "Panic" signal for the porter to call for help. If configured it enables up to 4 additional auxiliary commands, alternative to intercom calls. It allows manging the "gate opener" function and displays the status of the gate controlled by means of a signaling LED. With built-in audio-frequency induction system for hearing aids, in the "T" position. It includes a bracket for wall mounting on horizontal or vertical 503 box and on Ø 60 mm round box. Compatible with the X1 and XIP systems.

Download PLX conformity declaration (CE)

840CH-0130

PLX V WIFI

Handsfree video entry system with soft-touch buttons, 5" LCD display, 4 buttons for intercom calls or auxiliary commands, white. Equipped with button for ringtone adjustment/exclusion. Equipped with Wi-Fi connection.Wall-mounted monitor with 5˝ color LCD display equipped with OSD for adjusting device parameters, integrated Wi-Fi for remote call to smartphone or tablet with dedicated APP. The 5 main touch buttons are used to manage the primary functions such as answering and hanging up communication, door opening, self-insertion of entry panel videos, ringtone adjustment/exclusion (with signaling LED when excluded) and the sending of a programmable auxiliary command. Suitable for multi-user systems as it allows up to 6 intercom calls and the sending of the "Panic" signal for the porter to call for help. If configured it enables up to 4 additional auxiliary commands, alternative to intercom calls. It allows manging the "gate opener" function and displays the status of the gate controlled by means of a signaling LED. It includes a bracket for wall mounting on horizontal or vertical 503 box and on Ø 60 mm round box. Compatible with the X1 and XIP systems. Power supply via BUS cable or via local power supply (14 ÷ 18V DC).

840CH-0140

PLX V WIFI BF

Handsfree video entry system with soft-touch buttons, 5" LCD display, 4 buttons for intercom calls or auxiliary commands, white. Equipped with button for ringtone adjustment/exclusion. Equipped with Wi-Fi connection. Version with hearing impaired function for hearing aid wearers.Wall-mounted monitor with 5˝ color LCD display equipped with OSD for adjusting video parameters (brightness, color, contrast), integrated Wi-Fi for remote call to smartphone or tablet with dedicated APP. The 5 main touch buttons are used to manage the primary functions such as answering and hanging up communication, door opening, self-insertion of entry panel videos, ringtone adjustment/exclusion (with signaling LED when excluded) and the sending of a programmable auxiliary command. Suitable for multi-user systems as it allows up to 6 intercom calls and the sending of the "Panic" signal for the porter to call for help. If configured it enables up to 4 additional auxiliary commands, alternative to intercom calls. It allows manging the "gate opener" function and displays the status of the gate controlled by means of a signaling LED. With built-in audio-frequency induction system for hearing aids, in the "T" position. It includes a bracket for wall mounting on horizontal or vertical 503 box and on Ø 60 mm round box. Compatible with the X1 and XIP systems. Power supply via BUS cable or via local power supply (14 ÷ 18V DC).

Accessories

840XC-0150

AGT KT V

Desktop stand for video entry panels of the AGT V, Agata Video, Perla Video and Opale series.Plexiglass 10 mm-thick stand, supplied with white RJ45 cable and terminal board cover with PMMA laminate - metallic gray.
