MAIN FEATURES

  • Cutting-edge technological solutions: QR, bar codes, TFT screens, NFC, contactless, etc..
  • The solar panel ensures great operational autonomy, and can operate connect up to the power grid.
  • Different wireless communication systems (3G, 4G).
  • Pay with coins, banknotes, EMV (chips, PIN and contactless) or with mobile devices (via App or NFC by using a contactless EMV reader).
  • Several operating modes are available, like: Pay & Display, Pay by Plate and Pay by Space.
  • Varoious keyboards availables, Lectors, Payments methods, etc. to be chosen depending on the customers needs.
  • Large, backlit, color screen makes user interaction easier.
  • Modern ergonomic design for easier interaction in urban settings.
  • Guaranteed protection from water and dust.
  • Tamper-proof doors and special paint coat to ensure maximum resistance against vandalism.
  • Contactless cards for electric locks and separate, independent access to the coin box.
  • LEDs to alert as to the state of the machine. These are visible from afar to help operators in their work.

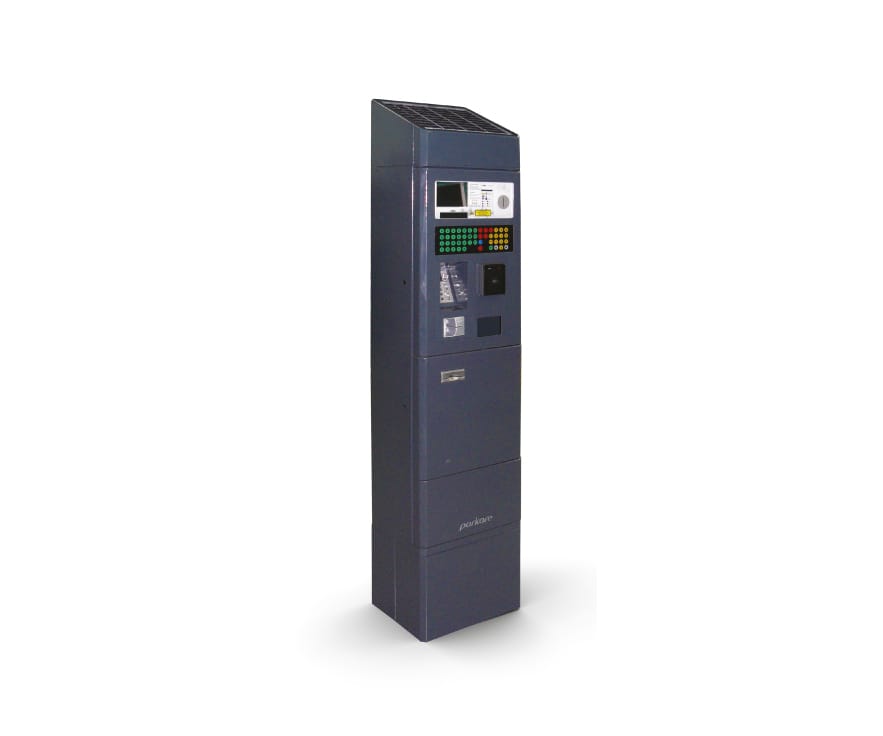

TEMPO PAY & DISPLAY SYSTEM

Uno strumento ideale per controllare le aree di parcheggio mediante smartphone, con connessione permanente alla rete mobile.

Mechanical

TECHNICAL DATA

  • Height: 1785 mm
  • Width: 370 mm
  • Depth: 290 mm
  • 2.0mm thick stainless steel plate
  • Finished with oven dried polyester powder paint
  • Optional anti-graffiti coating layer
  • Anti-leverage doors 8/12 anchor points (top-maintenance / lower-cashbox)
  • Polycarbonate display window - fire resistant and unbreakable
  • Capacitive anti-vandal keyboard
  • Fastenings between the body of the machine and pedestal accessible only internally
  • Modular design for easy replacements of components and testing

Operating environment

TECHNICAL DATA

  • Temperature: -10 ºC to + 55 ºC.
  • Maximum relative humidity: 90% non-condensing.

Power

TECHNICAL DATA

  • Battery: 12V, 24Ah and integrated solar panel of 10 W

Printer

TECHNICAL DATA

  • Printer with long life head.
  • Standard ticket of 57 mm. fixed-width and variable length between 95 and 124 mm.
  • Ticket is sheltered from wind and rain during and after emission.
  • Tickets supplied in rolls of 3,000 tickets.
  • Ticket issue time of 2.5 seconds.
  • Detection of end of roll and low level ticket stock.

Card/Ticket reader

TECHNICAL DATA

  • Anti-vandal protection.
  • EMV Reader (Europay, Mastercard, Visa) advanced as PCI -PTS 3.0 standard and software RedSýs 4.0 protocol.
  • Blacklists support, reloading, mixed payments and saving of all transactions.
  • Proximity reader (contactless) payment card and subscribers, which meets the standards ISO 14443 A / B, PayPassTM MasterCard, Visa and contactless and EMV cards PayWaveTM (optional).
  • Barcode reader (optional).



Coin acceptor

TECHNICAL DATA

  • Programmable opening and closing shutter (vandal protection).
  • Pre-paid system: return of the same coin in case of cancellation of the operation.
  • Accepts up to 15 different currencies. Detection opto electronic and magnetic devices detecting physical characteristics (string detection and anti-lead).

Coin box

TECHNICAL DATA

  • Capacity approx. 5.5 litres.
  • Collection by exchange method. The coin box is self-closing when removed.
  • Configurable collection tickets (voucher or total). Query functions.
  • Optional inclusion of a black box to control access to the collection.

Information

TECHNICAL DATA

  • Hierarchical access levels to operational, management and financial data including configurations (e.g. tariffs)

Displays

TECHNICAL DATA

  • Backlit Display Operation colour TFT 5.7 “QVGA (320 x 240).
  • Display time graphic 48 x 16 mm. Displays the time in 4 digits of 9 mm height.
  • Configurable to show 12 or 24 hour time format.

Indicators

TECHNICAL DATA

  • LED indicators showing status of the machine which can be viewed from a distance by operator.

Communications

TECHNICAL DATA

  • Bidirectional: downloading of lists, configurations and software; reception history, alarm and maintenance requests.
  • Shipping operations and transactions in real time.
  • Double GPRS configuration which enables the operator SIM change without modifying the initial configuration.
  • Standard : GPRS (2.5G ).
  • Optional: CDMA (3G) and Bluetooth.
  • Mobile data capture equipment (EMC) PSION.

Functions

TECHNICAL DATA

  • Capacity 8 MB of internal memory, 32 MB of Flash memory and SD card option for maintenance.
  • Capacity 10 different rates of any type (table, annulment, resident, etc. . .), All streamable.
  • Extensive configuration possibilities: schedules, holidays, fares, cards, hardware parameters, etc. . . .
  • Menus of operation for testing, initialization settings, queries, etc.
  • Alarm history and intervention.

Software available

TECHNICAL DATA

  • Tempo Enterprise. Basic package management and configuration for any Windows platform.

Download documents

ON-STREET CATALOGUE
