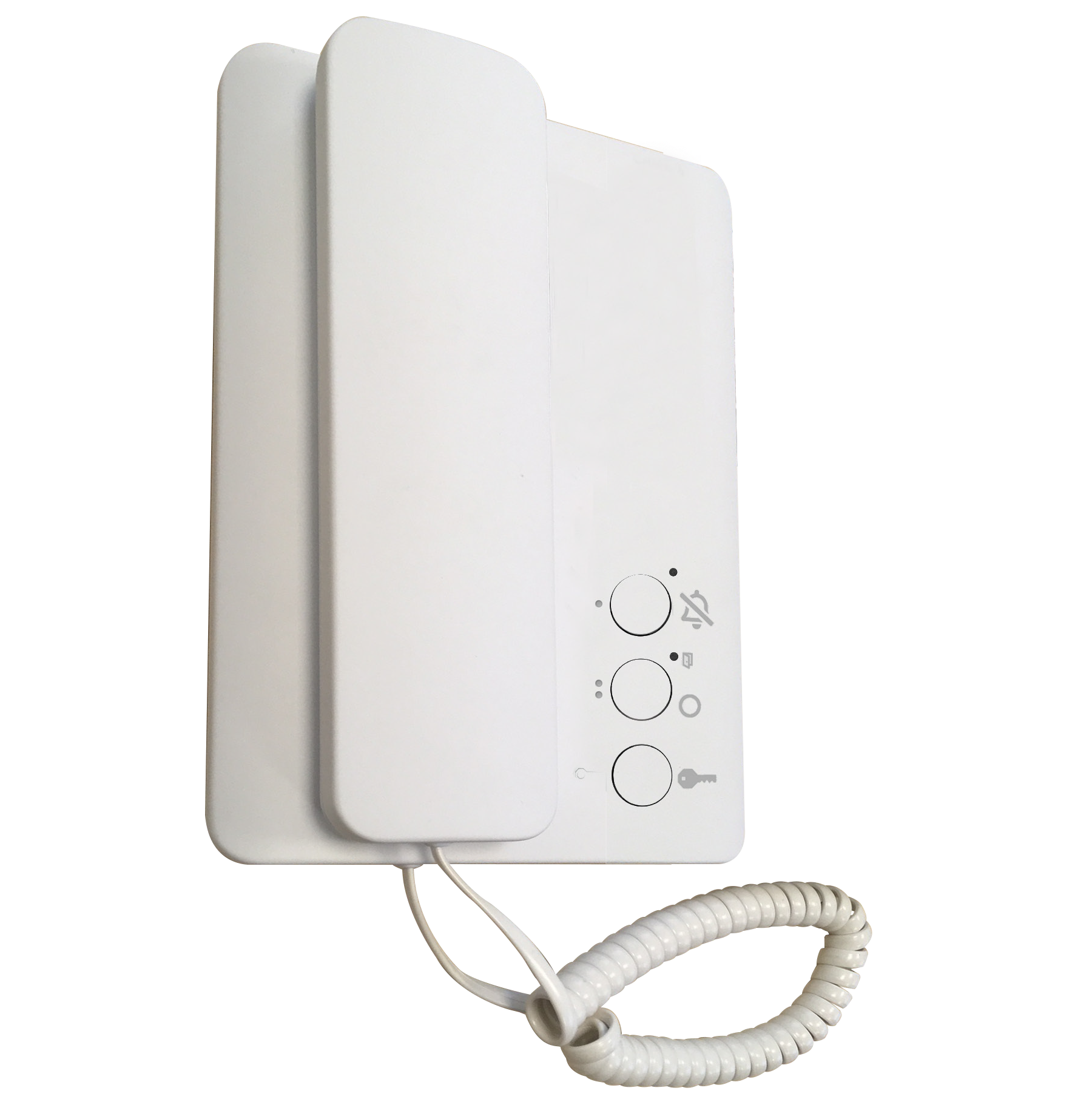

The ED5 Handset allows an occupant of a dwelling to answer a call from a visitor at a communal entrance and have a two-way simultaneous conversation. They can then enable the remote operation of the electric locking device to permit the visitor access.
The ED5 is constructed from hard wearing HIPS plastic in a sleek and modern design. HIPS has good mechanical properties; impact resistance and toughness. The handset is a ‘surface mount’ design for easy installation.
The ED5 is compatible with APEX, Elite and legacy DC systems.
AGT K TA
Desktop stand. Plexiglass 10mm thick stand supplied with terminal board cover with PMMA laminate - metallic grey
| ED5 (840CA-0070) | |
|---|---|
| Buttons | 16mm door release, privacy and concierge call back buttons |
| Privacy | 6 timeout settings, 5,15 or 30 minutes, 1,4 or 8 hours. Can be disabled or latched on/off |
| Call tone | Pulsed tone with External volume adjustment slider on RHS. Muted call tone when on privacy |
| Operating Voltage | 12-15V DC (13.8V Nominal) |
| Power Consumption | 2.6W Max, 0.15W Quiescent |
| Cabling | CAT5/ CW1308 4 pair minimum (leaves 1x core spare) – Note: 3 pair can be used if Door Open LED function omitted |
| Connections | 10-way Screw Terminal – slotted head |
| Dimensions | 115 x 189 x 27 (without receiver) 115 x 189 x 50mm (with receiver) (approximate excluding cable) |
| Colour | White |
