| Product Code | ENC3X3X150 | ENC4X3X150 | ENC4X4X150 | ENC5X4X150 | ENC6X4X150 | ENC6X5XC150 | ENC6X6X200 |
|---|---|---|---|---|---|---|---|
| Dimensions (mm) | 300 x 300 x 150 | 400 x 300 x 150 | 400 x 400 x 150 | 500 x 400 x 150 | 600 x 400 x 150 | 600 x 500 x 150 | 600 x 600 x 200 |
| Number of Locks | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Key Type | 1242E | 1242E | 1242E | 1242E | 1242E | 1242E | 1242E |
| Protection Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| RAL Colour | 7035 | 7035 | 7035 | 7035 | 7035 | 7035 | 7035 |

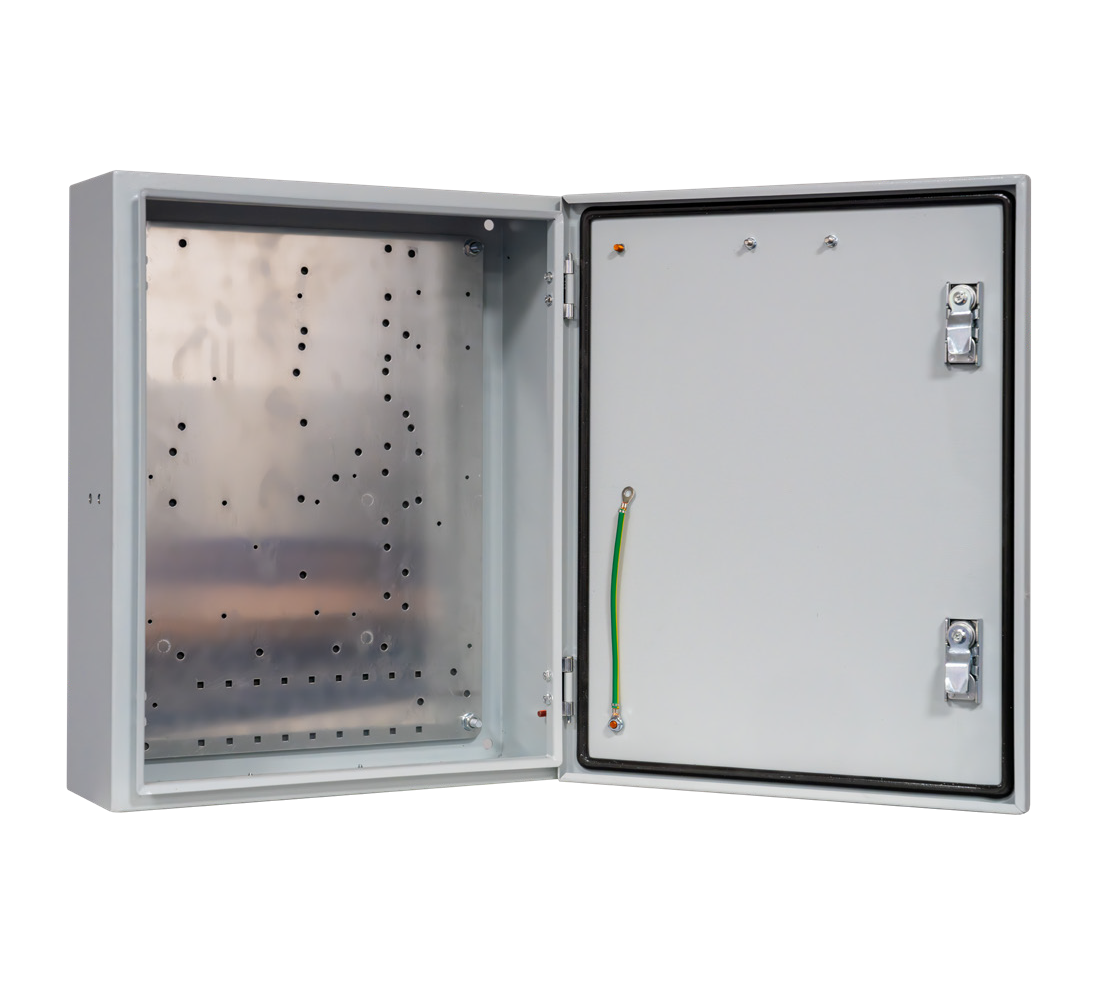

WALL MOUNTING ENCLOSURES
Fully welded metal enclosures with mounting plates for CAME Entrotec and CAME KMS door entry systems
Made from 1.5mm cold rolled galvanised steel
Folded lip/gutter to ensure effective door seal
The door can be reversed (For the position of the hinge, the default is on the left)
Fully welded construction
IP65 rating
RAL 7035 white powder coated
Door and enclosure box with ground screw
Glue coating process on door panel
4 x wall mounting brackets included
1242e Key for cabinet lock
Chassis plate
Removable gland plate at bottom of cabinet for cable gland entry
