Push to Exit Switches

The PTE is a self-resetting stainless steel button which triggers a door open when pressed. All of our push to exit buttons are double pole unless specifically requested.

PTE/EDR/OL

Push to Exit and Emergency Door Release (Dual Button) - Overlap Style

The dual button Push to Exit and Emergency Door Release features two double-pole switches in a vandal resistant, stainless-steel design. The ‘Push to Exit’ push button allows normal egress through communal doors and egress routes. The ‘Emergency Door Release’ button provides an additional fail-safe for egress from communal areas as part of the emergency egress route.

Each switch provides a momentary ‘Double Pole, Double Throw’ action with one pole to request a timed lock release and a separate pole connected in series with fail-safe locks (if fitted) to remove power from the lock.

The specification and installation of door release and emergency exit devices on communal doors must be in full compliance with the relevant Building Regulations and achieve final ‘sign-off’ by local Building Control or Approved Inspector if required. The specification is dependent on the application and security level required and should align fully with any fire evacuation policies.

PTE/YR

Push to Exit with Yellow Ring 1 Gang Overlap

The Push to Exit features a double-pole switch in a vandal resistant, stainless-steel design. The push button allows normal egress through communal doors and egress routes.

The switch provides a momentary ‘Double Pole, Double Throw’ action with one pole to request a timed lock release and a separate pole connected in series with fail-safe locks (if fitted) to remove power from the lock. The front plate is engraved ‘PUSH TO EXIT’ in 6mm green characters.

The specification and installation of door release and emergency exit devices on communal doors must be in full compliance with the relevant Building Regulations and achieve final ‘sign-off’ by local Building Control or Approved Inspector if required. The specification is dependent on the application and security level required and should align fully with any fire evacuation policies.

PTE/EPTE/YR

Push to Exit with Yellow Ring 1 Gang Overlap

The Push to Exit features a double-pole switch in a vandal resistant, stainless-steel design. The push button allows normal egress through communal doors and egress routes. The switch can be pressed and held for additional fail-safe operation.

The switch provides a momentary ‘Double Pole, Double Throw’ action with one pole to request a timed lock release and a separate pole connected in series with fail-safe locks (if fitted) to remove power from the lock. The front plate is engraved ‘PUSH TO EXIT’ in 6mm green characters and ‘In emergency press and hold exit button while opening door’ in 5mm red characters.

The specification and installation of door release and emergency exit devices on communal doors must be in full compliance with the relevant Building Regulations and achieve final ‘sign-off’ by local Building Control or Approved Inspector if required. The specification is dependent on the application and security level required and should align fully with any fire evacuation policies.

PTE/EPTE/LED

Push to Exit with LED Illuminated Ring - 1 Gang Overlap

The Push to Exit features a double-pole switch in a vandal resistant, stainless-steel design. The push button allows normal egress through communal doors and egress routes. The switch can be pressed and held for additional fail-safe operation. The illuminated bi-colour LED ring can be configured to indicate lock status (e.g. red for locked, green for unlocked).

The switch provides a momentary ‘Double Pole, Double Throw’ action with one pole to request a timed lock release and a separate pole connected in series with fail-safe locks (if fitted) to remove power from the lock. The front plate is engraved ‘PUSH TO EXIT’ in 6mm green characters and ‘In emergency press and hold exit button while opening door’ in 5mm red characters.

The specification and installation of door release and emergency exit devices on communal doors must be in full compliance with the relevant Building Regulations and achieve final ‘sign-off’ by local Building Control or Approved Inspector if required. The specification is dependent

PTE/EDR/SM

Push to Exit and Emergency Door Release (Dual Button) - Surface Mount

The dual button Push to Exit and Emergency Door Release features two double-pole switches in a vandal resistant, stainless-steel design. The ‘Push to Exit’ push button allows normal egress through communal doors and egress routes. The ‘Emergency Door Release’ button provides an additional fail-safe for egress from communal areas as part of the emergency egress route.

Each switch provides a momentary ‘Double Pole, Double Throw’ action with one pole to request a timed lock release and a separate pole connected in series with fail-safe locks (if fitted) to remove power from the lock.

The specification and installation of door release and emergency exit devices on communal doors must be in full compliance with the relevant Building Regulations and achieve final ‘sign-off’ by local Building Control or Approved Inspector if required. The specification is dependent on the application fitiand security level required and should align fully with any fire evacuation policies.

TECHNICAL DATA

	PTE/EDR/OL	PTE/YR	PTE/EPTE/YR	PTE/EPTE/LED	PTE/EDR/SM
Front Plate	Marine Grade Stainless-steel 316L	Stainless-steel 304 (Overlap Style)	Stainless-steel 304 (Overlap Style)	Stainless-steel 304 (Overlap Style)	Marine Grade Stainless-steel 316L
Front Plate Dimensions	155 x 155 x 2.5mm	86 x 86 x 1.5mm	86 x 86 x 1.5mm	86 x 86 x 1.5mm	114.5 x 114.5 x 2.5mm
Backbox	Galvanised Steel	1 Gang Electrical box, Galvanised Steel	1 Gang Electrical box, Galvanised Steel	1 Gang Electrical box, Galvanised Steel	Powder Coated Zintec Steel
Backbox Dimensions	115 x 115 x 65mm	75 x 75 x 47mm	75 x 75 x 47mm	75 x 75 x 47mm	118 x 118 x 65mm
Switch Configuration	2x Momentary Double Pole, Double Throw	1x Momentary Double Pole, Double Throw	1x Momentary Double Pole, Double Throw	1x Momentary Double Pole, Double Throw	2x Momentary Double Pole, Double Throw
Switch Construction	Stainless-steel, 20mm Actuator	Stainless-steel, 20mm Actuator	Stainless-steel, 20mm Actuator	Stainless-steel, 20mm Actuator with LED	Stainless-steel, 20mm Actuator
Switch Rating	5A, 250VAC	5A, 250VAC	5A, 250VAC	5A, 250VAC	5A, 250VAC
Connections	2 Wire-ends per Pole	2 Wire-ends per Pole	2 Wire-ends per Pole, 2 Wire-ends for LED	2 Wire-ends per Pole, 2 Wire-ends for LED	2 Wire-ends per Pole
Front Fixings	4x M4 Pin Hex Security Screws, Countersunk Head, Stainless-steel	2x M3.5 Pin Hex Security Screws, Raised Countersunk Head, Stainless-steel	2x M3.5 Pin Hex Security Screws, Raised Countersunk Head, Stainless-steel	2x M3.5 Pin Hex Security Screws, Raised Countersunk Head, Stainless-steel	4x M4 Pin Hex Security Screws, Countersunk Head, Stainless-steel

Accessories

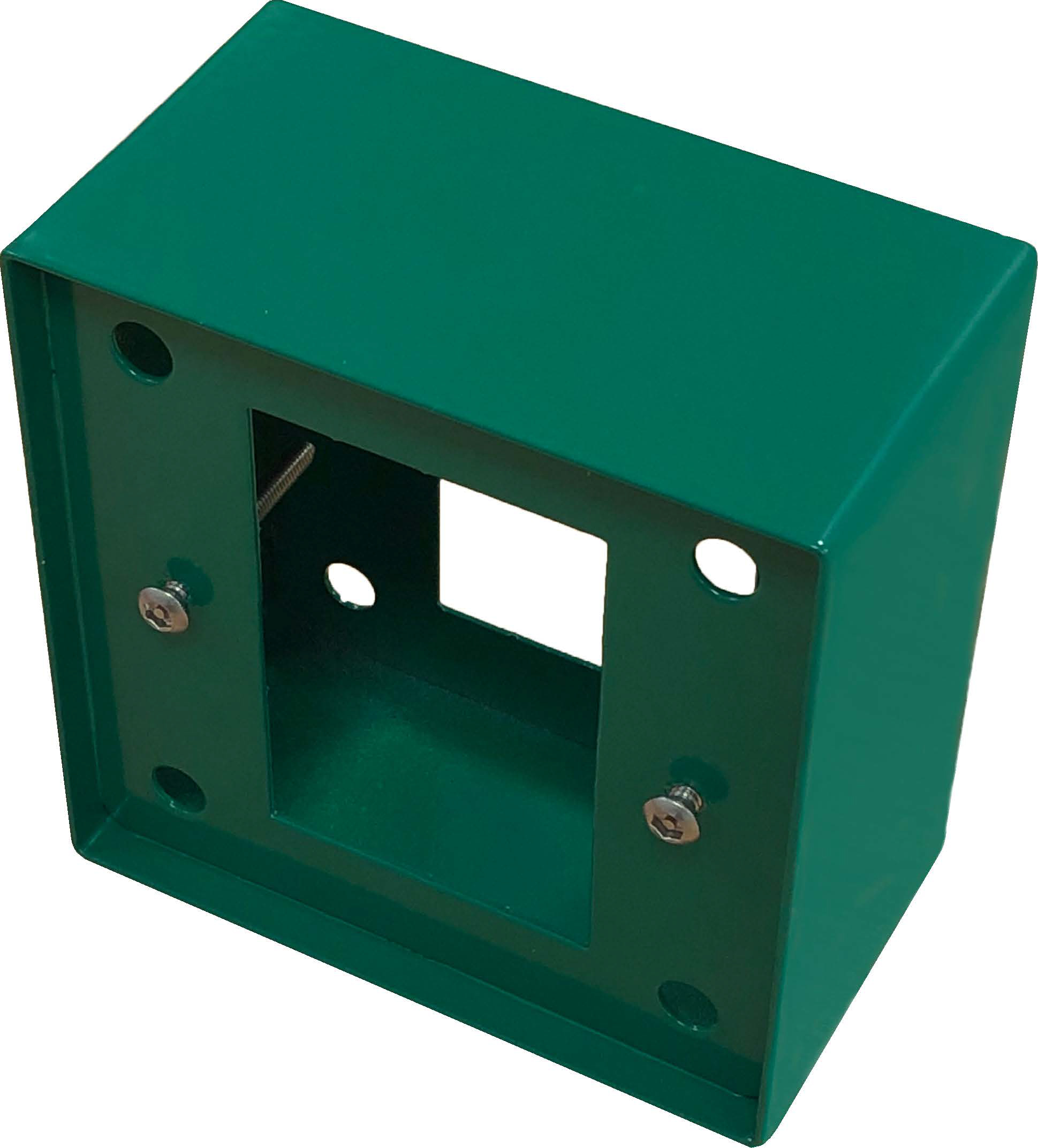

BBXPTESMPC

Green Powder Coated Surface Box
