OUR RANGE

EXPANSION MODULES

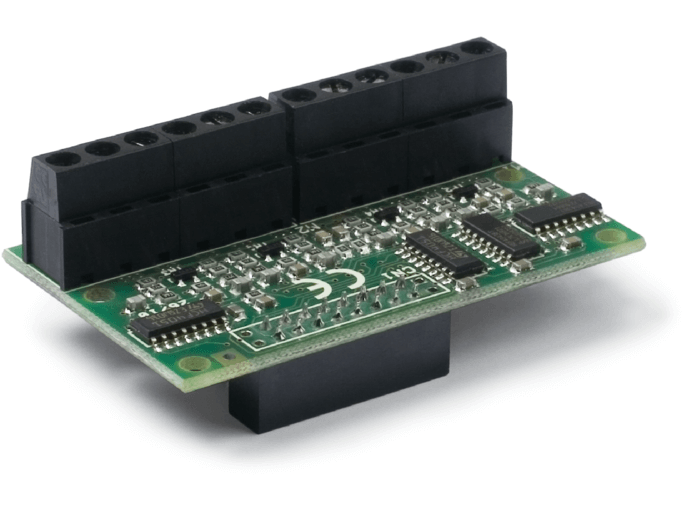

846NC-0010

Modulo di espansione 8 ingressi in centrale. Permette di ampliare il numero degli ingressi filo delle centrali PXC48, PXC96 e PXC200. Si innesta direttamente sulla scheda della centrale. Assorbimento 20 mA. Dimensioni 37 x 63 x 23 mm. Conformità normativa EN 50131 -3 GRADO 2 classe ambientale II.

Download FASCICOLO PX8I MULTIA4A A5 (IT, EN, FR, RU)
Download PX8I conformity declaration (CE)

    846NC-0020

    Expansion module - 8 inputs on bus. For expanding the number of hard-wired inputs of the PXC48, PXC96 and PXC200 control units. It can be connected to the control unit via the RS485 bus line. Current draw 40 mA. Dimensions 85.5 x 60 x 21 mm. Regulatory compliance: EN 50131-3 Grade 2 Environmental Class II. Supplied complete with plastic container.

    Download FASCICOLO PX8IR MULTI4A A4 (IT, EN, FR, RU)
    Download PX8IR conformity declaration (CE)

      846NC-0030

      Expansion module with 8 inputs (4 are relays, 4 are O.C.) over bus line. It is for expanding the number of outputs of the PXC48, PXC96 and PXC200 control units. It can be connected to the control unit via the RS485 bus line. Current draw 40 mA. Dimensions 85.5 x 60 x 21 mm. Compliance with EN 50131-3 Grade 2 Environmental Class II. Supplied complete with plastic container.

      Download FASCICOLO PX8OR MULTI4A A4 (IT, EN, FR, RU)

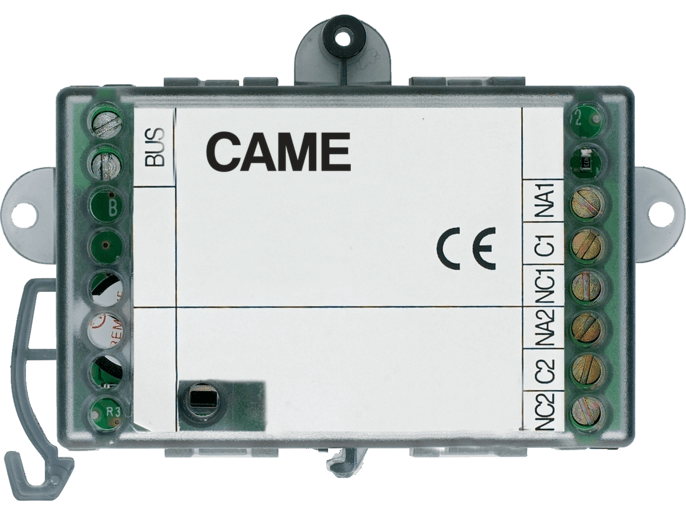

        846NC-0280

        Modulo di espansione 4 punti di connessione su bus. Permette di ampliare il numero degli ingressi/uscite filo delle centrali PXC2-32, PXC2-64 e PXC2-212. Si collega alla centrale tramite la linea bus RS485. Assorbimento 20 mA. Dimensioni 86 x 60 x 21 mm. Conformità normativa EN 50131-3 GRADO 3 classe ambientale II. Fornito completo di contenitore plastico.

          ACCESSORIES FOR EXPANSION MODULES

          846XC-0010

          Copertura antiapertura e antistrappo per PX4IOR

          Download FASCICOLO EBTAM MULTI4A A4 (IT, EN, FR, RU)
