Specific solution for parking facilities and intensive duty cycles

  • Max. net clearance width (m)3,8
MODELS 803BB-0120
Protection rating (IP) 54
Power supply (V - 50/60 Hz) 100 AC ÷ 240 AC
Power supply to motor (V) 36 DC
Power (W) 270
Opening time at 90° (s) 1 ÷ 2
Duty/cycle (%) CONTINUOUS SERVICE
Operating temperature (°C) -20 ÷ +55 (-40 with item 803XA-0260)
RAL color 7043

OUR RANGE

Barriers with Brushless motor and built-in control panel

803BB-0120

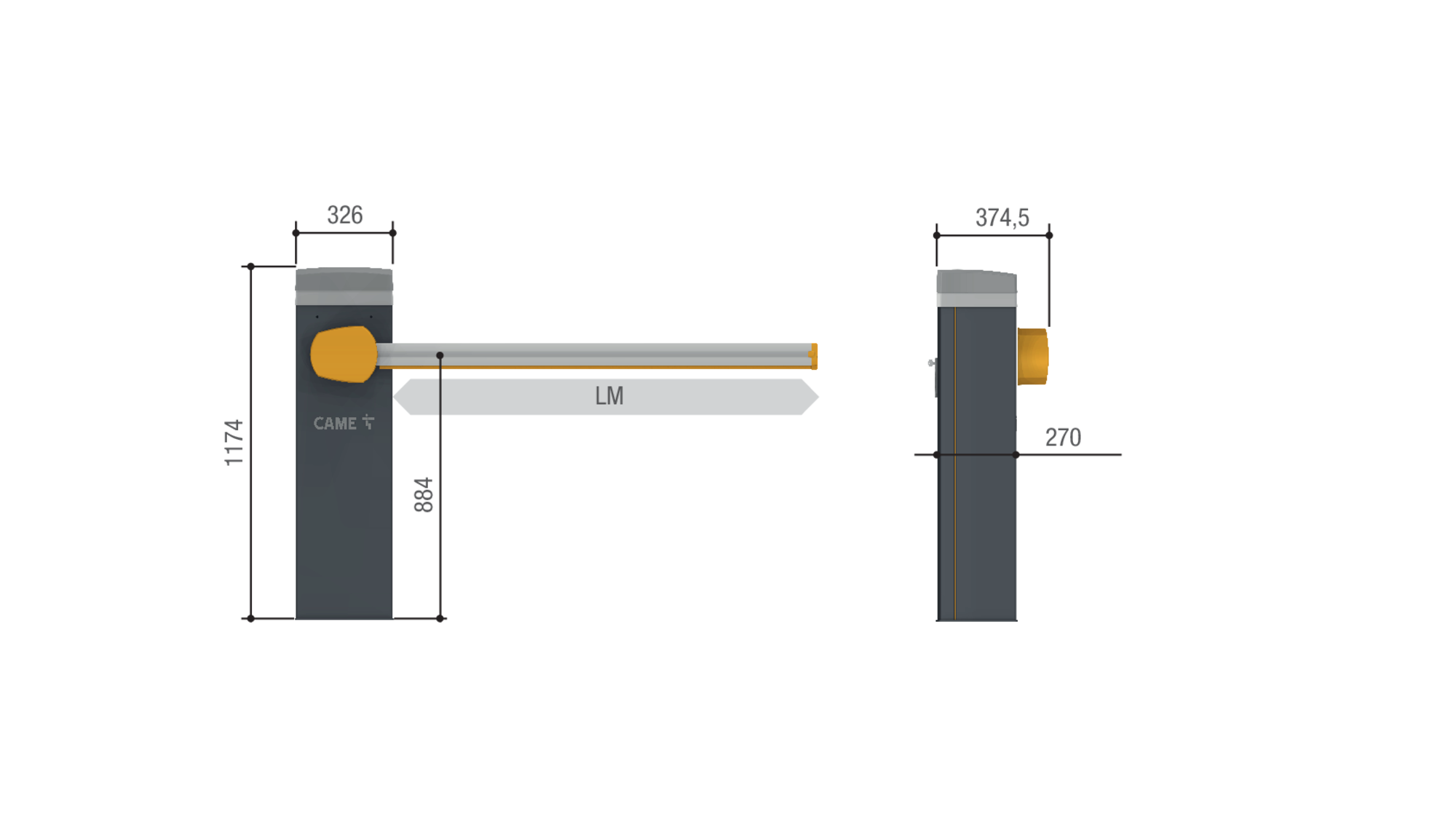

GPX40MGS - Automatic barrier with irreversible brushless operator; painted galvanized steel cabinet.

Download FASCICOLO GPX40MGS - GPX40MGP MULTI4A A4 (IT, EN, FR, RU)
Download GARD PX conformity declaration (CE)

Accessories for: 803BB-0120

002RSE

Interface card for controlling two operators or for enabling the Came Remote Protocol.

Download FASCICOLO RSE MULTI (IT, EN, FR, DE, ES, NL)
Download RSE conformity declaration (CE)

    001R700

    Control board for decoding and access-control management via transponder selector.

      001R800

      Control board for decoding and access-control management via keypad selectors.

      Download R800 conformity declaration (CE)

        Balancing springs

        001G02040

        Balancing spring Ø 40 mm.

          001G04060

          Balancing spring Ø 50 mm.

            001G06080

            Balancing spring Ø 55 mm.

              Accessories for: 803XA-0050 - 803XA-0051

              803XA-0020

              Red/green LED strips for booms up to 4-m long.

                803XA-0150

                Red/green LED strip for booms up to 3 m long.

                  803XA-0160

                  Red/green LED strip for jointed HD (Heavy Duty) boom up to 2 m long.

                    803XA-0190

                    LED strips connection kit for HD jointed booms (Heavy Duty).

                      Accessories

                      806SA-0100

                      Control card kit for operating during power outages and for recharging batteries, with battery housing.
