Specific solution for access points with heavy traffic

  • Max. net clearance width (m)5
MODELS G5000
Protection rating (IP) 54
Power supply (V - 50/60 Hz) 230 AC
Power supply to motor (V) 24 DC
Power (W) 300
Opening time at 90° (s) 4 ÷ 8
Duty/cycle (%) HEAVY-DUTY SERVICE
Operating temperature (°C) -20 ÷ +55
RAL color 7043

OUR RANGE

Barriers with 24 V DC gearmotor and built-in control panel

001G5000

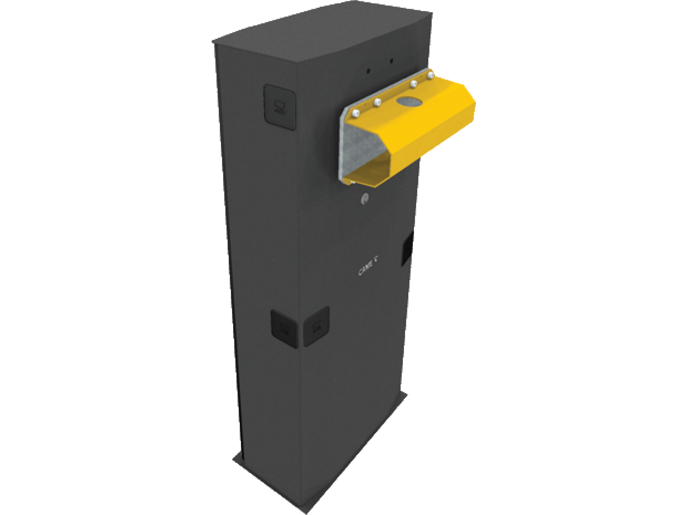

Barrier with encoder made of galvanized painted steel ready to fit accessories. The barrier includes balancing springs (two item 001G04060).

Download FASCICOLO G5000 MULTI4 A4 (IT, EN, FR, RU)
Download GARD 5000 conformity declaration (CE)
Download GARD 5000 conformity declaration (CE ROHS)

Accessories for: 001G5000

001G0502

White painted aluminum tube-section boom.

    001G05350

    White painted aluminum tube-section boom with rubber groove-covering profile. Ø 100 mm, boom length: 5.35 m.

      002RSE

      Interface card for controlling two operators or for enabling the Came Remote Protocol.

      Download FASCICOLO RSE MULTI (IT, EN, FR, DE, ES, NL)
      Download RSE conformity declaration (CE)

        001R800

        Control board for decoding and access-control management via keypad selectors.

        Download R800 conformity declaration (CE)

          001R700

          Control board for decoding and access-control management via transponder selector.

            001PSRT01

            Heater kit with thermostat.

            Download FASCICOLO PSRT01 MULTI4A A3 (IT, EN, FR, RU)

              Accessories for: 001G05350

              001G028402

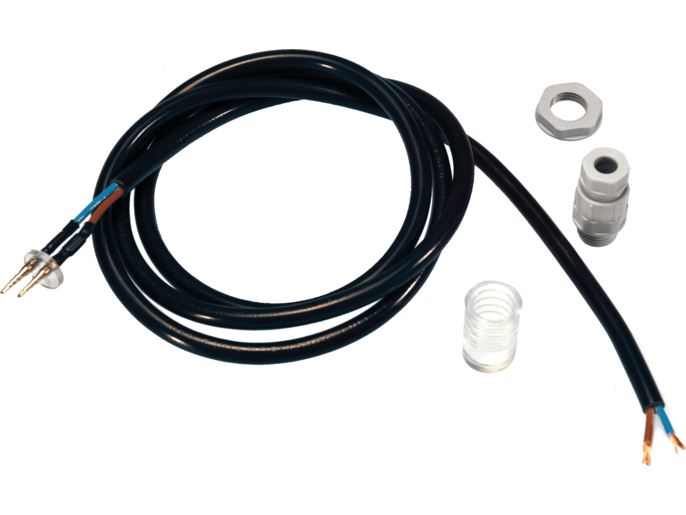

              Cable for connecting the luminous cord.

              Download FASCICOLO G028402 MULTI4A A4 (IT,EN, FR, RU)

                Accessories for: 001G0502 - 001G05350

                001G0468

                Brace for fitting DLX photocells onto the cabinet.

                  001G04601

                  Adapter for fitting the KIARO-series flashing light; requires the KIAROS base).

                    001G0465

                    Painted aluminum skirt (modules L = 2 m).

                    Download FASCICOLO G0465 MULTI00 A6

                      001G02807

                      Fixed rest.

                      Download FASCICOLO G02807 MULTI (IT, EN, FR, DE, ES, NL, PT, PL, RU)

                        001G02808

                        Swing rest.

                        Download FASCICOLO G02808 MULTI (IT, EN, FR, DE, ES, NL, PT, PL, RU)

                          001G02809

                          Package of 20 red, reflective, adhesive strips.

                            24 V accessories for: 001G5000

                            002LB39

                            Circuit board for emergency operation and battery charging.

                            Download FASCICOLO LB39 MULTI4A A3R (IT, EN, FR, RU)
                            Download LB39 conformity declaration (CE)
                            Download LB39 LBEM40 conformity declaration (CE ROHS)
